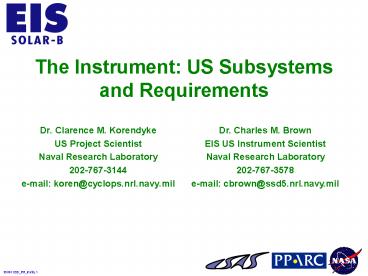

The Instrument US Subsystems and Requirements
  • Dr. Clarence M. Korendyke
  • US Project Scientist
  • Naval Research Laboratory
  • 202-767-3144
  • e-mail koren_at_cyclops.nrl.navy.mil

Dr. Charles M. Brown EIS US Instrument
Scientist Naval Research Laboratory 202-767-3578 e
-mail cbrown_at_ssd5.nrl.navy.mil
2
EIS Optical-Mechanical Layout
Plan View
Elevation
3
MIR/SLA/GRA Electrical Interfaces
4
Lifecycle Requirements
5
Articulated Telescope Mirror (MIR) Requirements
  • Mount the Optic With Minimal Distortion Over the
    Applicable Temperature Range
  • Tilt the Optic to Move the Solar Image (4)
    Perpendicular to the Slit
  • Sense the Relative Position of the Optic Tilt
    With lt1 Arcsec Accuracy
  • Translate the Optic 8 mm Perpendicular to the
    Optical Axis
  • Sense the Position of the Optic to lt20 Microns

6
MIR Hardware Description/Summary
Linear Ball Slide
Flexpivot
Translation Motor and Drive Assy
Mirror
PZT
7
Focussing Grating (GRA) Requirements
  • The GRA Shall Mount the Grating With Minimal
    Distortion Over the Operational Temperature Range
  • The GRA Shall Provide a Focussing Capability of
    1 cm to Permit Adjustment of the Spectrometer
    Focus
  • The EIS Grating Will Be Bonded Into a Cell
    Mounted Onto a Crossed Roller Slide Translation
    Stage
  • Translation Stage Will Be Driven With a Geared
    Stepper Motor and Ball Screw Combination. The
    Mechanism Will Be Operated in Open Loop Mode. The
    Position Will Be Sensed With Optical Encoders

8
GRA Hardware Description/Summary
Grating
Motor and Ball Screw Assy
Crossed Roller Bearing Slide
9
Slit Assembly (SLA) Requirements
  • The SLA Shall Support the Shutter Assembly
  • The SLA Shall Be Able to Position the
    Spectrometer Slits and Slots to Be Reproducible
    in the Telescope Focal Plane
  • The Spectrometer Slits Shall Be Reproducibly
    Positioned to lt2 Microns Perpendicular to the
    Optical Axis and lt26 Microns Along the Optical
    Axis. A Performance Goal for the Mechanism Will
    Be lt1 and lt13 Microns, Respectively
  • Positioning Will Be Accomplished Using a Geared
    Stepper Motor With the Direction of Motion Along
    the Optical Axis

10
Slit Assembly (SLA) Requirements (Continued)
  • The Load Position Will Be Sensed Utilizing a
    Shaft Resolver
  • The Present Optical Design Does Not Permit the
    Resolver to Be Directly Attached to the End of
    the Shaft, and the Resolver Is Instead Coupled to
    the Output Shaft With Anti-backlash Gearing This
    Approach Should Suffice to Meet Specified Goals.
    The Backlash Inherent in the System Is Expected
    to Be 3 Arcminutes With a 15 Arcminute Step
    Size. This Corresponds to an Uncertainty of 10
    Microns in the Position of the Slit Along the
    Optical Axis With a 50 Micron Step Size
  • The Resolver Will Have an Absolute Accuracy of
    lt15 Arcminutes Sufficient to Discriminate Between
    Individual Steps

11
SLA Hardware Description/Summary
Shutter Motor and Encoder
Shutter
Slit Paddle Wheel
Slit Motor and Encoder
12
Shutter Mechanism Requirements
  • The SLA Shall Include the EIS Instrument Shutter
  • The Shutter Shall Be Able to Take a 50 ms
    Exposure
  • lt5 Photometric Error Over the Slit for These
    Short Exposures

13
Shutter Assembly Hardware Description/Summary
14
Requirements for the Filter Clamshell
  • Vacuum Tight Enclosure
  • P lt1 Torr for Launch TBD 140 dB Acoustic Loads
    Expected
  • Hold Time gt1 Week TBD
  • Reliable Calibrated Internal Pressure Sensor
  • Clean
  • Minimal Central Obstruction
  • Pumpout/Backfill Valve With Filter and Throttle
  • No Pressure Differential Allowed Front/Back (Air
    Passages)
  • Sunshade for Filter Frame
  • No Shock on Opening
  • Vacuum Harness for Pre-Launch Ops

15
Front Filter Assembly (FFA) Requirements
  • A FFA Shall Be Provided to Block Heat and Visible
    Light From the EIS Instrument
  • The FFA Shall Also Serve As a Bandpass Filter for
    the EUV Range of Interest
  • The Filter Will Consist of a 1500 Ã… Thick
    Aluminum Film Mounted on a Nickel Mesh. The
    Aluminum May Be Coated With a Few Ã… of Carbon to
    Reduce Oxidation and to Improve Rejection of
    Light in Unwanted Solar Lines
  • The FFA Will Provide a 1 Transmittance
    Uniformity
  • The FFA Shall Be Compatible With Ultra High
    Vacuum (UHV), and It Shall Provide the Necessary
    Mechanical Strength, and the Capability to
    Withstand Torr-Level Pressure Differentials

16
Front Filter Assembly (FFA) Requirements
(Continued)
  • The Front Filter Will Be a 200 mm Clear Aperture
    Diameter and It Will Be Segmented Into Four
    Quadrants, Each Separately Replaceable
  • A Lightweight Aluminum Frame Shall Support the
    Mesh
  • A Clamping Frame Shall Secure the Filters to the
    Clamshell Assembly. The Frames Will Be Designed
    to Minimize the Central Obstruction

17
Requirements for the Al Filters
  • For the Entrance Filter
  • lt1500 Ã… Al on Ni Mesh (gt80 Open)
  • ? lt0.1
  • T gt30 _at_ 304 Ã…
  • T lt5 X 10-5 for Visible IR
  • 20 cm Clear Aperture, in Quadrants
  • For the Spectrometer Entrance Filter
  • lt1500 Ã… Al on Ni Mesh (gt80 Open)
  • T gt30 _at_ 304 Ã…
  • T lt 5 X 10-7 for Visible IR
  • 0.5 cm X 1.5 cm Rectangular

18
FFA Hardware Description/Summary
Quadrant of Trace Entrance Filter
19
Spectrometer Entrance Filter (SEF) Requirements
  • A Small Diameter Aluminum Filter Shall Be
    Provided to Mount Behind the EIS Spectrometer
    Slit
  • The SEF Shall Provide Additional Reduction of the
    Visible Light Within the Spectrometer, Especially
    in the Event That the FFA Degrades Due to Orbital
    Debris and Micrometeorites
  • The SEF Shall Have a Clear Aperture of 20 mm. It
    Shall Be Placed Near the Slit, but Far Enough
    Away (gt8 mm) That the Mesh Will Be Totally Out of
    Focus at the Detector
  • Table 3-6 of the EIS Subsystems and Components
    Contract End Item Specification, EIS_Comp_Spec,
    Lists the Required Filter Properties

20
SEF Hardware Description/Summary
Luxel TF Aerospace Al filter
21
EIS Instrument Classification Mission
Classification
Recommended Guidelines for EIS Instrument
Components
22
Mission Analysis Approach
Independent Agent
Tailored to Meet Guidelines of EIS Instrument
Component Contract End Item (CEI) Specification
Recommended Approach for EIS Instrument Components
23
Safety, Reliability, and Quality Assurance
(SRQA) Requirements
  • SRQA and Verification Compliance Matrix (VCM)
    Requirements Defined in EIS Instrument Component
    CEI Specification (EIS_comp_spec)
  • Configuration Management Plan uses MSFC MPG
    8040.1Guidelines for Flight Models (DRD
    874CM-001)
  • Contamination Control Implementation Plan in
    Consonance with UKs EIS Instrument Requirements
    (DRD 872MP-001)
  • Product Assurance Program for Flight Models Meets
    ISO 9000 Guidelines (DRD 872QE-001)
  • Includes Preliminary/Final Hazard Analysis Inputs
    to UKs EIS Instrument Safety Plan
  • Includes Reliability Assurance and
    Parts/Materials/Processes Approach
  • Verification Plan Defines Verification Approach,
    Structure, and Description (DRD 872VR-001)

24
Other Factors
  • Parts, Materials, and Processes (PMP) Selected to
    Assure Maximum Reliability and Performance in
    Space Environments
  • Vacuum Stability via Total Mass Loss (TML) of
    gt1.0 and Volatile Condensable Material (VCM) of
    gt0.1 Per NRP-1124
  • Traceability Achieved by Categorizing EEE Parts
    Into Sets Groups and Tracing Parts Through
    Fabrication, Assembly, Test, and Delivery
  • Electrostatic Discharge (ESD) Control According
    to Processes Implementing MIL-STD-1686 Guidelines
  • Closed-Loop Failure Reporting and Corrective
    Action System (FRACAS) for Failures Occurring
    During the Flight Model Acceptance Testing Phases
  • Deliverable Shipping Container Compatible With
    the Anticipated Transportation Environmentals
  • Documentation Uses Established Practices for
    Spaceflight Equipment
  • Deliverable As-built Engineering Drawings for
    Flight Models
  • Schematics, Assembly Drawings, Parts Lists, Test
    Procedures/Reports, and Calibration Data

25
Project Planning and Control (1 of 3)
  • During Phase B, the Following Management Tools
    (Delivery Dates) Will Be Developed to Allow
    Adequate Definition of the Hardware, Services,
    Materials, Subcontracts and Other Services of the
    Project
  • Configuration Management Plan (31 December 1999)
  • EIS Component Specification Contract End Item
    (Updates A/R Under Configuration Management)
  • Preliminary Design Review Package (15 February
    2000)
  • Interface Control Documents (15 February 2000)
  • Project Management Plan (31 December 1999)
  • Monthly Progress Reports (Monthly)

26
Project Planning and Control (2 of 3)
  • Phase B Management Tools Continued
  • Financial Management Reports (Monthly)
  • Work Breakdown Structure and Dictionary (30
    November 1999)
  • Risk Management Plan (31 December 1999)
  • Contamination Control and Implementation Plan (15
    February 2000)
  • Product Assurance Plan (31 December 1999)
  • System Error Budget (15 February 2000)
  • Verification Plan (31 December 1999)

27
Project Planning and Control (3 of 3)
  • During Phase C/D, the Following Management Tools
    (Delivery Dates) Will Be Developed to Allow
    Adequate Definition of the Hardware, Services,
    Materials, Subcontracts and Other Services of the
    Project
  • All Management Tools Developed Under Phase B
    Shall Be Updated As Necessary
  • Critical Design Review Package (15 February 2001)
  • Pre-Environmental Review Package (15 February
    2002)
  • Flight Readiness Review Package (15 September
    2002)
  • Verification Test Report (15 September 2002)

28
Product Assurance
  • EIS Instrument Component Product Assurance
    Guidelines Shall Be Defined in the Product
    Assurance Plan Submitted During Phase B
  • The Product Assurance Plan Shall Address
  • Safety Implementation of Industrial and System
    Safety Throughout the Project Lifecycle
  • Quality Implementation of All Elements of the
    Quality Assurance Program Throughout the
    Lifecycle of the Project
  • Reliability Definition of the Procedures and
    Controls for Implementing the Programmatic
    Reliability and Maintainability Requirements

29
EIS Instrument Component Work Breakdown Structure
(WBS)
30
EIS Instrument Component Schedule Summary
