Title: Toxicity and Field Testing Apparatus


1

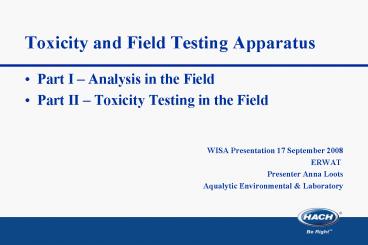

Toxicity and Field Testing Apparatus
  • Part I Analysis in the Field
  • Part II Toxicity Testing in the Field
  • WISA Presentation 17 September 2008
  • ERWAT
  • Presenter Anna Loots
  • Aqualytic Environmental Laboratory

2
SA Bill of Rights
  • 24. EnvironmentEveryone has the right-
  • to an environment that is not harmful to their
    health or well-being and
  • to have the environment protected, for the
    benefit of present and future generations,
    through reasonable legislative and other measures
    that-
  • prevent pollution and ecological degradation
  • promote conservation and
  • secure ecologically sustainable development and
    use of natural resources while promoting
    justifiable economic and social development.

3
(No Transcript)
4
Part I Analysis in the Field
5
Reason for Testing
  • At any given time we want to know that our water
    environment is safe.
  • And if not, to something about it as soon as
    possible

6
Testing Scenarios
  • Using your own or your employers laboratory
  • Using a contract laboratory
  • On-site field testing
  • Portable Systems
  • Simultaneous Measurement of Multiple Water
    Quality Parameters

7
Testing Scenarios
  • Own Laboratory
  • Results available within a short time
    relatively
  • Action may be taken within a short time -
    relatively

8
Testing Scenarios
  • Private Laboratory
  • No guarantees re. transport conditions
  • Results available much later
  • Resulting in delays in actions to be taken

9
Testing Scenarios
  • On-site field Testing
  • Results available in real time
  • Allows for immediate remediation

10
Examples of Field Systems
11
DREL/2800 Complete Water Quality Laboratory
12
DREL/2800 Complete Water Quality Laboratory
  • DR/2800 Spectrophotometer and Examples of
    Reagents

13
DREL/2800 Complete Water Quality Laboratory
  • Examples of Analytical Standards

14
DREL/2800 Complete Water Quality Laboratory
  • Powder Pillows
  • Bar-coded TestnTube

15
DREL/2800 Complete Water Quality Laboratory
  • 2100P Portable Turbidimeter sensION Multi-meter

16
DREL/2800 Complete Water Quality Laboratory
  • Example - Robust pH Electrode

17
Combination pH/EC/TDS/Temperature/DO Meter
  • HQ40d

18
Combination pH/EC/TDS/Temperature/DO Meter
  • Example of a Rugged Probe

19
Micro Field Testing
  • Coliform Laboratory
  • P/A laboratory with Colorimeter

20
Multi -Parameter Field Analysers
  • pH
  • ORP
  • EC
  • Turbidity
  • Depth
  • Vented Level
  • Salinity

21
Multi -Parameter Field Analyser
22
Multi -Parameter Field Analyser
23
Multi -Parameter Field Analyser
  • Advanced Remote Operation
  • Data-logging
  • Telecommunication Technology provides access
    anywhere in the world
  • Additional Parameters
  • Chlorophyl A
  • Blue-green Alagae
  • TDG
  • Rhodamine
  • PAR
  • Temperature
  • Ion Selective Analysis

24
  • Part II Toxicity Testing in the Field

25
Principles/Definitions of Toxicity Testing
  • Toxicity tests are standard laboratory tests
    with test organism species representative of
    different trophic levels.
  • chain of production to consumption
  • Methods used prescribed by national and
    international organisations, such as US EPA, OECD
    and ISO.

26
Principles/Definitions of Toxicity Testing
  • Evaluate hazard resulting from combined impact of
    all pollutants present.Qualitative and
    quantitative comparison of indigenous fauna and
    flora in aquatic environment
  • Limited to specific space and time.

27
Types of Toxicity Assays
  • Acute Lethality (screening) test
  • EC50 (definitive) Test (Effective concentration
    of a test substance that will cause a 50
    mortality in test organism population)

28
Example of a Bacterial Toxicity Screening Test
Introduction of analyte
Test organism
Exposure
  • Very 50
    No light
    inhibition
  • toxic -
    inhibition (EC50) Non toxic
    sample
  • Reading inhibition

29
Available Systems
  • Bioluminescent Bacteria Test
  • Test Organism Vibrio fischeri NRRL B-11177 a
    light producing marine organism.
  • Toxicity is determined by measuring light
    inhibition by means of a luminometer
  • Duration 2 hours from start to finish
  • ISO11348-3 1998 EC50
  • EN ISO 11348 Flash Test for Sediment Samples
  • The ToxTrak Toxicity Test
  • Pre-prepared organism in reagent sets
  • Toxicity is determined colorimetrically as a
    result of the reduction of resazurin color
    change blue to pink
  • Colorimetric test.
  • Reagent set may be used with either a
    spectrophotometer or colorimeter.
  • Duration lt 2hours
  • ETV verification 1993
