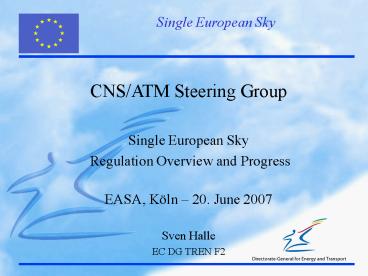

CNS/ATM Steering Group

1
CNS/ATM Steering Group Single European Sky
Regulation Overview and Progress EASA, Köln
20. June 2007 Sven Halle EC DG TREN F2
2
Background

• 20 April 2004 Entry into force of 4 Regulations
  of the European Parliament and the Council
• No 549/2004 Framework
• No 550/2004 Service Provision
• No 551/2004 Airspace
• No 552/2004 Interoperability
• Publication in the Official Journal of the
  European Union in
• edition L 96 of 31 March 2004,
• http//europa.eu.int/eur-lex/en/archive/2004/l_096
  20040331en.html

3
Interoperability

• Objective and scope
• Interoperability means a set of functional,
  technical an operational properties required of
  the ATM systems in order to enable its safe,
  seamless and efficient operation
• Interoperability between the different systems,
  their constituents and associated procedures of
  the European ATM network
• Coordinated introduction of new agreed and
  validated concepts of operations or technology

4
Interoperability

• Different tools
• Essential Requirements (ER)
• Implementing Rules (IR)
• Community Specifications (CS)
• Conformity Assessment

5
Interoperability

• Essential requirements
• Seamless operation,
• Safety,
• Civil-military coordination,
• Support of new concepts of operation,
• Environmental constraints,
• Principles governing the logical architecture,
• Principles governing the construction of systems.
• Essential requirements are compulsory,
• reference Annex 2 of the interoperability
  regulation

6
Interoperability

• Implementing rules
• Can be developed by Eurocontrol in conformity
  with the mandate issued by the EC
• Shall determine any specific requirement that
  complements or refine the Essential Requirements,
• Shall also describe the coordinated introduction
  of new, agreed and validated concepts of
  operation or technology,
• Shall specify the conditions of implementation
  (including dates),
• Shall be adopted by the Single Sky Committee
  (SSC), published in the Official Journal and are
  for interoperability also compulsory.

7
Interoperability

• Community Specifications
• Are possible means of compliance and will be
  mandated by the EC being either
• European standards
• (drawn up by European Standardisation
  Organisations CEN/CENELEC/ETSI in cooperation
  with EUROCAE)
• Eurocontrol specifications
• (for operational coordination purposes)
• Systems, procedures and constituents which meet
  Community Specifications are presumed to be
  compliant with mandatory rules

8
Content of Community Specifications

• Depending on the CS development mandate,
  Community Specifications can contain the
  following elements
• Technical part
• Operational part
• Procedural part
• Certification and/or Institutional part
• Maintenance and Operation part
• Implementation guidance material
• Compliance matrix (Annex SA) referring to the
  applicable requirements in terms of (Essential
  Requirements and/or Implementing Rules)

9
Community Specification Development Process
Industry Consultation Body ICB
ATMSCG Air Traffic Management Standards
Coordination Group CEN - CENELEC - ETSI - EUROCAE
- EUROCONTROL - EASA - EC/EFTA
ICB Interoperability Sub Group
Interoperability Regulation 552/04 Article 4.1.a
European standards for systems or constituents,
together with the relevant provisions, drawn up
by European Standardisation bodies in cooperation
with EUROCAE
Interoperability Regulation 552/04 Article 4.1.b
Specifications drawn up by Eurocontrol on
matters of operational coordination between Air
Navigation Service Providers
Presentation to COMMITTEE ON STANDARDS
AND TECHNICAL REGULATIONS (98/34 COMMITTEE) and
mandate in accordance with Standardisation Directi
ve 98/34
European Commission requests Eurocontrol to draw
up specifications following the Single Sky
Committee (SSC) advisory procedure in accordance
with Framework Regulation 549/04
European Standardisation Organisation development
(drafting and consultation) of European standards
(Community Specification) and European
Standardisation Organisation EN approval process
(including publication)
Development of Community Specifications within
the Eurocontrol regulatory framework
After the SSC advisory procedure, European
Commission publishes references to Eurocontrol
specifications in the Official Journal of the
European Union
European Commission publishes references to
European Standards in the Official Journal of the
European Union
10
Community Specification Process Overview
SESAR - MASTERPLAN
ICB Interoperability SG
European Commission
ICAO Global ATM Concept Industry Roadmap
ICB
RTCA (EASTCAE) ARINC (AEEC) Global
Interoprability
NATO STANAG Civil Military Interoperability
Single Sky Committee
98/34 Committee
DG TREN
DG ENTR
ATMSCG
Standardisation Mandate
Specification Request
EUROCONTROL
ETSI
CENELEC
CEN
Air Traffic Management
TG25 Aeronautics
TF191 Air Traffic Management
Mandate Group Programme
As a means of compliance with SES
regulation (ERs and IRs)
Task Forces
Task Forces
Task Forces
EUROCAE
WG x1
WG x2
Industry ATM ANSPs Industy Avionics Eurocontrol Ai
rspace Users
WG x3
WG x4
WG xn
11
CS work programme Prio 1

• ICB Interoperability Sub Group in proposed CS
  prioritisation and ICB/10 (Feb.06) in
  coordination with ATMSCG agreed that work should
  start on the Prio1 CSs
• Single Sky Committee (Jun.06) requested
  Eurocontrol to develop the first set of CS
  (Initial Flight Plan, OLDI, ADEX-P), Eurocontrol
  accepted the mandate and initial plans have been
  returned to EC in Nov.06
• 98/34 Committee (Jul.06) agreed upon and send out
  mandate M/390 (SWAL, A-CDM, A-SMGCS, FDP
  Interoperability ATC) to ESOs, which CEN ETSI
  accepted
• Single Sky Committee (Sep.06) requested
  Eurocontrol to develop CS on Flexible Use of
  Airspace, Eurocontrol accepted the mandate, work
  started early 2007

12
CS work programme Prio 1

• Initial ATM mandate M/354 has been withdrawn by
  DG ENTR (following written consulation of 98/34
  Committee in Nov.06) aligning now the new DG TREN
  standardisation development process
• SSC (Dec.06) adopted IR on Flight Message
  Transfer Protocol (FMTP) with a new approach to
  have now a CS covering the core technical part,
  Eurocontrol has started to transform the FMTP CS
  part

13
CS work programme Prio 2

• Discussions (ICB Interoperability Sub Group
  ATMSCG) on the Priority 2 Community
  Specifications started in Sep. 2006
• Clarification activities have been initiated on 4
  CSs (AMAN/DMAN, Airport ATS use of MET Data,
  MET Information Exchange) in Dec.06, Study
  results End 2007
• 98/34 Committee (Mar.07) agreed upon and send out
  mandate M/408 (GBAS Cat 1, APV) to ESOs in Apr.07
• 98/34 Committee agreed in written consultation
  process to send out mandate M/405 (Ground ATM
  equipment under the scope of RTTE
  Directive1999/5/EC) to ESOs in Apr.07
• Single Sky Committee (Apr.07) requested
  Eurocontrol to develop CS on AMHS (ATS Message
  Handling System)

14
CS work programme

• At least 14 CSs (Data Link, Surveillance,
  Aeronautical Informantion) are directly linked to
  the development of Implementing Rules.
  Considerable mandate package will be issued
  after IR adoption (from autumn 07 onwards)
• Coordination with the SESAR Masterplan (work
  package T2.6.2 for D3 Standardisation) started in
  Mar.07 and will be continued via the JU SESAR for
  the development phase

15

• Main aims/issues of SES Implementation are
• Reduction of Fragmentation within EATMN
• Establishment of a seamless environment
• Implementation of new technologies

• STANDARDISATION
• Is a key component in SES Interoperability
• Must be an industry driven process
• Needs to be done in a global scale
• Will be linked to the SESAR Masterplan

16
In case of any questions
Sven Halle European Commission DG TREN/F/2
Single European Sky Modernisation of ATC Mail
address DM24 05/69, B-1049
Bruxelles Phone ().32.2.298.00.70 Fax
().32.2.296.83.53 e-mail sven.halle_at_ec.euro
pa.eu
17
STANDARDISATION WORK PROGRAMME - Backup -
18
CS future work programme (as of Oct.06)

• General
• CS on Software Assurance Levels (SWAL) P1
• CS on Airport Collaborative Decision Making
  (A-CDM) P1
• CS on Cross Domain Information Sharing P3
• CS on Reference Concept of Operation (including
  long term) deleted
• CS on UAV Systems Operation P3
• CS on En-route and Airspace CDM P3
• Airspace Management
• CSs on Flexible use of Airspace P1
• CSs on Airspace Design P1 pending
• Air Trafffic Flow Management (ATFM)
• CS on European Air Traffic Flow Management
  (CFMU/IFPS (TACT and CADF, ETFMS)) P3 (IR)
• CS on updated IFPS Users manual P1
• CS on Data Exchange Formats P1
• CS on Advanced Data Exchange Formats P3

19
CS future work programme

• Air Traffic Service (ATS)
• CS on On-Line Data Interchange (OLDI) P1
• CSs on Interoperability of Flight Data Processing
  (ATC-ATC) P1
• CS on A-SMGCS (Level 1 2) P1
• CS on Link Baseline 1 DL Services over ATN/VDLM2
  in Continental Airspace P2
• CS on DL Services over FANS-1/A in ATN
  Continental Airspace P2
• CS on DL Services over ACARS in continental
  airspace P2
• CSs on Open ATC system architecture model P3
• CS on A-SMGCS (Levels 3 and higher) P3
• CS on arrival management P2 pending
• CS on departure management P2 pending
• CS on Surveillance Performance P2
• CSs on Interfaces between Controller Working
  Positions and Data Processing (flight and
  Surveillance Data) P3
• CSs on Interface with Flight Data Operator
  Positions P3

20
CS future work programme

• Air Traffic Service (ATS)
• CSs on Interfaces with Local centre sub-systems
  (Surveillance, Supervision, Recording and Data
  Analysis Systems Adaptation Database) P3
• CSs on Flight Plan Information Subscriber systems
  (for e.g. Airline Operators and Airports) P3
• CS on Interoperability of Flight Data Processing
  (Middleware ATM-ATM) P3
• CS on Surveillance Data Processing P4
• Communication
• CS on ATS Message Handling System (AMHS) P2
• CS on VoIP (ground-ground) for use in EATMN P3
• CS on telephone used for ATC purposes in the
  EATMN P2 R
• CS on Directory Service in support of AMHS P3
• CS on VoIP (including air-ground VoIP/Ethernet)
  for use in EATMN P3
• CSs on ground and mobile stations in the
  aeronautical mobile service (AM radio telephone
  installations) operating in range 117.975 137
  MHz P4 R
• CS on HF radio equipment P4
• CS on UHF for use by civil ATC P4 R

21
CS future work programme

• Navigation
• CS on Space Based Augmentation Systems P4
• CS on Galileo, GNSS P3
• CS on distance measuring ground equipment
  (DME) P3 R
• CS on ILS ground equipment P3 R
• CS on MLS P3 R
• CS on Ground Based Augmentation Systems (CAT
  II/III) P3
• CS on non-directional beacon (NDB) ground
  equipment P4 R
• CS on omni-directional radio range ground
  equipment (VOR, D-VOR) P4 R
• CS on VHF Marker Beacon ground equipment P4 R
• CS on Ground-Based Augmentation Systems (CAT I
  only) P4 R
• Surveillance
• CS on ground-based primary radar equipment for
  use in the EATMN P2
• CS on Multilateration Equipment for use in the
  EATMN P2
• CS on Surveillance Data Exchange P2

22
CS future work programme

• Surveillance
• CS on surveillance services using ADS-B P2
• CS on ADS-B equipment P2
• CS on ground-based secondary radar systems for
  use in the EATMN P2
• Aeronautical Information Service AIS
• CS on AIS - Generic data process Principles
  (incl. Data Quality Management) P2
• CS on Integrity of Aeronautical Information -
  Data Origination P2
• CS on Integrity of Aeronautical Information -
  Data Publication P2
• CS on Aeronautical Information Exchange
  (AIXM) P3
• Meteorological Informations
• CS on Systems and Procedures for the Use of
  Meteorological Information P2 pending
• CS on Meteorological Information Exchange (eg
  XML) P2 pending
• additional required / necessary CSs
• () means that the CS development is dependent on
  parallel development of a related IR
• ( R ) means that the CS development might be
  dependent on activities related to the RTTE
  directive
