Programmable Logic

1

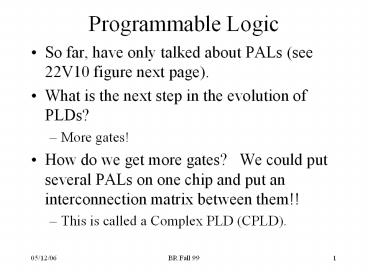

Programmable Logic

• So far, have only talked about PALs (see 22V10
  figure next page).
• What is the next step in the evolution of PLDs?
• More gates!
• How do we get more gates? We could put several
  PALs on one chip and put an interconnection
  matrix between them!!
• This is called a Complex PLD (CPLD).

2
22V10 PLD
3
Programmable interconnect matrix.
Cypress CPLD
Each logic block is similar to a 22V10.
4
(No Transcript)
5
Field Programmable Gate Arrays
The FPGA approach to arrange primitive logic
elements (logic cells) arrange in rows/columns
with programmable routing between them.

• What constitutes a primitive logic element? Lots
  of different choices can be made! Primitive
  element must be classified as a complete logic
  family.
• A primitive gate like a NAND gate
• A 2/1 mux (this happens to be a complete logic
  family)
• A Lookup table (I.e, 16x1 lookup table can
  implement any 4 input logic function).
• Often combine one of the above with a DFF to form
  the primitive logic element.

6
Other FPGA features

• Besides primitive logic elements and programmable
  routing, some FPGA families add other features
• Embedded memory
• Many hardware applications need memory for data
  storage. Many FPGAs include blocks of RAM for
  this purpose
• Dedicated logic for carry generation, or other
  arithmetic functions
• Phase locked loops for clock synchronization,
  division, multiplication.

7
Altera Flex 10K FPGA Family
8
Altera Flex 10K FPGA Family (cont)
9
Dedicated memory
10
16 x1 LUT
DFF
11
(No Transcript)
12
Emedded Array Block

• Memory block, Can be configured
• 256 x 8, 512 x 4, 1024 x 2, 2048 x 1

13
Issues in FPGA Technologies

• Complexity of Logic Element
• How many inputs/outputs for the logic element?
• Does the basic logic element contain a FF? What
  type?
• Interconnect
• How fast is it? Does it offer high speed paths
  that cross the chip? How many of these?
• Can I have on-chip tri-state busses?
• How routable is the design? If 95 of the logic
  elements are used, can I route the design?
• More routing means more routability, but less
  room for logic elements

14
Issues in FPGA Technologies (cont)

• Macro elements
• Are there SRAM blocks? Is the SRAM dual ported?
• Is there fast adder support (i.e. fast carry
  chains?)
• Is there fast logic support (i.e. cascade chains)
• What other types of macro blocks are available
  (fast decoders? register files? )
• Clock support
• How many global clocks can I have?
• Are there any on-chip Phase Logic Loops (PLLs) or
  Delay Locked Loops (DLLs) for clock
  synchronization, clock multiplication?

15
Issues in FPGA Technologies (cont)

• What type of IO support do I have?
• TTL, CMOS are a given
• Support for mixed 5V, 3.3v IOs?
• 3.3 v internal, but 5V tolerant inputs?
• Support for new low voltage signaling standards?
• GTL, GTL (Gunning Tranceiver Logic) - used on
  Pentium II
• HSTL - High Speed Transceiver Logic
• SSTL - Stub Series-Terminate Logic
• USB - IO used for Universal Serial Bus
  (differential signaling)
• AGP - IO used for Advanced Graphics Port
• Maximum number of IO? Package types?
• Ball Grid Array (BGA) for high density IO

16
Altera FPGA Family Summaries

• Altera Flex10K/10KE
• LEs (Logic elements) have 4-input LUTS (look-up
  tables) 1 FF
• Fast Carry Chain between LEs, Cascade chain for
  logic operations
• Large blocks of SRAM available as well
• Altera Max7000/Max7000A
• EEPROM based, very fast (Tpd 7.5 ns)
• Basically a PLD architecture with programmable
  interconnect.
• Max 7000A family is 3.3 v

17
Xilinx FPGA Family Summaries

• Virtex Family
• SRAM Based
• Largest device has 1M gates
• Configurable Logic Blocks (CLBs) have two 4-input
  LUTS, 2 DFFs
• Four onboard Delay Locked Loops (DLLs) for clock
  synchronization
• Dedicated RAM blocks (LUTs can also function as
  RAM).
• Fast Carry Logic
• XC4000 Family
• Previous version of Virtex
• No DLLs, No dedicated RAM blocks

18
Actel FPGA Family Summaries

• MXDS Family
• Fine grain Logic Elements that contain Mux logic
  DFF
• Embedded Dual Port SRAM
• One Time Programmable (OTP) - means that no
  configuration loading on powerup, no external
  serial ROM
• AntiFuse technology for programming (AntiFuse
  means that you program the fuse to make the
  connection).
• Fast (Tpd 7.5 ns)
• Low density compared to Altera, Xilinx - maximum
  number of gates is 36,000

19
Cypress CPLDs

• Ultra37000 Family
• 32 to 512 Macrocells
• Fast (Tpd 5 to 10ns depending on number of
  macrocells)
• Very good routing resources for a CPLD

20
Evolution of Implementation Technologies

• Discrete devices relays, transistors (1940s-50s)
• Discrete logic gates (1950s-60s)
• Integrated circuits (1960s-70s)
• e.g. TTL packages Data Book for 100s of
  different parts
• Map your circuit to the Data Book parts
• Gate Arrays (IBM 1970s)
• Custom integrated circuit chips
• Design using a library (like TTL)
• Transistors are already on the chip
• Place and route software puts the chip together
  automatically
• Large circuits on a chip
• Automatic design tools (no tedious custom
  layout)
• - Only good if you want 1000s of parts

trend toward higher levels of integration
21
(No Transcript)
22
Programmable Logic

• Disadvantages of the Data Book method
• Constrained to parts in the Data Book
• Parts are necessarily small and standard
• Need to stock many different parts
• Programmable logic
• Use a single chip (or a small number of chips)
• Program it for the circuit you want
• No reason for the circuit to be small

23
Programmable Logic Technologies

• Fuse and anti-fuse
• Fuse makes or breaks link between two wires
• Typical connections are 50-300 ohm
• One-time programmable (testing before
  programming?)
• Very high density
• EPROM and EEPROM
• High power consumption
• Typical connections are 2K-4K ohm
• Fairly high density
• RAM-based
• Memory bit controls a switch that
  connects/disconnects two wires
• Typical connections are .5K-1K ohm
• Can be programmed and re-programmed in the
  circuit
• Low density

24
Programmable Logic

• Program a connection
• Connect two wires
• Set a bit to 0 or 1
• Regular structures for two-level logic
  (1960s-70s)
• All rely on two-level logic minimization
• PROM connections - permanent
• EPROM connections - erase with UV light
• EEPROM connections - erase electrically
• PROMs
• Program connections in the _____________ plane
• PLAs
• Program the connections in the ____________ plane
• PALs
• Program the connections in the ____________ plane

25
Making Large Programmable Logic Circuits

• Alternative 1 CPLD
• Put a lot of PLDS on a chip
• Add wires between them whose connections can be
  programmed
• Use fuse/EEPROM technology
• Alternative 2 FPGA
• Emulate gate array technology
• Hence Field Programmable Gate Array
• You need
• A way to implement logic gates
• A way to connect them together

26
Field-Programmable Gate Arrays

• PALs, PLAs 10 - 100 Gate Equivalents
• Field Programmable Gate Arrays FPGAs
• Altera MAX Family
• Actel Programmable Gate Array
• Xilinx Logical Cell Array
• 100 - 1000(s) of Gate Equivalents!

27
(No Transcript)
28
Tradeoffs in FPGAs

• Logic block - how are functions implemented
  fixed functions (manipulate inputs) or
  programmable?
• Support complex functions, need fewer blocks, but
  they are bigger so less of them on chip
• Support simple functions, need more blocks, but
  they are smaller so more of them on chip
• Interconnect
• How are logic blocks arranged?
• How many wires will be needed between them?
• Are wires evenly distributed across chip?
• Programmability slows wires down  are some wires
  specialized to long distances?
• How many inputs/outputs must be routed to/from
  each logic block?
• What utilization are we willing to accept? 50?
  20? 90?

29
Altera EPLD (Erasable Programmable Logic Devices)

• Historical Perspective
• PALs same technology as programmed once bipolar
  PROM
• EPLDs CMOS erasable programmable ROM (EPROM)
  erased by UV light
• Altera building block MACROCELL

8 Product Term AND-OR Array Programmable MUX's
I/O Pin
Seq. Logic Block
Programmable polarity
Programmable feedback
30
Altera EPLD
Altera EPLDs contain 8 to 48 independently
programmed macrocells
Personalized by EPROM bits
Flipflop controlled by global clock signal local
signal computes output enable
Flipflop controlled by locally generated clock
signal
Seq Logic could be D, T positive or negative
edge triggered product term to implement clear
function
31
Altera Multiple Array Matrix (MAX)
AND-OR structures are relatively limited
Cannot share signals/product terms among
macrocells
Logic Array Blocks (similar to macrocells)
Global Routing Programmable Interconnect Array
EPM5128
8 Fixed Inputs 52 I/O Pins 8 LABs 16
Macrocells/LAB 32 Expanders/LAB
32
LAB Architecture
Expander Terms shared among all macrocells within
the LAB
33
P22V10 PAL
Supports large number of product terms per
output Latches and muxes associated with output
pins
34
Actel Programmable Gate Arrays
Rows of programmable logic building
blocks rows of interconnect
Anti-fuse Technology Program Once
Use Anti-fuses to build up long wiring runs
from short segments
8 input, single output combinational logic
blocks FFs constructed from discrete cross
coupled gates
35
Actel Logic Module
Basic Module is a Modified 41 Multiplexer
Example Implementation of S-R Latch
36
Actel Interconnect
Interconnection Fabric
37
Actel Routing Example
Jogs cross an anti-fuse minimize the of jobs
for speed critical circuits 2 - 3 hops for most
interconnections
38
Xilinx Programmable Gate Arrays

• CLB - Configurable Logic Block
• 5-input, 1 output function
• or 2 4-input, 1 output functions
• optional register on outputs
• Built-in fast carry logic
• Can be used as memory
• Three types of routing
• direct
• general-purpose
• long lines of various lengths
• RAM-programmable
• can be reconfigured

39
(No Transcript)
40
The Xilinx 4000 CLB
41
Two 4-input functions, registered output
42
5-input function, combinational output
43
CLB Used as RAM
44
Fast Carry Logic
45
Xilinx 4000 Interconnect
46
Switch Matrix
47
Xilinx 4000 Interconnect Details
48
Global Signals - Clock, Reset, Control
49
Xilinx 4000 IOB
50
Xilinx FPGA Combinational Logic Examples

• Key General functions are limited to 5 inputs
• (4 even better - 1/2 CLB)
• No limitation on function complexity
• Example
• 2-bit comparator A B C D and A B gt C D
  implemented with 1 CLB (GT) F A C' A B D'
  B C' D' (EQ) G A'B'C'D' A'B C'D A B'C D'
  A B C D
• Can implement some functions of gt 5 input

51
(No Transcript)
52
Xilinx FPGA Adder Example

• Example
• 2-bit binary adder - inputs A1, A0, B1, B0, CIN
  outputs S0, S1,
  Cout

Full Adder, 4 CLB delays to final carry out
2 x Two-bit Adders (3 CLBs each) yields 2 CLBs to
final carry out
53
Computer-Aided Design

• Can't design FPGAs by hand
• Way too much logic to manage, hard to make
  changes
• Hardware description languages
• Specify functionality of logic at a high level
• Validation high-level simulation to catch
  specification errors
• Verify pin-outs and connections to other system
  components
• Low-level to verify mapping and check performance
• Logic synthesis
• Process of compiling HDL program into logic gates
  and flip-flops
• Technology mapping
• Map the logic onto elements available in the
  implementation technology (LUTs for Xilinx FPGAs)

54
CAD Tool Path (contd)

• Placement and routing
• Assign logic blocks to functions
• Make wiring connections
• Timing analysis - verify paths
• Determine delays as routed
• Look at critical paths and ways to improve
• Partitioning and constraining
• If design does not fit or is unroutable as placed
  split into multiple chips
• If design it too slow prioritize critical paths,
  fix placement of cells, etc.
• Few tools to help with these tasks exist today
• Generate programming files - bits to be loaded
  into chip for configuration

55
Xilinx CAD Tools

• Verilog (or VHDL) use to specify logic at a
  high-level
• Combine with schematics, library components
• Synopsys
• Compiles Verilog to logic
• Maps logic to the FPGA cells
• Optimizes logic
• Xilinx APR - automatic place and route (simulated
  annealing)
• Provides controllability through constraints
• Handles global signals
• Xilinx Xdelay - measure delay properties of
  mapping and aid in iteration
• Xilinx XACT - design editor to view final mapping
  results

56
Applications of FPGAs

• Implementation of random logic
• Easier changes at system-level (one device is
  modified)
• Can eliminate need for full-custom chips
• Prototyping
• Ensemble of gate arrays used to emulate a circuit
  to be manufactured
• Get more/better/faster debugging done than with
  simulation
• Reconfigurable hardware
• One hardware block used to implement more than
  one function
• Functions must be mutually-exclusive in time
• Can greatly reduce cost while enhancing
  flexibility
• RAM-based only option
• Special-purpose computation engines
• Hardware dedicated to solving one problem (or
  class of problems)
• Accelerators attached to general-purpose computers
