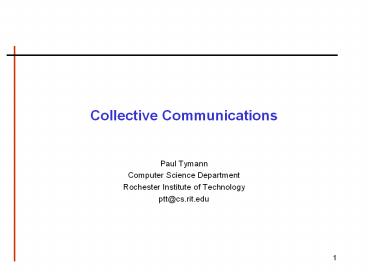

Collective Communications

1
Collective Communications

• Paul Tymann
• Computer Science Department
• Rochester Institute of Technology
• ptt_at_cs.rit.edu

2
Collective Communications

• There are certain communication patterns that
  appear in many different types of applications
• MPI provides routines that implement these
  patterns
• Barrier synchronization
• Broadcast from one member to all other members
• Gather data from an array spread across
  processors into one array
• Scatter data from one member to all members
• All-to-all exchange of data
• Global reduction (e.g., sum, min of "common" data
  elements)
• Scan across all members of a communicator

3
Characteristics

• MPI collective communication routines differ in
  many ways from MPI point-to-point communication
  routines
• Involve coordinated communication within a group
  of processes identified by an MPI communicator
• Substitute for a more complex sequence of
  point-to-point calls
• All routines block until they are locally
  complete
• Communications may, or may not, be synchronized
  (implementation dependent)
• In some cases, a root process originates or
  receives all data
• Amount of data sent must exactly match amount of
  data specified by receiver
• Many variations to basic categories
• No message tags are needed
• MPI collective communication can be divided into
  three subsets synchronization, data movement,
  and global computation.

4
Data Movement

• MPI provides three types of collective data
  movement routines
• broadcast
• gather
• scatter
• allgather
• alltoall
• Let's take a look at the functionality and syntax
  of these routines.

5
Broadcast

• Exactly what it says
• Implementation will do what ever is most
  efficient for the given hardware (might use a
  reduction)
• MPI_Bcast( buffer, count, datatype, root,
  communicator )
• What might catch you by surprise is that the
  receiving process calls MPI_Bcast() as well
• I often use broadcast to distribute parameters

6
Mandelbrot
The Mandelbrot set is a connected set of points
in the complex plane. Pick a point z0 in the
complex plane. Calculatez1 z02 z0z2 z12
z0z3 z22 z0. . . If the sequence z0 , z1
, z2 , z3 , ... remains within a distance of 2 of
the origin forever, then the point z0 is said to
be in the Mandelbrot set. If the sequence
diverges from the origin, then the point is not
in the set.
7
Parallel Mandelbrot

• Can be done using farmer/worker since the
  calculation of each pixel in the picture is
  independent of any other pixel value.
• We need to distribute a number of parameters to
  each of the processors
• The size of the window
• Location of the center
• Width
• Maximum number of iterations

8
The Farmer
void manager( int numProcs, char host )
double msg WORK_SIZE int maxMessageSize
( WINDOW_SIZE / ( numProcs - 1 )
WINDOW_SIZE ( numProcs -1 ) )
WINDOW_SIZE int result maxMessageSize
int i MPI_Status status int count
msg _PIXELS WINDOW_SIZE msg _X
X_CENTER - ( WIDTH / 2.0 ) msg _Y
Y_CENTER - ( WIDTH / 2.0 ) msg _WIDTH
_WIDTH msg _ITERS ITERATIONS
9
The Farmer
MPI_Bcast( msg, WORK_SIZE,
MPI_DOUBLE,
0, MPI_COMM_WORLD ) for
( i 0 i lt numProcs - 1 i i 1 )
MPI_Recv( ) // Parameters omitted
MPI_Get_count( status, MPI_INT, count )
drawTile( win, WINDOW_SIZE, numProcs,
status.MPI_SOURCE, result )
10
A Worker
void worker( int myRank, int numProcs, char
host ) double msg WORK_SIZE int
result MPI_Status status double x
double pointsPerPixel int colStart int
numCols / Obtain parameters from manager
/ MPI_Bcast( msg, WORK_SIZE,
MPI_DOUBLE, 0,
MPI_COMM_WORLD ) / Rest of the
program has been omitted /
11
MPE

• MPI Parallel Environment (MPE) is a software
  package that contains a number of useful tools
• Profiling Library
• Viewers for logfiles
• Parallel X Graphics library
• Debugger setup routines
• MPE is not part of the SUN HPC package, but it
  works with it. I have compiled and installed it
  in my account

12
X Routines

• MPE_Open_graphics - (collectively) opens an X
  Windows display
• MPE_Draw_point - Draws a point on an X Windows
  display
• MPE_Draw_points - Draws points on an X Windows
  display
• MPE_Draw_line - Draws a line on an X11 display
• MPE_Fill_rectangle - Draws a filled rectangle on
  an X11 display
• MPE_Update - Updates an X11 display
• MPE_Close_graphics - Closes a X11 graphics device

• MPE_Xerror( returnVal, functionName )
• MPE_Make_color_array - Makes an array of color
  indices MPE_Num_colors - Gets the number of
  available colors MPE_Draw_circle - Draws a circle

• MPE_Draw_logic - Sets logical operation for
  laying down new pixels
• MPE_Line_thickness - set thickness of lines
• MPE_Add_RGB_color( graph, red, green, blue,
  mapping )
• MPE_Get_mouse_press - Waits for mouse button
  press
• MPE_Iget_mouse_press - Checks for mouse button
  press
• MPE_Get_drag_region - get rubber-band box''
  region (or circle

13
Using X Routines
include mpe.h include mpe_graphics.h MPE_XG
raph win MPE_Open_graphics( win,
// Display handle
MPI_COMM_SELF, // Communicator
(char )0, // X Display
-1, -1, //
Location on screen 500, 500,
// Size
MPE_GRAPH_INDEPENDENT ) // Collective MPE_Draw_p
oint( win, // Display
handle col,
// Coordinate of row,
// the point color
) // Color to
use MPE_Close_graphics( win )
// Display handle
14
Compiling

• A little more to compiling
• mpcc -I/home/fac/ptt/pub/mpe/include
  -L/home/fac/ptt/mpe/lib -o mandel
  Mandelbrot.c -lmpi -lm -lmpe
  -lX
• Run it the same way

15
Reduce

• MPI provides functions that perform standard
  reductions across processorsint MPI_Reduce(
  void operand,
• void result, int count,
  MPI_Datatype type, MPI_Op operator,
  int root MPI_Comm comm )

Operation Name Meaning
MPI_MAX Maximum
MPI_MIN Minimum
MPI_SUM Sum
MPI_PROD Product
MPI_LAND Logical and
MPI_BAND Bitwise and
MPI_LOR Logical or
MPI_BOR Bitwise or
MPI_LXOR Logical xor
MPI_BXOR Bitwise xor
MPI_MAXLOC Max and location
MPI_MINLOC Min and location
16
Dot Product

• The dot product of two vectors is defined as
• x y x0y0 x1y1 x2y2 xn-1yn-1
• Imagine having two vectors each containing n
  elements stored on p processors
• Each processor will have N n/p elements
• Lets assume a block distribution of data meaning
• P0 has x0, x1, , xN-1 and y0, y1, yN-1
• P1 has xN, xN1, , x2N-1 and yN, yN1, y2N-1

17
Serial_dot
float Serial_dot( float x, float y, int n )
int i float sum 0.0 for ( i 0 i
lt n i ) sum sum x i y i
return sum
18
Parallel_dot
float Parallel_dot( float local_x,
float local_y, int
local_n ) float local_dot float dot
0.0 local_dot Serial_dot( local_x, local_y,
local_n ) MPI_Reduce( local_dot,
dot, 1,
MPI_FLOAT, MPI_SUM,
0, MPI_COMM_WORLD ) return
dot / only process 0 will have result /
19
MPI_Allreduce

• Note that MPI_Reduce() leaves the result in the
  root processor
• What if you wanted the result everywhere?
• You could reduce and broadcast
• Consider the modified reduction
