Backprop, 25 years later

1

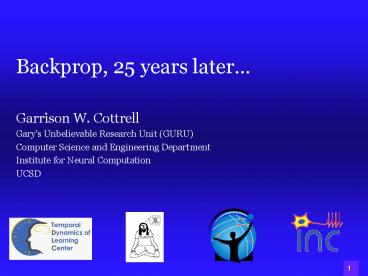

Backprop, 25 years later

• Garrison W. Cottrell
• Gary's Unbelievable Research Unit (GURU)
• Computer Science and Engineering Department
• Institute for Neural Computation
• UCSD

2
But first

• Hal White passed away March 31st, 2012
• Hal was our theoretician of neural nets, and
  one of the nicest guys I knew.
• His paper on A heteroskedasticity-consistent
  covariance matrix estimator and a direct test for
  heteroskedasticity has been cited 15,805 times,
  and led to him being shortlisted for the Nobel
  Prize.
• But his paper with Max Stinchcombe Multilayer
  feedforward networks are universal approximators
  is his second most-cited paper, at 8,114 cites.

3
But first

• In yet another paper (in Neural Computation,
  1989), he wrote
• The premise of this article is that learning
  procedures used to train artificial neural
  networks are inherently statistical techniques.
  It follows that statistical theory can provide
  considerable insight into the properties,
  advantages, and disadvantages of different
  network learning methods
• This was one of the first papers to make the
  connection between neural networks and
  statistical models - and thereby put them on a
  sound statistical foundation.

4
We should also remember

• Dave E. Rumelhart passed away on March 13, 2011
• Many had invented back propagation few could
  appreciate as deeply as Dave did what they had
  when they discovered it.

5
What is backpropagation, and why is/was it
important?

• We have billions and billions of neurons that
  somehow work together to create the mind.
• These neurons are connected by 1014 - 1015
  synapses, which we think encode the knowledge
  in the network - too many for us to explicitly
  program them in our models
• Rather we need some way to indirectly set them
  via a procedure that will achieve some goal by
  changing the synaptic strengths (which we call
  weights).
• This is called learning in these systems.

6
Learning A bit of history

• Frank Rosenblatt studied a simple version of a
  neural net called a perceptron
• A single layer of processing
• Binary output
• Can compute simple things like (some) boolean
  functions (OR, AND, etc.)

7
Learning A bit of history
8
Learning A bit of history
9
Learning A bit of history

• Rosenblatt (1962) discovered a learning rule for
  perceptrons called the perceptron convergence
  procedure.
• Guaranteed to learn anything computable (by a
  two-layer perceptron)
• Unfortunately, not everything was computable
  (Minsky Papert, 1969)

10
Perceptron Learning Demonstration

• Output activation rule
• First, compute the net input to the output unit
• ?wixi net
• Then, compute the output as
• If net ? ? then output 1
• else output 0

11
Perceptron Learning Demonstration

• Output activation rule
• First, compute the net input to the output unit
• ?wixi net
• If net ? ? then output 1
• else output 0
• Learning rule
• If output is 1 and should be 0, then lower
  weights to active inputs and raise the threshold
  (?)
• If output is 0 and should be 1, then raise
  weights to active inputs and lower the threshold
  (?)
• (active input means xi 1, not 0)

12
Characteristics of perceptron learning

• Supervised learning Gave it a set of
  input-output examples for it to model the
  function (a teaching signal)
• Error correction learning only correct it when
  it is wrong.
• Random presentation of patterns.
• Slow! Learning on some patterns ruins learning on
  others.

13
Perceptron Learning Made Simple

• Output activation rule
• First, compute the net input to the output unit
• ?wixi net
• If net ? ? then output 1
• else output 0
• Learning rule
• If output is 1 and should be 0, then lower
  weights to active inputs and raise the threshold
  (?)
• If output is 0 and should be 1, then raise
  weights to active inputs and lower the threshold
  (?)

14
Perceptron Learning Made Simple

• Learning rule
• If output is 1 and should be 0, then lower
  weights to active inputs and raise the threshold
  (?)
• If output is 0 and should be 1, then raise
  weights to active inputs and lower the threshold
  (?)
• Learning rule
• wi(t1) wi(t) ?(teacher - output)xi
• (? is the learning rate)
• This is known as the delta rule because learning
  is based on the delta (difference) between what
  you did and what you should have done ?
  (teacher - output)

15
Problems with perceptrons

• The learning rule comes with a great guarantee
  anything a perceptron can compute, it can learn
  to compute.
• Problem Lots of things were not computable,
• e.g., XOR (Minsky Papert, 1969)
• Minsky Papert said
• if you had hidden units, you could compute any
  boolean function.
• But no learning rule exists for such multilayer
  networks, and we dont think one will ever be
  discovered.

16
Problems with perceptrons
17
Aside about perceptrons

• They didnt have hidden units - but Rosenblatt
  assumed nonlinear preprocessing!
• Hidden units compute features of the input
• The nonlinear preprocessing is a way to choose
  features by hand.
• Support Vector Machines essentially do this in a
  principled way, followed by a (highly
  sophisticated) perceptron learning algorithm.

18
Enter Rumelhart, Hinton, Williams (1985)

• Discovered a learning rule for networks with
  hidden units.
• Works a lot like the perceptron algorithm
• Randomly choose an input-output pattern
• present the input, let activation propagate
  through the network
• give the teaching signal
• propagate the error back through the network
  (hence the name back propagation)
• change the connection strengths according to the
  error

19
Enter Rumelhart, Hinton, Williams (1985)
OUTPUTS
. . .
Hidden Units
Error
Activation
. . .
INPUTS

• The actual algorithm uses the chain rule of
  calculus to go downhill in an error measure with
  respect to the weights
• The hidden units must learn features that solve
  the problem

20
XOR
Back Propagation Learning
AND
OR
Random Network
XOR Network

• Here, the hidden units learned AND and OR - two
  features that when combined appropriately, can
  solve the problem

21
XOR

• But, depending on initial conditions, there are
  an infinite number of ways to do XOR - backprop
  can surprise you with innovative solutions.

22
Why is/was this wonderful?

• Efficiency
• Learns internal representations
• Learns internal representations
• Learns internal representations
• Generalizes to recurrent networks

23
Hintons Family Trees example

• Idea Learn to represent relationships between
  people that are encoded in a family tree

24
Hintons Family Trees example

• Idea 2 Learn distributed representations of
  concepts localist outputs

25
People hidden units Hinton diagram

• The corresponding people in the two trees are
  above/below one another english above, italian
  below

26
People hidden units Hinton diagram

• What does the unit 1 encode?

What is unit 1 encoding?
27
People hidden units Hinton diagram

• What does unit 2 encode?

What is unit 2 encoding?
28
People hidden units Hinton diagram

• Unit 6?

What is unit 6 encoding?
29
Relation units

• What does the upper right one code?

30
Lessons

• The network learns features in the service of the
  task - i.e., it learns features on its own.
• This is useful if we dont know what the features
  ought to be.
• Can explain some human phenomena

31
Another example

• In the next example(s), I make two points
• The perceptron algorithm is still useful!
• Representations learned in the service of the
  task can explain the Visual Expertise Mystery

32
A Face Processing System
33
The Face Processing System
34
The Face Processing System
35
The Face Processing System
Bob Carol Ted Cup Can Book
PCA
Gabor Filtering
Neural Net
Pixel (Retina) Level
Perceptual (V1) Level
Object (IT) Level
Category Level
Feature level
36
The Gabor Filter Layer

• Basic feature the 2-D Gabor wavelet filter
  (Daugman, 85)

• These model the processing in early visual areas

Subsample in a 29x36 grid
37
Principal Components Analysis

• The Gabor filters give us 40,600 numbers
• We use PCA to reduce this to 50 numbers
• PCA is like Factor Analysis It finds the
  underlying directions of Maximum Variance
• PCA can be computed in a neural network through a
  competitive Hebbian learning mechanism
• Hence this is also a biologically plausible
  processing step
• We suggest this leads to representations similar
  to those in Inferior Temporal cortex

38
How to do PCA with a neural network(Cottrell,
Munro Zipser, 1987 Cottrell Fleming 1990
Cottrell Metcalfe 1990 OToole et al. 1991)

• A self-organizing network that learns
  whole-object representations
• (features, Principal Components, Holons,
  eigenfaces)

Holons (Gestalt layer)
...
Input from Perceptual Layer
39
How to do PCA with a neural network(Cottrell,
Munro Zipser, 1987 Cottrell Fleming 1990
Cottrell Metcalfe 1990 OToole et al. 1991)

• A self-organizing network that learns
  whole-object representations
• (features, Principal Components, Holons,
  eigenfaces)

Holons (Gestalt layer)
...
Input from Perceptual Layer
40
How to do PCA with a neural network(Cottrell,
Munro Zipser, 1987 Cottrell Fleming 1990
Cottrell Metcalfe 1990 OToole et al. 1991)

• A self-organizing network that learns
  whole-object representations
• (features, Principal Components, Holons,
  eigenfaces)

Holons (Gestalt layer)
...
Input from Perceptual Layer
41
How to do PCA with a neural network(Cottrell,
Munro Zipser, 1987 Cottrell Fleming 1990
Cottrell Metcalfe 1990 OToole et al. 1991)

• A self-organizing network that learns
  whole-object representations
• (features, Principal Components, Holons,
  eigenfaces)

Holons (Gestalt layer)
...
Input from Perceptual Layer
42
How to do PCA with a neural network(Cottrell,
Munro Zipser, 1987 Cottrell Fleming 1990
Cottrell Metcalfe 1990 OToole et al. 1991)

• A self-organizing network that learns
  whole-object representations
• (features, Principal Components, Holons,
  eigenfaces)

Holons (Gestalt layer)
...
Input from Perceptual Layer
43
How to do PCA with a neural network(Cottrell,
Munro Zipser, 1987 Cottrell Fleming 1990
Cottrell Metcalfe 1990 OToole et al. 1991)

• A self-organizing network that learns
  whole-object representations
• (features, Principal Components, Holons,
  eigenfaces)

Holons (Gestalt layer)
...
Input from Perceptual Layer
44
How to do PCA with a neural network(Cottrell,
Munro Zipser, 1987 Cottrell Fleming 1990
Cottrell Metcalfe 1990 OToole et al. 1991)

• A self-organizing network that learns
  whole-object representations
• (features, Principal Components, Holons,
  eigenfaces)

Input from Perceptual Layer
45
Holons

• They act like face cells (Desimone, 1991)
• Response of single units is strong despite
  occluding eyes, e.g.
• Response drops off with rotation
• Some fire to my dogs face
• A novel representation Distributed templates --
• each units optimal stimulus is a ghostly looking
  face (template-like),
• but many units participate in the representation
  of a single face (distributed).
• For this audience Neither exemplars nor
  prototypes!
• Explain holistic processing
• Why? If stimulated with a partial match, the
  firing represents votes for this template
• Units downstream dont know what caused
  this unit to fire.
• (more on this later)

46
The Final Layer Classification(Cottrell
Fleming 1990 Cottrell Metcalfe 1990 Padgett
Cottrell 1996 Dailey Cottrell, 1999 Dailey et
al. 2002)

• The holistic representation is then used as input
  to a categorization network trained by supervised
  learning.

Output Cup, Can, Book, Greeble, Face, Bob,
Carol, Ted, Happy, Sad, Afraid, etc.
Categories
Holons
Input from Perceptual Layer

• Excellent generalization performance demonstrates
  the sufficiency of the holistic representation
  for recognition

47
The Final Layer Classification

• Categories can be at different levels basic,
  subordinate.
• Simple learning rule (delta rule). It says (mild
  lie here)
• add inputs to your weights (synaptic strengths)
  when you are supposed to be on,
• subtract them when you are supposed to be off.
• This makes your weights look like your favorite
  patterns the ones that turn you on.
• When no hidden units gt No back propagation of
  error.
• When hidden units we get task-specific features
  (most interesting when we use the
  basic/subordinate distinction)

48
Facial Expression Database

• Ekman and Friesen quantified muscle movements
  (Facial Actions) involved in prototypical
  portrayals of happiness, sadness, fear, anger,
  surprise, and disgust.
• Result the Pictures of Facial Affect Database
  (1976).
• 70 agreement on emotional content by naive human
  subjects.
• 110 images, 14 subjects, 7 expressions.

Anger, Disgust, Neutral, Surprise, Happiness
(twice), Fear, and Sadness This is actor JJ
The easiest for humans (and our model) to classify
49
Results (Generalization)

• Kendalls tau (rank order correlation) .667,
  p.0441
• Note This is an emergent property of the model!

50
Correlation of Net/Human Errors

• Like all good Cognitive Scientists, we like our
  models to make the same mistakes people do!
• Networks and humans have a 6x6 confusion matrix
  for the stimulus set.
• This suggests looking at the off-diagonal terms
  The errors
• Correlation of off-diagonal terms r 0.567. F
  (1,28) 13.3 p 0.0011
• Again, this correlation is an emergent property
  of the model It was not told which expressions
  were confusing.

51
Examining the Nets Representations

• We want to visualize receptive fields in the
  network.
• But the Gabor magnitude representation is
  noninvertible.
• We can learn an approximate inverse mapping,
  however.
• We used linear regression to find the best linear
  combination of Gabor magnitude principal
  components for each image pixel.
• Then projecting each units weight vector into
  image space with the same mapping visualizes its
  receptive field.

52
Examining the Nets Representations

• The y-intercept coefficient for each pixel is
  simply the average pixel value at that location
  over all faces, so subtracting the resulting
  average face shows more precisely what the
  units attend to

• Apparently local features appear in the global
  templates.

53
Morph Transition Perception

• Morphs help psychologists study categorization
  behavior in humans
• Example JJ Fear to Sadness morph

0 10 30 50 70
90 100

• Young et al. (1997) Megamix presented images
  from morphs of all 6 emotions (15 sequences) to
  subjects in random order, task is 6-way forced
  choice button push.

54
Results classical Categorical Perception sharp
boundaries
6-WAY ALTERNATIVE FORCED CHOICE
PERCENT CORRECT DISCRIMINATION

• and higher discrimination of pairs of images
  when they cross a perceived category boundary

55
Results Non-categorical RTs

• Scalloped Reaction Times

BUTTON PUSH
REACTION TIME
56
Results More non-categorical effects

• Young et al. Also had subjects rate 1st, 2nd, and
  3rd most apparent emotion.

• At the 70/30 morph level, subjects were above
  chance at detecting mixed-in emotion. These data
  seem more consistent with continuous theories of
  emotion.

57
Modeling Megamix

• 1 trained neural network 1 human subject.
• 50 networks, 7 random examples of each expression
  for training, remainder for holdout.
• Identification average of network outputs
• Response time uncertainty of maximal output
  (1.0 - ymax).
• Mixed-in expression detection record 1st, 2nd,
  3rd largest outputs.
• Discrimination 1 correlation of layer
  representations
• We can then find the layer that best accounts for
  the data

58
Modeling Six-Way Forced Choice

• Overall correlation r.9416, with NO FIT
  PARAMETERS!

59
Model Discrimination Scores
HUMAN
MODEL OUTPUT LAYER R0.36
MODEL OBJECT LAYER R0.61
PERCENT CORRECT DISCRIMINATION

• The model fits the data best at a precategorical
  layer The layer we call the object layer NOT
  at the category level

60
Discrimination

• Classically, one requirement for categorical
  perception is higher discrimination of two
  stimuli at a fixed distance apart when those two
  stimuli cross a category boundary
• Indeed, Young et al. found in two kinds of tests
  that discrimination was highest at category
  boundaries.
• The result that we fit the data best at a layer
  before any categorization occurs is significant
  In some sense, the category boundaries are in
  the data, or at least, in our representation of
  the data.

61
Outline

• An overview of our facial expression recognition
  system.
• The internal representation shows the models
  prototypical representations of Fear, Sadness,
  etc.
• How our model accounts for the categorical data
• How our model accounts for the non-categorical
  data
• Discussion
• Conclusions for part 1

62
Reaction Time Human/Model
MODEL REACTION TIME (1 - MAX_OUTPUT)
HUMAN SUBJECTS REACTION TIME
Correlation between model data .6771, plt.001
63
Mix Detection in the Model
Can the network account for the continuous data
as well as the categorical data? YES.
64
Human/Model Circumplexes

• These are derived from similarities between
  images using non-metric Multi-dimensional
  scaling.
• For humans similarity is correlation between
  6-way forced-choice button push.
• For networks similarity is correlation between
  6-category output vectors.

65
Outline

• An overview of our facial expression recognition
  system.
• How our model accounts for the categorical data
• How our model accounts for the two-dimensional
  data
• The internal representation shows the models
  prototypical representations of Fear, Sadness,
  etc.
• Discussion
• Conclusions for part 1

66
Discussion

• Our model of facial expression recognition
• Performs the same task people do
• On the same stimuli
• At about the same accuracy
• Without actually feeling anything, without any
  access to the surrounding culture, it
  nevertheless
• Organizes the faces in the same order around the
  circumplex
• Correlates very highly with human responses.
• Has about the same rank order difficulty in
  classifying the emotions

67
Discussion

• The discrimination correlates with human results
  most accurately at a precategorization layer The
  discrimination improvement at category boundaries
  is in the representation of data, not based on
  the categories.
• These results suggest that for expression
  recognition, the notion of categorical
  perception simply is not necessary to explain
  the data.
• Indeed, most of the data can be explained by the
  interaction between the similarity of the
  representations and the categories imposed on the
  data Fear faces are similar to surprise faces in
  our representation so they are near each other
  in the circumplex.

68
Conclusions from this part of the talk

• The best models perform the same task people do
• Concepts such as similarity and
  categorization need to be understood in terms
  of models that do these tasks
• Our model simultaneously fits data supporting
  both categorical and continuous theories of
  emotion
• The fits, we believe, are due to the interaction
  of the way the categories slice up the space of
  facial expressions,
• and the way facial expressions inherently
  resemble one another.
• It also suggests that the continuous theories are
  correct discrete categories are not required
  to explain the data.
• We believe our results will easily generalize to
  other visual tasks, and other modalities.

69
The Visual Expertise Mystery

• Why would a face area process BMWs?
• Behavioral brain data
• Model of expertise
• results

70
Are you a perceptual expert?
Take the expertise test!!!
Identify this object with the first name that
comes to mind.
Courtesy of Jim Tanaka, University of Victoria
71
Car - Not an expert
2002 BMW Series 7 - Expert!
72
Bird or Blue Bird - Not an expert
Indigo Bunting - Expert!
73
Face or Man - Not an expert
George Dubya- Expert!
Jerk or Megalomaniac - Democrat!
74
How is an object to be named?
75
Entry Point Recognition
Animal
Semantic analysis
Bird
Visual analysis
Indigo Bunting
Fine grain visual analysis
76
Dog and Bird Expert Study
Each expert had a least 10 years experience in
their respective domain of expertise. None of
the participants were experts in both dogs and
birds. Participants provided their own
controls.
Tanaka Taylor, 1991
77
Object Verification Task
Superordinate
Basic
Subordinate
YES NO
YES NO
78
Dog and bird experts recognize objects in their
domain of expertise at subordinate levels.
900
800
Mean Reaction Time (msec)
700
600
Superordinate
Basic
Subordinate
Animal
Bird/Dog
Robin/Beagle
79
Is face recognition a general form of perceptual
expertise?
80
Face experts recognize faces at the individual
level of unique identity
1200
1000
Downward Shift
Mean Reaction Time (msec)
800
600
Superordinate
Basic
Subordinate
Tanaka, 2001
81
Event-related Potentials and Expertise
Face Experts
Object Experts
Tanaka Curran, 2001 see also Gauthier,
Curran, Curby Collins, 2003, Nature Neuro.
Bentin, Allison, Puce, Perez McCarthy, 1996
Novice Domain
Expert Domain
82
Neuroimaging of face, bird and car experts
Cars-Objects
Birds-Objects
Fusiform Gyrus
Car Experts
Fusiform Gyrus
Face Experts
Bird Experts
Gauthier et al., 2000
Fusiform Gyrus
83
How to identify an expert?
Behavioral benchmarks of expertise Downward
shift in entry point recognition Improved
discrimination of novel exemplars from learned
and related categories Neurological benchmarks
of expertise Enhancement of N170 ERP brain
component Increased activation of fusiform
gyrus
84
End of Tanaka Slides
85

• Kanwisher showed the FFA is specialized for
  faces
• But she forgot to control for what???

86
Greeble Experts (Gauthier et al. 1999)

• Subjects trained over many hours to recognize
  individual Greebles.
• Activation of the FFA increased for Greebles as
  the training proceeded.

87
The visual expertise mystery

• If the so-called Fusiform Face Area (FFA) is
  specialized for face processing, then why would
  it also be used for cars, birds, dogs, or
  Greebles?
• Our view the FFA is an area associated with a
  process fine level discrimination of homogeneous
  categories.
• But the question remains why would an area that
  presumably starts as a face area get recruited
  for these other visual tasks? Surely, they dont
  share features, do they?

Sugimoto Cottrell (2001), Proceedings of the
Cognitive Science Society
88
Solving the mystery with models

• Main idea
• There are multiple visual areas that could
  compete to be the Greeble expert - basic level
  areas and the expert (FFA) area.
• The expert area must use features that
  distinguish similar looking inputs -- thats what
  makes it an expert
• Perhaps these features will be useful for other
  fine-level discrimination tasks.
• We will create
• Basic level models - trained to identify an
  objects class
• Expert level models - trained to identify
  individual objects.
• Then we will put them in a race to become Greeble
  experts.
• Then we can deconstruct the winner to see why
  they won.

Sugimoto Cottrell (2001), Proceedings of the
Cognitive Science Society
89
Model Database

• A network that can differentiate faces, books,
  cups and
• cans is a basic level network.
• A network that can also differentiate individuals
  within ONE
• class (faces, cups, cans OR books) is an expert.

90
Model
(Experts)

• Pretrain two groups of neural networks on
  different tasks.
• Compare the abilities to learn a new individual
  Greeble classification task.

(Non-experts)
Hidden layer
91
Expertise begets expertise
Amount Of Training Required To be a Greeble Expert
Training Time on first task

• Learning to individuate cups, cans, books, or
  faces first, leads to faster learning of Greebles
  (cant try this with kids!!!).
• The more expertise, the faster the learning of
  the new task!
• Hence in a competition with the object area, FFA
  would win.
• If our parents were cans, the FCA (Fusiform Can
  Area) would win.

92
Entry Level Shift Subordinate RT decreases with
training (rt uncertainty of response 1.0
-max(output))
Human data
Network data
--- Subordinate Basic
RT
Training Sessions
93
How do experts learn the task?

• Expert level networks must be sensitive to
  within-class variation
• Representations must amplify small differences
• Basic level networks must ignore within-class
  variation.
• Representations should reduce differences

94
Observing hidden layer representations

• Principal Components Analysis on hidden unit
  activation
• PCA of hidden unit activations allows us to
  reduce the dimensionality (to 2) and plot
  representations.
• We can then observe how tightly clustered stimuli
  are in a low-dimensional subspace
• We expect basic level networks to separate
  classes, but not individuals.
• We expect expert networks to separate classes and
  individuals.

95
Subordinate level training magnifies small
differences within object representations
1 epoch
80 epochs
1280 epochs
Face
Basic
96
Greeble representations are spread out prior to
Greeble Training
Face
Basic
97
Variability Decreases Learning Time
(r -0.834)
Greeble Learning Time
Greeble Variance Prior to Learning Greebles
98
Examining the Nets Representations

• We want to visualize receptive fields in the
  network.
• But the Gabor magnitude representation is
  noninvertible.
• We can learn an approximate inverse mapping,
  however.
• We used linear regression to find the best linear
  combination of Gabor magnitude principal
  components for each image pixel.
• Then projecting each hidden units weight vector
  into image space with the same mapping visualizes
  its receptive field.

99
Two hidden unit receptive fields
AFTER TRAINING AS A FACE EXPERT
AFTER FURTHER TRAINING ON GREEBLES
HU 16
HU 36
NOTE These are not face-specific!
100
Controlling for the number of classes

• We obtained 13 classes from hemera.com
• 10 of these are learned at the basic level.
• 10 faces, each with 8 expressions, make the
  expert task
• 3 (lamps, ships, swords) are used for the novel
  expertise task.

101
Results Pre-training

• New initial tasks of similar difficulty In
  previous work, the basic level task was much
  easier.
• These are the learning curves for the 10 object
  classes and the 10 faces.

102
Results

• As before, experts still learned new expert level
  tasks faster

Number of epochs To learn swords After learning
faces Or objects
Number of training epochs on faces or objects
103
Outline

• Why would a face area process BMWs?
• Why this model is wrong

104
background

• I have a model of face and object processing that
  accounts for a lot of data

105
The Face and Object Processing System
106
Effects accounted for by this model

• Categorical effects in facial expression
  recognition (Dailey et al., 2002)
• Similarity effects in facial expression
  recognition (ibid)
• Why fear is hard (ibid)
• Rank of difficulty in configural, featural, and
  inverted face discrimination (Zhang Cottrell,
  2006)
• Holistic processing of identity and expression,
  and the lack of interaction between the two
  (Cottrell et al. 2000)
• How a specialized face processor may develop
  under realistic developmental constraints (Dailey
  Cottrell, 1999)
• How the FFA could be recruited for other areas of
  expertise (Sugimoto Cottrell, 2001 Joyce
  Cottrell, 2004, Tran et al., 2004 Tong et al,
  2005)
• The other race advantage in visual search (Haque
  Cottrell, 2005)
• Generalization gradients in expertise (Nguyen
  Cottrell, 2005)
• Priming effects (face or character) on
  discrimination of ambiguous chinese characters
  (McCleery et al, under review)
• Age of Acquisition Effects in face recognition
  (Lake Cottrell, 2005 LC, under review)
• Memory for faces (Dailey et al., 1998, 1999)
• Cultural effects in facial expression recognition
  (Dailey et al., in preparation)

107
Backprop, 25 years later

• Backprop is important because it was the first
  relatively efficient method for learning internal
  representations
• Recent advances have made deeper networks
  possible
• This is important because we dont know how the
  brain uses transformations to recognize objects
  across a wide array of variations (e.g., the
  Halle Berry neuron)

108

• E.g., the Halle Berry neuron

109
END
