Field Programmable Gate Array (FPGA) Layout

1

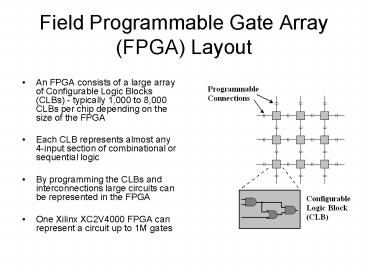

Field Programmable Gate Array (FPGA) Layout

• An FPGA consists of a large array of Configurable
  Logic Blocks (CLBs) - typically 1,000 to 8,000
  CLBs per chip depending on the size of the FPGA
• Each CLB represents almost any 4-input section of
  combinational or sequential logic
• By programming the CLBs and interconnections
  large circuits can be represented in the FPGA
• One Xilinx XC2V4000 FPGA can represent a circuit
  up to 1M gates

2
DINI DN3000k10 Board

• DINI DN3000k10 is an FPGA based PCI card
• Contains five Xilinx XC2V4000 FPGAs connected by
  a 226 bit wide bus
• One of the FPGA has a separate connection for
  communicating to a PC via the PCI bus
• FPGAs can be configured through the PCI bus or
  configurations can be stored on board

3
Multiplier Options
Usage ( CLBs)
Percentage of CLBs used in a XC2V4000, the
XC2C4000 contains 5760 CLBs
4
Cellular Automata ModelMultiple Cells per
Processing Element
5
Number of Processing Elements vs. Million
Operations Per Second
6
Comparison to C-Simulation

• Based on timing of optimized C simulation running
  on CCM1 (1.4GHz, 1GB RAM)
• Simulator ran 1M iterations of a 5448 cell beam
  model in 111.4s - Million Cell Updates per
  Second 48.9
• For a 5448 cell model at 16 bit precision the
  FPGA implementation could perform 7497M Cell
  Updates per Second
• Based on these results the FPGA was 150 times
  faster than the optimized C-simulation

7
Other FPGA Applications

• HokieGene Genome Matching Project (2003)
• Matching engine executed on one FPGA (XC2V1000)
• Performed 200 billion cell updates per second
• 1,200 billion operations per second (1.2 GOPS)
• BYU - Network Intrusion Detection Systems (2002)
• Hardware implementation used one FPGA (XC2V1000)
• Outperformed software version running on P3
  750MHz
• Up to 400 times more throughput than software
  version
• Up to 1000 times less latency than software
  version
• Xilinx High Performance DES Encryption (2000)
• Implemented on one FPGA (XCV150)
• Maximum throughput 10.75 GB/sec
• Outperformed best ASIC implementation
• Texas University Target Recognition System
  (2000)
• System built using one FPGA (ORCA 40k) and
  Myrinet interfacing
• Capable of processing 900 templates per second
