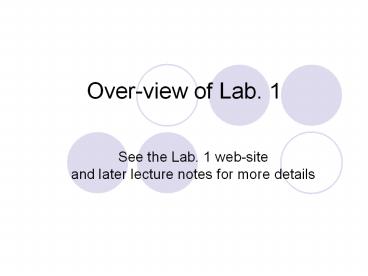

Over-view of Lab. 1

1
Over-view of Lab. 1

• See the Lab. 1 web-site and later lecture notes
  for more details

2
All embedded projects (every one built in the
world) require the following

• Build a project directory using a development
  environment.
• Add code to -- CODE IS RE-USED IN LATER LABS
• Initialize the system
• Read general purpose input signals (I part of
  GPIO)
• Write general purpose output signals (O part of
  GPIO)
• Initialize and use peripherals
• Timers, serial interfaces to LCD screens, thermal
  sensors, light sensors, accelerometers, DSP
  programs for analysis
• Build system in a controlled and testable manner
• Incremental build, testing framework
• Operating system (Super loop, co-operative
  scheduler, event driven scheduler)

3
E.g. Radio controlled voice activatedrobotic car
term project

• Set-up the processor to control the board A/D and
  D/A allows capture and play-back sound.
• Set-up the processor so that we can read general
  purpose input lines (GPIO -- switches) so we
  send various different commands to car.
• Use the digital signal processing (DSP) part of
  Blackfin processor to run canned (meaning written
  by somebody else) frequency analysis program to
  recognize voice commands
• Use the analysis of the sounds to output control
  values to a radio transmitter and control the car.

4
Main Code pseudo code for the voice controlled
car

• main( ) // red means canned code green
  means done in Lab. 1
• Launch the Analog Devices audio echo program
  a background interrupt-driven task that is given
  to you you will modify this code
• InitFlashASM( ) // Activate
  the system Flash memory without //
  stopping audio program which uses the Flash
  interface too
• // This enables you to write to the
  LEDs on the Blackfin board
• InitializePFInterfaceASM( ) // Activate the
  Push-button controller
• // This enables you to
  read switches SW1, SW2, SW3, SW4
• Launch VDK multi-threads (separate processes)
  to control various processes // The
  VDK O/S is provided as part of the VDSP IDE
• Thread 1 Captures and then stores batches of
  sound for analysis
• Thread 2 Analyze previous stored sound for
  possible commands
• Thread 3 Use previous commands to send commands
  to control the car
• Thread 4 Check evaluation buttons for options
  (autopilot etc)
• Thread 5 etc

5
Another possible example project using the same
code ideas

• We want to build a audio controller
• Reuse CANNED examples provided by Analog Devices
• Audio in captured using audio A/D (CODEC)
• Audio out generated using audio D/A (CODEC)
• Manipulate the sound quality
• Modify functions that use Lab. 1 hardware
  interfaces
• Push buttons to control audio controller
  operations e.g. graphics equalizer
• LED lights to display operation results and sound
  volume level (dancing lights)

6
Main Code pseudo code for the audio controller

• main( )
• Launch the Analog Devices audio echo program
  a background interrupt-driven task that is given
  to you you will modify this code
• InitFlashASM( ) // Activate the system Flash
  memory without stopping
  // the audio program which uses the
  Flash interface too
• InitializePFInterfaceASM( ) // Activate the
  Push-button controller
• Wait for button1 to be pressed and released
  (ReadButtonASM() ), then play the sound at
  half-volume.
• Wait for button2 to be pressed and released, play
  the sound at normal volume
• When button3 is pressed -- Generate the
  extremely fascinating (but completely useless)
  dancing lights which change with the audio stream
  volume level
• Wait for button4 to be pressed and released, quit
  the program (turn off the sound and stop the
  processor)

7
If we wanted to get fancy we could do the
following to the audio Talkthrough program

• Gargling operation
• Need to add a simple counter that increments by 1
  every 1 / 44000 s (increments each time that an
  audio sample is obtained)
• Use the counter to control when to turn the sound
  off and on every ½ s
• Gargling sound is produced rather than just
  turning the sound off
• For more details see Lab. 1 from 2006.

8
Lab. 1 Key project interfacingMicrocontroller
I/O demonstration

• Your group must come into the laboratory class
  prepared to be able to demonstrate all of the
  following by the end of laboratory period
• You will make use of some of the code developed
  during the assignments. (Note assignments may be
  due AFTER the laboratory)
• Initialize the push-button controller interface
• Read, and use, a value provided by the
  push-button controller.
• Initialize the Flash LED display interface (so
  that it works)
• Write a value to the LED display
• Read, and use, a value stored in the LED display,
  so you can test that you are getting the correct
  answer
• Demonstrate tests to show that these operations
  work as required
• OPTIONAL ENCM511 Project club
• Each laboratory will provide you with enough
  interface information to get a component of the
  voice-activated radio control car to work.
• Extra hours of work will needed to write and
  test the necessary C code to make the
  interfaces operate correctly but that can be
  split amongst those interested.
• Develop a voice activated Windows Mobile
  cell-phone application

9
Lab. Task Does my ADSP-BF533 board work?
Download audio-talk-through program

• If you have not already done so, download and
  expand ENCM511Directory2010.zip file (used in
  assignment 1) so that you have the correct
  directory. structure and test driven development
  environment needed for Laboratory 1.
• Download and expand the files in
  10CPP_Talkthrough.zip into your AudioDemo
  directory.
• Build an AudioDemo Blackfin project in your
  AudioDemo directory and add the (provided) files
  into the project -- compile and link.
• Download the executable (.dxe) file onto the
  BF533 processor.
• Hook up your CD or IPOD output to the CJ2 stereo
  input.
• Hook up your ear-phones to the CJ3 stereo output.

• Run the AudioDemo.dxe executable and check that
  the talk through program is working.
• This task demonstrated your ability to build VDSP
  Blackfin projects and run the code (Marks for
  Familiarization Lab). The AudioDemo code (running
  in a multithread environment) forms the basis of
  the (optional) voice-activated radio-controlled
  car project.

10
Tasks of Laboratory 1

• Basic Task develop the LED interface
• Initialize the Flash memory using the Blackfin
  External Bus Interface Unit (EBIU) (ASM)
• Initialize the memory controller of the Blackfin
  Evaluation Board LEDs (ASM) can control
  devices and write large code
• The Blackfin external bus interface unit is used
  to perform many microcontroller operations
• Initialize SDRAM, audio chips etc,
• Task (mainly in C) that use the LED interface
• E.g. Develop a simple counter (in C) and
  display value
• E.g. Write a C routine to write morse code
  values into an array
• E.g. Write a routine to transfer the morse code
  values to the LEDs (first in C, then ASM)
• homepage.ntlworld.com/dmitrismirnov/morse-tab1.JPG

11
Task Initialize the Programmable flag interface
16 GPIO lines on the Blackfin

• Warning could burn out the Blackfin processor
  if coding is done incorrectly
• You need to set (store a known value to) a number
  of internal registers in the Blackfin processor
  core.
• Other processors need equivalent GPIO control
  methods
• Most important registers
• FIO_DIR Data DIRection set to value ?? for
  input
• FIO_INEN INterface Enable set to value ?? for
  enabling the input (otherwise they will not work
  power saving)
• FIO_FLAG_D Programmable FLAG Data register

12
Why do you need to know how to do read (load)
and write (store) on internal registers?

• Flag Direction register (FIO_DIR)
• Used to determine if the PF bit is to be used for
  input or output -- WARNING SMOKE POSSIBLE
  ISSUE
• USE equivalent of AND instruction from ENCM369 to
  clear bits PF11 to PF8 to 0 for input, but must
  leave all other bits unchanged in value.
• Read peripheral register value, use AND
  instruction to zero the required bits, write back
  value

13
Registers used to control PF pins

• Flag Input Enable Register
• Only activate the pins you want to use (saves
  power in telecommunications situation)
• USE OR instruction from ENCM369 to enable
  (activate) pins PF11 to PF8 for input, leave all
  other bits in register unchanged
• Read peripheral register value, use OR
  instruction to SET the required bits, write back
  value

14
Registers used to control PF pins

• Flag Data register (FIO_FLAG_D)
• Used to read the PF bits (1 or 0)
• Need to read pins PF11 to PF8, ignore all other
  pins values. This requires AND and SHIFT
  instructions from ENCM369.
• Read register value, use AND instruction to clear
  unwanted bits, then use masked value in code

15
Warning

• The class notes remind you of the following
  important facts
• USE equivalent of AND instruction from ENCM369 to
  clear bits PF11 to PF8 to 0 for input, but must
  leave all other bits unchanged in value.
• Read peripheral register value, use AND
  instruction to zero ONLY the required bits, write
  back value
• USE OR instruction from ENCM369 to enable
  (activate) pins PF11 to PF8 for input, leave all
  other bits in register unchanged
• Read peripheral register value, use OR
  instruction to set ONLY required bits to 1,
  write back value
• These techniques were demonstrated in the
  tutorial this morning (Friday 24)
• The lab pages WILL NOT remind you of those
  following important facts
• This will give you the opportunity to make
  real-life mistakes in the laboratory and work
  out how to recognize that problems are occurring
  and fix problems.

16
Task Setting up the programmable flag interface

• Follow the instructions carefully
• FIO_DIR direction register write 0s to bits
  8, 9, 10, 11 leave other bits unchanged (READ /
  then AND / WRITE operations) -- This sets the
  pins as INPUT pins
• FIO_INEN input enable register write 1s to
  bits 8, 9, 10, 11 leave other bits unchanged
  (READ / then OR / WRITE operations) This
  activates (turns on) the pins as INPUT pins
• Other GPIO registers write 0s to bits 8, 9, 10,
  11 leave other bits unchanged (READ / then AND
  / WRITE operations)
• There is a test program that will enable you to
  check your code provide a screen dump of test
  result.

17
Task Read the switches on the front panel in
real life

• Transfer the information to the LEDs so you can
  demonstrate correct operations
• Build Initialize_ProgrammableFlagsASM ( )
• MUST HAVE 50 pin cable connected between logic
  board and Blackfin for the switch values to be
  read correctly otherwise switch input always
  reads 1. Watch the demonstrations
• Logic board power supply must be turned on (or
  your code will always read 1 from the switches)
• What we could do Simple optical transmitter
  project
• Place a light sensitive detector in front of
  the LEDs on a second Blackfin station where
  that station is sending morse messages.
• Use the output of the detector as the input to
  the First Blackfin instead of the switch, and
  capture the light code signals
• Print out the morse code transmissions on the
  screen of the first station very basic
  optical transmission

18
extern C int ReadGPIOFlags( )
include ltblackfin.hgt .global _ReadGPIOFlags _ReadGPIOFlags // Make an address register point to // the GPIO Flag register to read switches P1.L lo (FIO_FLAG_D) P1.H hi (FIO_FLAG_D) // Read the 16 bit flag register value and return // the value for the C code to use R0 WP1 (Z) // convert 16 to 32 bits _ReadGPIOFlags.END RTS Must use W 16-bit read since the manual shows that FIO_FLAG_D register is 16-bits ZERO EXTENSIONMust use WP1 (Z) zero-extend as this adds 16 zeros to the 16 bits from FIO_FLAG_D register to make 32-bits to place into R0 0xFF00 becomes 0x0000FF00
19
Sign extension of input often needed
FLAG REGISTER HOLD BIT-PATTERNS NOT NUMBERS The audio chip brings in 24 bit values representing the digital value (positive or negative) of the audio volume Negative values 0x800000 (-223) to 0xFFFFFF (-1) Positive values 0x000000 (0) to 0x7FFFFF (223 -1). However, the values are read into the Blackfin 32 bit data register as values the audio volume (ZERO EXTENSION) Positive values 0x00800000 (PLUS 223) to 0x00FFFFFF (PLUS 224 - 1) Positive values 0x0000000000 (0) to 0x00007FFFFF (223 -1) Audio signal will sound very distorted unless sign extension applied Negative values 0xFF800000 (- 223) to 0xFFFFFFFF (- 1) Positive values 0x0000000000 (0) to 0x00007FFFFF (223 -1) FLAG DATA REGISTER ZERO EXTENSIONMust use W 16-bit read since the manual shows that FIO_FLAG_D register is 16-bits Must use WP1 (Z) zero-extend as this adds 16 zeros to the 16 bits from FIO_FLAG_D register to make 32-bits to place into R0 0xFF00 becomes 0x0000FF00
20
Using that assembly code to just wrote from C

• extern C int ReadGPIOFlags( )
• int ReadPushButtonSwitches(void)
• InitializeGPIORegisters( ) // Lab. 1
• int GPIOFlagValues ReadGPIOFlags( ) //
  Must happen AFTER Init( ) or

  // garbage results are obtained
• int maskToRemoveUnwantedBits 0x0F00
• // Review of
  ENCM369 AND operation and NOT
• int wantedGPIOFlagValues GPIOFlagValues
  maskToRemoveUnwantedBits
• return (wantedGPIOFlagValues gtgt 8) //
  bit shift operation
• Returns 1 if switch 1 pressed, returns 2 if
  switch 2 pressed,
• Returns 4 if switch 3 pressed, returns 8 if
  switch 4 pressed,
• Returns 5 if switch 1 and switch 3 are pressed at
  the same time

SW4 SW2 SW3
SW1
21
Controlling a radio controlled carusing the
pushbuttons

• A L F R
• Switch 2 pressed means go forward for 1/ 2 s
• Switch 1 means turn wheels right
• Switch 3 means turn wheels left
• Switch 4 means accept command(Later replace
  switch control with music / voice control)
• Thus pressing switches 2, 2, 1 with 2, 2, 2,
  3 with 2, 2, 2, 0, 0, 0, 0
• Would cause the car to go down an S shape path

22
Store the commands to control a car into an array
for later play-back

• define STOP 0
• int storeCommands20
• int numberStopCommands 0
• int count 0
• while (numberStopCommands lt 4)
• command GetValidCommand( )
• if (command STOP)
• numberStopCommands
• else
• numberStopCommands 0
• storeCommandscount command// System
  crashes is more than 20 commands are entered
  WHY?? good mid term question// Is the way
  that viruses cause overflow of input buffer
  problem

23
Get a valid command to control a car

• define SWITCH4 0x8
• define ACCEPTCOMMAND SWITCH4
• int GetValidCommand( )
• int command ReadPushButtonSwitches( )
• while ( (command ACCEPTCOMMAND) !
  ACCEPTCOMMAND
• command ReadPushButtonSwitches( )
• // Get here when somebody pushes switch 4
• // Explain why it is a logical error if we just
  exit this code here
• // NOT fixing this error will cause mucho-grief
  in the lab work out the problem with your lab
  partner
• return command

24
Task -- Tests

• There needs to be software tests (E-TDD) to allow
  you to demonstrate that your code works correctly
• Note there are test executables (.dxe) available
  to test out your equipment
• This code can be used to test the switches and
  the LED interface on your board. SwitchToLED.dxe
• This is the final version of my code for the
  fancy audio controller  DrSmithAudioController.d
  xe
