332:479 Concepts in VLSI Design Lecture 15 SPICE Simulation

1

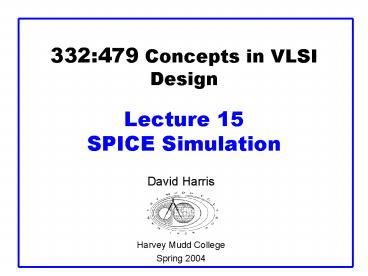

332479 Concepts in VLSIDesignLecture 15
SPICE Simulation

• David Harris
• Harvey Mudd College
• Spring 2004

2
Outline

• Introduction to SPICE
• DC Analysis
• Transient Analysis
• Subcircuits
• Optimization
• Power Measurement
• Logical Effort Characterization
• Summary

Material from CMOS VLSI Design, by Weste and
Harris, Addison-Wesley, 2005
3
Introduction to SPICE

• Simulation Program with Integrated Circuit
  Emphasis
• Developed in 1970s at Berkeley
• Many commercial versions are available
• HSPICE is a robust industry standard
• Has many enhancements that we will use
• Written in FORTRAN for punch-card machines
• Circuits elements are called cards
• Complete description is called a SPICE deck

4
Writing Spice Decks

• Writing a SPICE deck is like writing a good
  program
• Plan sketch schematic on paper or in editor
• Modify existing decks whenever possible
• Code strive for clarity
• Start with name, email, date, purpose
• Generously comment
• Test
• Predict what results should be
• Compare with actual
• Garbage In, Garbage Out!

5
Example RC Circuit
rc.sp David_Harris_at_hmc.edu 2/2/03 Find the
response of RC circuit to rising
input   -----------------------------------------
------- Parameters and models -----------------
------------------------------- .option
post   ------------------------------------------
------ Simulation netlist ---------------------
--------------------------- Vin in gnd pwl 0ps 0
100ps 0 150ps 1.8 800ps 1.8 R1 in out 2k C1 out gn
d 100f   ----------------------------------------
-------- Stimulus -----------------------------
------------------- .tran 20ps 800ps .plot v(in)
v(out) .end
6
Result (Textual)
legend a v(in) b v(out)   time
v(in) (ab ) 0. 500.0000m
1.0000 1.5000 2.0000

0. 0.
-2------------------------------------------
------- 20.0000p 0. 2

40.0000p 0. 2
60.0000p 0.
2
80.0000p 0. 2

100.0000p 0. 2
120.0000p
720.000m b a
140.0000p 1.440 b
a
160.0000p 1.800 b
a 180.0000p
1.800 b
a 200.0000p 1.800
-------------b-----------------------------
a------ 220.0000p 1.800
b a
240.0000p 1.800 b
a 260.0000p 1.800
b
a 280.0000p 1.800
b a
300.0000p 1.800
b a 320.0000p
1.800 b
a 340.0000p 1.800
b a
360.0000p 1.800
b a 380.0000p 1.800
b
a 400.0000p 1.800 ----------------
-----------------b---------a------
420.0000p 1.800
b a 440.0000p 1.800
b
a 460.0000p 1.800
b a
480.0000p 1.800
b a 500.0000p 1.800
b
a 520.0000p 1.800
b a
540.0000p 1.800
b a 560.0000p 1.800
b
a 580.0000p 1.800
b a
600.0000p 1.800 --------------------------
--------------b--a------ 620.0000p 1.800
b
a 640.0000p 1.800
b a
660.0000p 1.800
b a 680.0000p 1.800
b
a 700.0000p 1.800
ba
720.0000p 1.800
ba 740.0000p 1.800

ba 760.0000p 1.800
ba
780.0000p 1.800
ba 800.0000p 1.800
-------------------------------------------
ba------

7
Result (Graphical)
8
Sources

• DC Source
• Vdd vdd gnd 2.5
• Piecewise Linear Source
• Vin in gnd pwl 0ps 0 100ps 0 150ps 1.8 800ps 1.8
• Pulsed Source
• Vck clk gnd PULSE 0 1.8 0ps 100ps 100ps 300ps
  800ps

9
SPICE Elements
10
Units
Ex 100 femptofarad capacitor 100fF, 100f,
100e-15
11
DC Analysis
mosiv.sp   ------------------------------------
------------ Parameters and models ------------
------------------------------------ .include
'../models/tsmc180/models.sp' .temp 70 .option
post   ------------------------------------------
------ Simulation netlist --------------------
---------------------------- nmos Vgs g gnd 0 Vds
d gnd 0 M1 d g gnd gnd NMOS W0.36u L0.18u   --
----------------------------------------------
Stimulus ----------------------------------------
-------- .dc Vds 0 1.8 0.05 SWEEP Vgs 0 1.8
0.3 .end
12
I-V Characteristics

• nMOS I-V
• Vgs dependence
• Saturation

13
MOSFET Elements

• M element for MOSFET
• Mname drain gate source body type
• Wltwidthgt Lltlengthgt
• ASltarea sourcegt AD ltarea draingt
• PSltperimeter sourcegt PDltperimeter draingt

14
Transient Analysis
inv.sp   Parameters and models --------------
---------------------------------- .param
SUPPLY1.8 .option scale90n .include
'../models/tsmc180/models.sp' .temp 70 .option
post   Simulation netlist ---------------------
--------------------------- Vdd vdd gnd 'SUPPLY' V
in a gnd PULSE 0 'SUPPLY' 50ps 0ps 0ps 100ps
200ps M1 y a gnd gnd NMOS W4 L2 AS20 PS18
AD20 PD18 M2 y a vdd vdd PMOS W8 L2 AS40
PS26 AD40 PD26   Stimulus ------------------
------------------------------ .tran 1ps
200ps .end
15
Transient Results

• Unloaded inverter
• Overshoot
• Very fast
• edges

16
Subcircuits

• Declare common elements as subcircuits
• Ex Fanout-of-4 Inverter Delay
• Reuse inv
• Shaping
• Loading

.subckt inv a y N4 P8 M1 y a gnd gnd NMOS W'N'
L2 AS'N5' PS'2N10' AD'N5'
PD'2N10' M2 y a vdd vdd PMOS W'P' L2
AS'P5' PS'2P10' AD'P5' PD'2P10' .ends
17
FO4 Inverter Delay
fo4.sp   Parameters and models --------------
--------------------------------------------------
------ .param SUPPLY1.8 .param H4 .option
scale90n .include '../models/tsmc180/models.sp' .
temp 70 .option post   Subcircuits ------------
--------------------------------------------------
-------- .global vdd gnd .include
'../lib/inv.sp'   Simulation netlist ----------
--------------------------------------------------
---------- Vdd vdd gnd 'SUPPLY' Vin a gnd PULSE 0
'SUPPLY' 0ps 100ps 100ps 500ps 1000ps X1 a b inv
shape input waveform X2 b c inv M'H'
reshape input waveform
.end
18
FO4 Inverter Delay (contd.)
X3 c d inv M'H2' device under
test X4 d e inv M'H3' load x5 e f inv M'H4
' load on load   Stimulus -------------------
--------------------------------------------------
- .tran 1ps 1000ps .measure tpdr rising prop
delay TRIG v(c) VAL'SUPPLY/2' FALL1
TARG v(d) VAL'SUPPLY/2' RISE1 .measure
tpdf falling prop delay TRIG v(c)
VAL'SUPPLY/2' RISE1 TARG v(d)
VAL'SUPPLY/2' FALL1 .measure tpd
param'(tpdrtpdf)/2' average prop
delay .measure trise rise time TRIG
v(d) VAL'0.2SUPPLY' RISE1 TARG
v(d) VAL'0.8SUPPLY' RISE1 .measure tfall
fall time TRIG v(d) VAL'0.8SUPPLY'
FALL1 TARG v(d) VAL'0.2SUPPLY' FALL1 .end
19
FO4 Results
20
Optimization

• HSPICE can automatically adjust parameters
• Seek value that optimizes some measurement
• Example Best P/N ratio
• Weve assumed 21 gives equal rise/fall delays
• But we see rise is actually slower than fall
• What P/N ratio gives equal delays?
• Strategies
• (1) run a bunch of sims with different P size
• (2) let HSPICE optimizer do it for us

21
p/n Optimization
fo4opt.sp   Parameters and models -----------
--------------------------------------------------
--------- .param SUPPLY1.8 .option
scale90n .include '../models/tsmc180/models.sp' .
temp 70 .option post   Subcircuits ------------
--------------------------------------------------
-------- .global vdd gnd .include
'../lib/inv.sp' Simulation netlist -----------
--------------------------------------------------
--------- Vdd vdd gnd 'SUPPLY' Vin a gnd PULSE 0
'SUPPLY' 0ps 100ps 100ps 500ps 1000ps X1 a b inv P
'P1' shape input waveform X2 b c inv P'P1' M
4 reshape input X3 c d inv P'P1' M16
device under test
22
p/n Optimization
X4 d e inv P'P1' M64 load X5 e f inv P'P1' M
256 load on load   Optimization
setup -------------------------------------------
--------------------------- .param
P1optrange(8,4,16) search from 4 to 16, guess
8 .model optmod opt itropt30 maximum of 30
iterations .measure bestratio param'P1/4'
compute best P/N ratio   Stimulus -------------
--------------------------------------------------
------- .tran 1ps 1000ps SWEEP OPTIMIZEoptrange
RESULTSdiff MODELoptmod .measure tpdr
rising propagation delay TRIG
v(c) VAL'SUPPLY/2' FALL1 TARG v(d)
VAL'SUPPLY/2' RISE1 .measure tpdf falling
propagation delay TRIG v(c)
VAL'SUPPLY/2' RISE1 TARG v(d)
VAL'SUPPLY/2' FALL1 .measure tpd
param'(tpdrtpdf)/2' goal0 average prop
delay .measure diff param'tpdr-tpdf' goal 0
diff between delays .end
23
p/n Results

• p/n ratio for equal delay is 3.61
• tpd tpdr tpdf 84 ps (slower than 21 ratio)
• Big pMOS transistors waste power too
• Seldom design for exactly equal delays
• What ratio gives lowest average delay?
• .tran 1ps 1000ps SWEEP OPTIMIZEoptrange
  RESULTStpd MODELoptmod
• p/n ratio of 1.41
• tpdr 87 ps, tpdf 59 ps, tpd 73 ps

24
Power Measurement

• HSPICE can measure power
• Instantaneous P(t)
• Or average P over some interval
• .print P(vdd)
• .measure pwr AVG P(vdd) FROM0ns TO10ns
• Power in single gate
• Connect to separate VDD supply
• Be careful about input power

25
Logical Effort

• Logical effort can be measured from simulation
• As with FO4 inverter, shape input, load output

26
Logical Effort Plots

• Plot tpd vs. h
• Normalize by t
• y-intercept is parasitic delay
• Slope is logical effort
• Delay fits straight line
• very well in any process
• as long as input slope is
• consistent

t 15 ps
27
Logical Effort Data

• For NAND gates in TSMC 180 nm process
• Notes
• Parasitic delay is greater for outer input
• Average logical effort is better than estimated

28
Comparison
29
Summary

• Introduction to SPICE
• DC Analysis
• Transient Analysis
• Subcircuits
• Optimization
• Power Measurement
• Logical Effort Characterization
