At-Grade Intersection Design

1

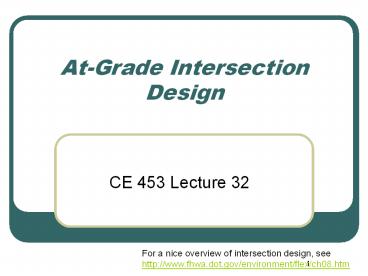

At-Grade Intersection Design

• CE 453 Lecture 32

For a nice overview of intersection design, see
http//www.fhwa.dot.gov/environment/flex/ch08.htm
2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
Design Vehicle
Source www\fhwa\Flexibility in Highway Design -
Chapter 8 - FHWA.htm
6
Curb Radius

• Factors of influence
• Design vehicle
• Intersection angle
• Approach width and parking
• Channelization
• Pedestrians
• Allowable speed reduction

7
Curb Radius

• Green Book Minimums assume
• Turning Speed LTE 10 mph
• Vehicle properly positioned beginning and end
• Vehicle doesnt cross inner edge of pavement

8
Radius Design

• Simple curve
• Low speed collector, local streets
• Simple circle with taper
• 3-centered compound curve

9
Curb Radius

• General Guidance
• 10 to 25 ft. local
• 25 to 30 ft. collectors
• 30 to 35 ft. unchannelized intersections with
  arterials

Source www\fhwa\Flexibility in Highway Design -
Chapter 8 - FHWA.htm
10
Minimize lane encroachment
R 15 feet
11
Simple Curve (passenger car template)
12
Simple Curve with Taper (passenger car template)
13
Compound curves (passenger car template)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
High Speed Turns
18
Intersection Design Considerations for Pedestrians
19
(No Transcript)
20
Provide median refuge to provide crossing in
stages
21
Provision of crosswalks
22
Intersections on High Speed Rural Divided
Expressways - Tom Welch, State Traffic Safety
Engineer
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
High speed expressway intersections

• We are building many rural expressways
• At-grade intersections can be very dangerous
• Dont use traffic signals as a safety measure (in
  most cases) - leave as 2 way stop or replace with
  interchange
• There are alternate measures

28
Alternate measures

• install double yellow center line and stop bars
  in the median
• maintain and replace frequently
• When resurfacing, look for opportunities to
  install more and longer left and right turn lanes
• Paving shoulders near the intersections
• Build "T intersections or even offset "T"
  intersections
• much fewer conflict points
• Use a restricted median
• allow lefts in and rights in and out
• prohibit lefts out and cross traffic

29
Alternate measures

• ask local newspaper to publish an article which
  explains the proper way to cross and enter a
  divided roadway.
• stop, look left only and enter into the median
• stop in the median
• look right and then cross or turn left onto the
  expressway
• Wisconsin pioneered advisory speed limit 10mph
  below the posted speed
• Signs need to be on both sides to work (where
  fast aggressive drivers operate)
• In low volumes, traffic may not slow down
• In peak hours (most Important because most
  turns), almost always one person in the platoon
  slows down - whole platoon slows

30
(No Transcript)
31
(No Transcript)
32
US 65 Bondurant Example

• Speed study done before and after
• Some problems with the speed plates
• Intense enforcement during the before and after
  period
• Data shows promise

33
(No Transcript)
34
Another idea

• median sign west on Boone on US-30
• Initially solar powered strobe light above the
  sign to draw attention
• was distracting to drivers on US- 30

35
Change Blindness

• a psychological phenomenon
• In the past, motorists would pull up to a stop
  sign at a rural two lane highway and when they
  looked down the highway there would all kinds of
  buildings, fence posts tree etc along the narrow
  R/W and roadway
• They could easily note the change in position of
  approaching vehicles and better judge the
  approaching vehicular closing speed.
• Nowadays on our expressways, we cleanout the wide
  R/W, there are fewer buildings and trees along
  the R/W etc.
• So, now there is nothing left to help the driver
  judge the change in position of the approaching
  vehicles on the expressway.
• Imagine now a 75 year old driver with restricted
  eye sight, trying to judge the speed of a light
  colored vehicle up against the gray/ white
  horizon.
• Tough to judge approaching speeds

36
Overhead intersection beacons?

• Recent research in Minnesota
• ineffective
• confuse motorists (drivers may think the flashing
  red beacon means 4 way stop)
• now removing over head flashing intersection
  beacons in favor of red beacon on the stop sign

37
Traffic circles

• Rotaries large diameter gt 300 ft, allows speeds
  gt 30 mph with minimum horizontal deflection of
  the path of through traffic
• Neighborhood traffic circle small diameter, for
  local streets, traffic calming
• Roundabout
• Yield control at each approach
• Separation of conflicting movements
• Speed lt 30 mph (typically)

38
