Title: Kein Folientitel


1

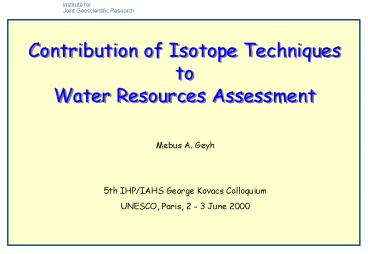

Contribution of Isotope Techniques
to
Water Resources Assessment
Mebus A. Geyh 5th IHP/IAHS George Kovacs
Colloquium UNESCO, Paris, 2 - 3 June 2000
2
(No Transcript)
3
Khartoum, Sudan
How much more groundwater can be pumped for the
drinking water supply ?
4
(No Transcript)
5
(No Transcript)
6
1963/1964
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
Conclusion
  • Present-day groundwater recharge by the Nile
    river is about 20 of the pumping rate.
  • Mainly fossil groundwater is pumped for the
    drinking water supply recharged some 4000 yr
    BP.
  • The piezometric surface is mainly the relict of
    the palaeo-groundwater.

14
Thar Desert, Pakistan Is fresh groundwater
recharged ?
15
Cholistan
Area of hydrogeological reconnaissance 15,500
km2 habitants 300,000 heads
of animals 2,000,000 minimum
temperature -3C maximum
temperature 50C annual
precipitation rate lt200 mm/yr potential
evaporation rate -2700 mm/yr
16
10.000 mio m3/yr fresh groundwater in the Thar
desert !
  • How large was the groundwater recharge rate ?
  • When was the fresh groundwater recharged ?
  • How was the fresh groundwater recharged ?

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
Conclusion
  • Recharge occurred between 16,000 to 4000 yr BP.
  • Recharge rate was about 5 mm/yr in the past while
    that of today is around 1 mm/yr.
  • Recharge occurred from innundations of the
    Old Hakra River.

23
Bandung, Indonesia
24
Drinking Water for Bandung
  • Are the Lembang and Bandung Basins
    hydraulically connected ?
  • How large is the vulnerability to pollute the
    fesh water resources ?

25
(No Transcript)
26
(No Transcript)
27
Lembang water
28
(No Transcript)
29
Conclusion
  • More than 30 of the pumped water is
    recharged in the Lembang Basin.
  • The residence time of the pumped ground- water
    ranges from 1000 to 10,000 yr.

30
Potential of Isotope Hydrological Methods
  • Geohydraulic parameters
  • aquifer architecture
  • hydraulic conductivity
  • paleohydrological situation
  • Water components of the hydrological cycle
  • origin of water components
  • sources of and vulnerability to pollution
  • Groundwater movement and mass transport
  • pathways, recharge and discharge areas
  • transit and residence times / water balance
  • estimation of recharge and discharge rates
  • interconnection of surface water and
    groundwater
  • mixing processes and ratios (e.g. salinization)
  • tracing overexploitation and re-use of waste
    water
