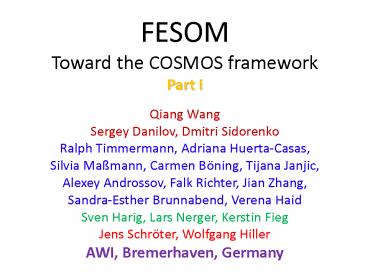

FESOM Toward the COSMOS framework Part I Qiang
Wang Sergey Danilov, Dmitri Sidorenko Ralph
Timmermann, Adriana Huerta-Casas, Silvia Maßmann,
Carmen Böning, Tijana Janjic, Alexey Androssov,
Falk Richter, Jian Zhang, Sandra-Esther
Brunnabend, Verena Haid Sven Harig, Lars Nerger,
Kerstin Fieg Jens Schröter, Wolfgang Hiller AWI,
Bremerhaven, Germany
2
Outline

• Model overview
• Validation / Intercomparison
• Examples of application
• Conclusion

3
overview
FESOM
I. The ocean component FEOM

• hydrostatic primitive equation OGCM(Danilov et
  al. 2004, Wang et al., 2008, Timmermann et al.,
  2009)
• continuous linear basis functions
• triangles in 2D
• tetrahedra or prism in 3D
• different grid types (z-level shaved cells
  sigma hybrid)

4
overview
FESOM
I. The ocean component FEOM

• free surface / non linear free
• GentMcWilliams parameterization
• Laplacian, bi-harm., Smagorinski viscosities
• vertical mixing schemes
• PP, MY2.5,
• f(Ri, Monin-Obukhov-length, TB2004)
• advection schemes
• TG, GLS, FCT
• implicit explicit vertical mixing, adv.,
  Coriolis
• Tides via open boundary (semi-impl. ssh/U)

5
Varying resolution with focus on northwestern
Wedell Sea Joao-Marcelo Absy
6
overview
FESOM
II. The ice component FESIM

• thermodynamics surface energy balances
  (ParkinsonWashington, 1979)prognostic snow
  layer incl. snow-ice-conversion, but no internal
  heat storage
• advection GLS, FCT

• momentum balance (dynamics)rheologies 1.
  viscous-plastic (Hibler, 1979)2.
  elastic-viscous-plastic (HunkeDukowicz, 1997)

III. Coupling of ocean-ice

• formulated on the same surface triangle mesh
• by exchange of momentum, fresh water, and heat
• use ocean surface elevation

Heat flux in a partially ice-covered element
7
overview
Benchmark on Power6 (DKRZ) 700 000 mesh nodes
8
overview
9
validation
10
FESOM ice extent and volume
validation
Timmermann et al., 2009
11
FESOMice thickness validationvs.Upward
Looking Sonar (Fahrbach)
validation
Timmermann et al., 2009
12
Intercomparison
Model intercomparison in Arctic ocean-ice
simulations FESOM, MITgcm, NAOSIM

• AWI-AOMIP examine the ability of Arctic Ocean
  models, understand the strength and weakness of
  the models, obtain useful information on
  improving the models

13
Intercomparison
14
ice concentration
March mean
September mean
All months mean
FESOM
MITgcm
Observations
15
ice thickness
All months mean
FESOM
MITgcm
16
Intercomparison
1975-2000 mean ice draft/thickness
Rothrock et al., 2008
FESOM
17
Example 1
Overflow dynamics in the West Ross Sea
18
Example 1
19
Example 1
without tides
Impact on mixing and plume path
Spring tide
20
Example 2
East Greenland Coastal Current and Spill Jet
21
Example 2
Sect 4
Sect 2
Sect 3
August mean
Sect 1
Kangerdlugssuaq Trough
Sermilik Trough
4
3
2
1
22
Example 2
Sect 4
Sect 2
Sect 3
February mean
Sect 1
Kangerdlugssuaq Trough
Sermilik Trough
4
3
2
1
23
Comparison FESOM (diff0, no initial polynya)
AMSR after 36h
Example 3
David Schröder (Uni Trier) / Ralph Timmermann
(AWI)
24
Comparison FESOM (diff0, no initial polynya)
AMSR after 50h
David Schröder (Uni Trier) / Ralph Timmermann
(AWI)
25
Comparison FESOM (diff0, no initial polynya)
AMSR after 74h
David Schröder (Uni Trier) / Ralph Timmermann
(AWI)
26
Conclusion / plan
Toward joining the COSMOS Network
ECHAM5
Vegetation Weathering
Chemistry
Isotope Proxy Models
Ice Sheets Model
OASIS
MPI-OM
FESOM
HAMOCC
