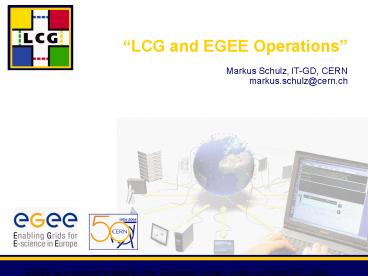

LCG and EGEE Operations Markus Schulz,
IT-GD, CERNmarkus.schulz_at_cern.ch
EGEE is a project funded by the European Union
under contract IST-2003-508833
2
Outline

• LCG
• software
• EGEE
• History of LCG production service
• Impact of Data Challenges on operations
• Problems
• Operating LCG
• Preparing Releases
• Support
• how it was planned
• how it was done
• Summary of the operations workshop at CERN
• New Structure
• Summary
• Interoperation (status by L. Field)

3
EGEE in a nutshell

• Goal
• Create a European wide production quality grid
  infrastructure on top of present regional grid
  programs
• despite its name the project has a worldwide
  scope
• multi science project
• Scale
• 70 leading institutes in 27 countries
• 300 FTEs
• Aim 20000 CPUs
• Initially 2 years project
• Activities
• 48 service activities (operation, support)
• 24 middleware re-engineering
• 28 management, training, dissemination,
  international cooperation
• Builds on
• LCG to establish a grid operations service
• joint team for deployment and operations
• Experience gained from running services for the
  LHC experiments
• HEP experiments are the pilot application for
  EGEE

4
EGEE Middleware

• New design driven by requirements of Experiments,
  Bio-Medicals and Operations (strong multi science
  aspect)
• Process includes partners from EU and USA
• Involves experienced Middleware providers from
  AliEn, EDG, VDT
• Monthly meetings in EU and USA
• Prototyping approach as required by ARDA
• Allowing for rapid release cycles and fast
  feedback from early adopters
• Formal Integration Testing mechanisms driven
  from CERN
• Should ensure quality coherence amongst the
  developments coming from distributed teams
• Includes formal defect tracking system
• First stabilized version to be available by the
  end of the year
• Initial prototype however made available as of
  May04, with currently 2 releases/month tackling
  users/testing feedback
• Target is to deploy components onto the LCG
  preproduction service asap.

5
The LCG Project (and what it isnt)

• Mission
• To prepare, deploy and operate the computing
  environment for the experiments to analyze the
  data from the LHC detectors
• Two phases
• Phase 1 2002 2005
• Build a prototype, based on existing grid
  middleware
• Deploy and run a production service
• Produce the Technical Design Report for the final
  system
• Phase 2 2006 2008
• Build and commission the initial LHC computing
  environment
• LCG is NOT a development project for middleware
• but problem fixing is permitted (even if writing
  code is required)
• LCG-2 is the first production service for EGEE
• Ian Bird is Operations Officer for both
  projects

6
LCG-2 Software

• LCG-2 core packages
• VDT (Globus2, condor)
• EDG
• Resource Broker, job submission tools
• Replica Management tools lcg tools
• One central RMC and LRC for each VO, located at
  CERN, ORACLE backend
• SRM gridFtp based access to MSS (Castor,
  dCache)
• Several bits from other WPs (Config objects,
  InfoProviders, Packaging)
• GLUE 1.1 (Information schema) few essential LCG
  extensions
• (MDS) based Information System with significant
  LCG enhancements (replacements, simplified,
  scalability, LCG-BDII)
• Mechanism for application (experiment) software
  distribution
• VOMs (in preparation)
• Almost all components have gone through some
  reengineering
• robustness, scalability,efficiency
• adaptation to local fabrics
• The services are now quite stable and the
  performance and scalability has been
  significantly improved (within the limits of the
  current architecture)

7
Experience

• Jan 2003 GDB agreed to take VDT and EDG
  components
• September 2003 LCG-1
• Extensive certification process
• Integrated 32 sites 300 CPUs first use for
  production
• December 2003 LCG-2
• Deployed in January to 8 core sites
• Introduced a pre-production service for the
  experiments
• Alternative packaging (tool based and generic
  installation guides)
• Mai 2004 -gt now monthly incremental releases (not
  all distributed)
• Driven by the experiences from the data
  challenges
• Balance between stable operation and improved
  versions (driven by users)
• 2-1-0, 2-1-1, 2-2-0, 2-3-0
• Production services RBs BDIIs patched on demand

• gt 90 sites 9300 CPUs (3-5 failed to come online)

8
Adding Sites

• Sites contact GD Group or Regional Operation
  Center
• Sites go to the release page
• Sites decide on manual or tool based installation
• Sites provide security and contact information
• GD forwards this to GOC and security officer
• gt200 pages of documentation and FAQs are
  available
• Sites install and use provided tests for
  debugging
• large sites integrate their local batch system
• support from ROCs or CERN
• CERN GD certifies sites
• adds them to the monitoring and information
  system
• sites are daily re-certified and problems traced
  in SAVANNAH
• Experiments install their software and add the
  site to their IS
• Adding new sites is now a quite smooth process
• this takes between a few days to few weeks

worked 90 times
failed 3-5 times
9
Adding a Site
10
LCG-2 Status 18/11/2004
new interested sites should look here release
Cyprus

• Total
• 90 Sites
• 9500 CPUs
• 6.5 PByte

11
Preparing a Release
CT Certification Testing
GDB Grid Deployment Board

• Monthly process
• Gathering of new material
• Prioritization
• Integration of items on list
• Deployment on testbeds
• First tests
• feedback
• Release to EIS testbed for experiment validation
• Full testing (functional and stress)
• feedback to patch/component providers
• final list of new components
• Internal release (LCFGng)
• On demand
• Preparation/Update of release notes for LCFGng
• Preparation/Update of manual install
  documentation
• Test installations on GIS testbeds
• Announcement on the LCG-Rollout list

EIS Experiment Integration Support
Applications
GIS Grid Infrastructure Support
Sites
12
Preparing a ReleaseInitial List,Prioritization,In
tegration,EIS,StressTest
CT
LCFGng change record
13
Preparing a ReleasePreparations for
Distribution, Upgrading
Sites upgrade at own pace
Certification is run daily
14
Process Experience

• The process was decisive to improve the quality
  of the middleware
• The process is time consuming
• There are many sequential operations
• The format of the internal and external release
  will be unified
• Multiple packaging formats slow down release
  preparation
• tool based (LCFGng)
• manual (tar ball based)
• All components are treated equal
• same level of testing for core components and non
  vital tools
• special process for acceptin tools already in use
  by other project needed
• Process of including new components not
  sufficient transparent
• Picking a good time for a new release is
  difficult
• conflict between users (NOW) and sites (planned)
• Upgrading has proven to be a high risk operation
• some sites suffered from acute configuration
  amnesia
• Process was one of the topics in the LCG
  Operations Workshop

15
Impact of Data Challenges

• Large scale production effort of the LHC
  experiments
• test and validate the computing models
• produce needed simulated data
• test experiments production frame works and
  software
• test the provided grid middleware
• test the services provided by LCG-2
• All experiments used LCG-2 for part of their
  production

16
Data Challenges

• Phase I
• 7.7 Million events fully simulated (Geant 4) in
  95.000 jobs
• 22 TByte
• Total CPU 972 MSI-2k hours
• gt40 produced on LCG-2 (used LCG-2, GRID3,
  NorduGrid)

17
Data Challenges
18
Data Challenges
3-5 106/day
LCG restarted
LCG paused
LCG in action
1.8 106/day
DIRAC alone
19
Problems during the data challenges

• All experiments encountered on LCG-2 similar
  problems
• LCG sites suffering from configuration and
  operational problems
• not adequate resources on some sites (hardware,
  human..)
• this is now the main source of failures
• Load balancing between different sites is
  problematic
• jobs can be attracted to sites that have no
  adequate resources
• modern batch systems are too complex and dynamic
  to summarize their behavior in a few values in
  the IS
• Identification and location of problems in LCG-2
  is difficult
• distributed environment, access to many logfiles
  needed (but hard)..
• status of monitoring tools
• Handling thousands of jobs is time consuming and
  tedious
• Support for bulk operation is not adequate
• Performance and scalability of services
• storage (access and number of files)
• job submission
• information system
• file catalogues
• Services suffered from hardware problems
• (no fail over (design problem))

DC summary
20
Operational issues (selection)

• Slow response from sites
• Upgrades, response to problems, etc.
• Problems reported daily some problems last for
  weeks
• Lack of staff available to fix problems
• Vacation period, other high priority tasks
• Various mis-configurations (see next slide)
• Lack of configuration management problems that
  are fixed re-appear
• Lack of fabric management (mostly smaller sites)
• scratch space, single nodes drain queues,
  incomplete upgrades, .
• Lack of understanding
• Admins reformat disks of SE
• Provided documentation often not (carefully) read

• new activity to develop adaptive documentation
• simpler way to install middleware (YAIM)
• opens ways to maintain middleware remotely in
  user space
• Firewall issues
• often less than optimal coordination between grid
  admins and firewall maintainers
• openPBS problems
• Scalability, robustness (switching to torque
  helps)

21
Site (mis) - configurations

• Site mis-configuration was responsible for most
  of the problems that occurred during the
  experiments Data Challenges. Here is a
  non-complete list of problems
• The variable VO ltVOgt SW DIR points to a non
  existent area on WNs.
• The ESM is not allowed to write in the area
  dedicated to the software installation
• Only one certificate allowed to be mapped to
  the ESM local account
• Wrong information published in the information
  system (Glue Object Classes not linked)
• Queue time limits published in minutes instead
  of seconds and not normalized
• /etc/ld.so.conf not properly configured. Shared
  libraries not found.
• Machines not synchronized in time
• Grid-mapfiles not properly built
• Pool accounts not created but the rest of the
  tools configured with pool accounts
• Firewall issues
• CA files not properly installed
• NFS problems for home directories or ESM areas
• Services configured to use the wrong/no
  Information Index (BDII)
• Wrong user profiles
• Default user shell environment too big
• Only partly related to middleware complexity

integrated all common small problems into
ONE BIG PROBLEM
22
Operating Services for DCs

• Multiple instances of core services for each of
  the experiments
• separates problems, avoids interference between
  experiments
• improves availability
• allows experiments to maintain individual
  configuration
• addresses scalability to some degree
• Monitoring tools for services currently not
  adequate
• tools under development to implement control
  system
• moving tools to common transport and storage
  format (R-GMA)
• Access to storage via load balanced interfaces
• CASTOR
• dCache
• Load balancing service for the Information system
  index service
• load balanced BDII deployed at CERN

DC summary
23
Support during the DCs

• User (Experiment) Support
• GD at CERN worked very close with the experiments
  production managers
• Informal exchange (e-mail, meetings, phone)
• No Secrets approach, GD people on experiments
  mail lists and vice versa
• ensured fast response
• tracking of problems tedious, but both sites have
  been patient
• clear learning curve on BOTH sites
• LCG GGUS (grid user support) at FZK became
  operational after start of the DCs
• due to the importance of the DCs the experiments
  switch slowly to the new service
• Very good end user documentation by GD-EIS
• Dedicated testbed for experiments with next LCG-2
  release
• rapid feedback, influenced what made it into the
  next release
• Installation and site operations support
• GD prepared releases and supported sites
  (certification, re-certification)
• Regional centres supported their local sites
  (some more, some less)
• Community style help via mailing list (high
  traffic!!)
• FAQ lists for trouble shooting and configuration
  issues Taipei RAL

24
Support during the DCs

• Operations Service
• RAL (UK) is leading sub-project on developing
  operations services
• Initial prototype http//www.grid-support.ac.uk/GO
  C/
• Basic monitoring tools
• Mail lists for problem resolution
• Working on defining policies for operation,
  responsibilities (draft document)
• Working on grid wide accounting (APPLE)
• Monitoring
• GridICE (development of DataTag Nagios-based
  tools)
• GridPP job submission monitoring, every few
  hours, all RBs, allSites
• Information system monitoring and consistency
  check every 5 minutes http//goc.grid.sinica.edu.t
  w/gstat/
• CERN GD daily re-certification of sites
  (including history)
• escalation procedure
• tracing of site specific problems via problem
  tracking tool
• tests core services and configuration

25
Screen Shots
26
Screen Shots
27
Some More Monitoring
28
Monitoring and Controls

• Many monitoring tools and sources of information
  available
• Hard to combine information to spot problems
  early
• Split of monitoring into three parts
• sensors
• transport and storage
• display
• Transport and storage based on R-GMA monitoring
  bus
• Already ported
• GIIS monitor, Re-Certification, Jobsubmission,
  (GridICE, (LB of RB))
• general display based on R-GMA
• Building of complex alarms via sql queries
• Controls
• Taipei is building a message system that can be
  used for interaction with sites

29
Problem HandlingPLAN for LCG
Monitoring/Follow-up
Triage VO / GRID
GOC
GGUS (Remedy)
GD CERN
Escalation
30
Problem HandlingOperation (most cases)
Community
VO A
Rollout Mailing List
VO B
GGUS
VO C
Triage
S-Site-2
GOC
GD CERN
S-Site-1
Monitoring Certification Follow-Up FAQs
Monitoring FAQs
S-Site-3
31
LCG Workshop on Operational Issues

• Motivation
• LCG -gt (LCGEGEE) transition requires changes
• Lessons learned need to be implemented
• Many different activities need to be coordinated
• 02 - 04 November at CERN
• gt80 participants including from GRID3 and
  NorduGrid
• Agenda Here
• 1.5 days of plenary sessions
• describe status and stimulate discussion
• 1 day parallel/joint working groups
• very concrete work,
• results into creation of task lists with names
  attached to items
• 0.5 days of reports of the WG

32
LCG Workshop on Operational IssuesWGs I

• Operational Security
• Incident Handling Process
• Variance in site support availability
• Reporting Channels
• Service Challenges
• Operational Support
• Workflow for operations security actions
• What tools are needed to implement the model
• 24X7 global support
• sharing operational load (taking turns)
• Communication
• Problem Tracking System
• Defining Responsibilities
• problem follow-up
• deployment of new releases
• Interface to User Support

33
LCG Workshop on Operational IssuesWGs II

• Fabric Management
• System installations
• Batch/scheduling Systems
• Fabric monitoring
• Software installation
• Representation of site status (load) in the
  Information System
• Software Management
• Operations on and for VOs (add/remove/service
  discovery)
• Fault tolerance, operations on running services
  (stop,upgrades, re-starts)
• Link to developers
• What level of intrusion can be tolerated on the
  WNs (farm nodes)
• application (experiment) software installation
• Removing/(re-adding) sites with (fixed)troubles
• Multiple views in the information system
  (maintenance)

34
LCG Workshop on Operational IssuesWGs III

• User Support
• Defining what User Support means
• Models for implementing a working user support
• need for a Central User Support Coordination Team
  (CUSC)
• mandate and tasks
• distributed/central (CUSC/RUSC)
• workflow
• VO-support
• continuous support on integrating the VOs
  software with the middleware
• end user documentation
• FAQs

35
LCG Workshop on Operational IssuesSummary

• Very productive workshop
• Partners (sites) assumed responsibility for tasks
• Discussions very much focused on practical
  matters
• Some problems ask for architectural changes
• gLite has to address these
• It became clear that not all sites are created
  equal
• Removing troubled sites is inherently problematic
• removing storage can have grid wide impact
• Key issues in all aspects is to define split
  between
• Local,Regional and Central control and
  responsibility
• All WGs discussed communication

36
New Operations Model

• EGEE Structure
• OMC Operations Management Center
• CICs Core Infrastructure Centers
• services like file catalogues, RBs, central
  infrastructure
• operation support
• CERN,France,Italy,UK, (Russia,Taipei)
• ROCs Regional Operation Centers
• regional support
• France,Italy,UKIreland,GermanySwitzerland,N-Euro
  pe,SW-Europe,Central Europe, Russia
• RCs Resource Centers
• data and CPUs

37
New Operations Model

• Operations Center role rotates through the CICs
• CIC on duty for one week
• Procedures and tasks are currently defined
• first operations manual is available (living
  document)
• tools, frequency of checks, escalation
  procedures, hand over procedures
• CIC on duty website
• Problems are tracked with a tracking tool
• now central in Savannah
• migration to GGUS (remedy) with link to ROCs PT
  tools
• problems can be added at GGUS or ROC level
• CICs monitor service, spot and track problems
• interact with sites on short term problems
  (service restart etc,)
• interact with ROCs on longer, non trivial
  problems
• all communication with a site is visible for the
  ROC
• build FAQs
• ROCs support
• installation, first certification
• resolving complex problems

38
New Operations Model
OMC
Other Grid
ROC
ROC
Other Grid
ROC
ROC
ROC
RC
RC
RC
RC
RC
RC
RC
39
Summary

• LCG-2 services have been supporting the data
  challenges
• Many middleware problems have been found many
  addressed
• Middleware itself is reasonably stable
• Biggest outstanding issues are related to
  providing and maintaining stable operations
• Future middleware has to take this into account
• Must be more manageable, trivial to configure and
  install
• Management and monitoring must be built into
  services from the start on
• Operational Workshop has started many activities
• Follow-up and keeping up the momentum is now
  essential
• Indicates a clear shift away from the
  CERNtralized operation
• CIC on duty is a first step to distribute
  operational load
