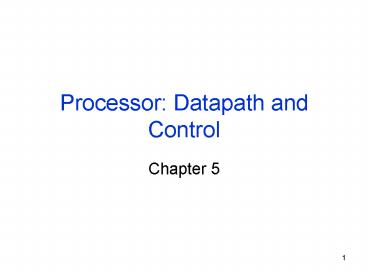

Processor: Datapath and Control

1
Processor Datapath and Control

• Chapter 5

2
Components of a Computer
3
Code Stored in Memory
Memory
Processor
Devices

• 000000 00000 00101 0001000010000000
• 000000 00100 00010 0001000000100000
• 100011 00010 01111 0000000000000000
• 100011 00010 10000 0000000000000100
• 101011 00010 10000 0000000000000000
• 101011 00010 01111 0000000000000100
• 000000 11111 00000 0000000000001000

Control
Input
Datapath
Output
4
Processor Fetches an Instruction
Processor fetches an instruction from memory
Memory
Processor
Devices

• 000000 00000 00101 0001000010000000
• 000000 00100 00010 0001000000100000
• 100011 00010 01111 0000000000000000
• 100011 00010 10000 0000000000000100
• 101011 00010 10000 0000000000000000
• 101011 00010 01111 0000000000000100
• 000000 11111 00000 0000000000001000

Control
Input
Datapath
Output
5
Control Decodes the Instruction
Control decodes the instruction to determine what
to execute
Processor
Devices
Control

• 000000 00100 00010 0001000000100000

Memory
Input
Datapath
Output
6
Datapath Executes the Instruction
Datapath executes the instruction as directed by
control
Processor
Devices
Control

• 000000 00100 00010 0001000000100000

Memory
Input
Datapath

• contents Reg 4 ADD contents Reg 2
• results put in Reg 2

Output
7
What Happens Next?
Memory
Processor
Devices

• 000000 00000 00101 0001000010000000
• 000000 00100 00010 0001000000100000
• 100011 00010 01111 0000000000000000
• 100011 00010 10000 0000000000000100
• 101011 00010 10000 0000000000000000
• 101011 00010 01111 0000000000000100
• 000000 11111 00000 0000000000001000

Control
Input
Datapath
Output
8
Output Data Stored in Memory
At program completion the data to be output
resides in memory
Memory
Processor
Devices
Control
Input

• 00000100010100000000000000000000
• 00000000010011110000000000000100
• 00000011111000000000000000001000

Datapath
Output
9
Processor

• Two main components
• Datapath
• Control

10
Design of Processor

1. Analyze the instruction set architecture
2. Select the datapath elements each instruction
   needs
3. Assemble the datapath
4. determine the controls required
5. Assemble the control logic

11
A Basic MIPS Implementation

• will implement the following subset of MIPS core
  instructions
• lw, sw
• add, sub, and, or, slt
• beq, j

12
Steps in executing add instruction

• add t0, t1, t2
• Send PC to memory that contains the code and
  fetch instruction
• PC PC4
• Read t1 and t2 from register file
• Perform t1 t2
• Store result in t0

13
Steps in executing lw instruction

• lw t0, offset(t1)
• Send PC to memory that contains the code and
  fetch instruction
• PC PC4
• Read t1 from register file
• Perform t1 sign-extend(offset)
• Read value at Memt1 sign-extend(offset)
• Store result in t0

14
Steps in executing beq instruction

• beq t0, t1, Label
• Send PC to memory that contains the code and
  fetch instruction
• PC PC4
• Read t0 and t1 from register file
• Perform t0 - t1
• If result 0, set PCLabel

15
Steps in implementing these instructions

• Common steps
• Send PC to memory that contains the code and
  fetch the instruction
• Set PC PC4
• Read one or two registers
• Steps dependent on instruction class
• Use ALU
• Arithmetic/logical instr for operation execution
• lw/sw for address calculation
• beq for comparison
• Update memory or registers
• lw/sw read or write to memory
• Arithmetic/logical instr write to register
• beq updates PC

16
Components needed for Fetching and Incrementing PC
17
Datapath for Fetching and Incrementing PC
18
Components needed for R-format Instructions
add t0, t1, t2 t0 t1 t2 and t0, t1,
t2 t0 t1 AND t2
19
Register File

• Consists of a set of 32 registers that can be
  read and written
• Registers built from D flip-flops
• has two read ports and one write port
• Register number are 5 bit long
• To write, you need three inputs
• a register number, the data to write, and a clock
  (not shown explicitly) that controls the writing
  into the register
• The register content will change on rising clock
  edge

5
5
5
20
Portion of datapath for R-format instruction
4
rs
rt
rd
31-26 25-21 20-16 15-11 10-6 5-0
opcode rs rt rd shamt funct
R-format
21
Components needed for load and store instructions
lw t0, offset(t1) t0Memt1
se(offset) sw t0, offset(t1) Memt1
se(offset)t0
22
Memory Unit
MemRead

• MemRead to be asserted to read
• MemWrite to be asserted to write
• Both MemRead and MemWrite not to be asserted in
  same clock cycle
• Memory is edge triggered for writes

Address
ReadData
Write Data
MemWrite
23
Load/Store instruction datapath
lw t0, offset(t1) t0Memt1
se(offset) sw t0, offset(t1) Memt1
se(offset)t0
4
31-26 25-21 20-16 15-0
opcode rs rt offset
I-format
24
Load instruction datapath
lw t0, offset(t1) t0Memt1 se(offset)
4
rs
rt
offset
31-26 25-21 20-16 15-0
opcode rs rt offset
I-format
25
Store instruction datapath
sw t0, offset(t1) Memt1 se(offset)t0
4
rs
rt
offset
31-26 25-21 20-16 15-0
opcode rs rt offset
I-format
26
Branch Instruction Datapath
rs
rt
31-26 25-21 20-16 15-0
opcode rs rt C
C
If (rs-rt)0, PCPC4(C.4)
27
Creating a single Datapath

• Simplest Design Single Cycle Implementation
• Any instruction takes one clock cycle to execute
• This means no datapath elements can be used more
  than once per instruction
• But datapath elements can be shared by different
  instruction flows

28
4
4
29
Composite Datapath for R-format and load/store
instructions
30
Composite Datapath for R-format and load/store
instructions
4

P C
Instruction Memory
31
Composite datapath for R-format, load/store, and
branch instructions
32
Datapath for for R-format, load/store, and branch
instructions
ALU Operation
4
33
Instruction RegDst RegWrite ALUSrc MemRead MemWrite MemToReg PCSrc ALU operation
R-format 1 1 0 0 0 0 0 0000(and) 0001(or) 0010(add) 0110(sub)
lw 0 1 1 1 0 1 0 0010 (add)
sw X 0 1 0 1 X 0 0010 (add)
beq x 0 0 0 0 X 1 or 0 0110 (sub)
34
Control

• We next add the control unit that generates
• write signal for each state element
• control signals for each multiplexer
• ALU control signal
• Input to control unit instruction opcode and
  function code

35
Control Unit

• Divided into two parts
• Main Control Unit
• Input 6-bit opcode
• Output all control signals for Muxes, RegWrite,
  MemRead, MemWrite and a 2-bit ALUOp signal
• ALU Control Unit
• Input 2-bit ALUOp signal generated from Main
  Control Unit and 6-bit instruction function code
• Output 4-bit ALU control signal

36
(No Transcript)
37
Truth Table for Main Control Unit
38
Main Control Unit
39
ALU Control Unit

• Must describe hardware to compute 4-bit ALU
  control input given
• 2-bit ALUOp signal from Main Control Unit
• function code for arithmetic
• Describe it using a truth table (can turn into
  gates)

40
ALU Control bits
0010
0010
0110
0010
0110
0000
0001
0111
41
ALU Control Unit
