Comparison of Latches and Flip-Flops

1

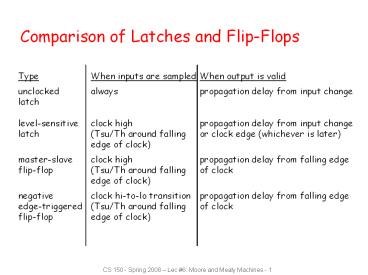

Comparison of Latches and Flip-Flops
Type When inputs are sampled When output is
valid unclocked always propagation delay from
input changelatch level-sensitive clock
high propagation delay from input
changelatch (Tsu/Th around falling or clock edge
(whichever is later) edge of clock) master-slave
clock high propagation delay from falling
edgeflip-flop (Tsu/Th around falling of
clock edge of clock) negative clock hi-to-lo
transition propagation delay from falling
edgeedge-triggered (Tsu/Th around falling of
clockflip-flop edge of clock)
2
Typical Timing Specifications

• Positive edge-triggered D flip-flop
• Setup and hold times
• Minimum clock width
• Propagation delays (low to high, high to low, max
  and typical)

all measurements are made from the clocking event
that is, the rising edge of the clock
3
Cascading Edge-triggered Flip-Flops

• Shift register
• New value goes into first stage
• While previous value of first stage goes into
  second stage
• Consider setup/hold/propagation delays (prop must
  be gt hold)

100
IN Q0 Q1 CLK
4
Cascading Edge-triggered Flip-Flops

• Shift register
• New value goes into first stage
• While previous value of first stage goes into
  second stage
• Consider setup/hold/propagation delays (prop must
  be gt hold)

Clk1
Delay
100
IN Q0 Q1 CLK
Clk1
5
Cascading Edge-triggered Flip-Flops (contd)

• Why this works
• Propagation delays exceed hold times
• Clock width constraint exceeds setup time
• This guarantees following stage will latch
  current value before it changes to new value

In Q0 Q1 CLK
Tsu 4ns
Tsu 4ns
timing constraints guarantee proper operation
of cascaded components
Tp 3ns
Tp 3ns
assumes infinitely fast distribution of the clock
Th 2ns
Th 2ns
6
Clock Skew

• The problem
• Correct behavior assumes next state of all
  storage elementsdetermined by all storage
  elements at the same time
• Difficult in high-performance systems because
  time for clock to arrive at flip-flop is
  comparable to delays through logic (and will soon
  become greater than logic delay)
• Effect of skew on cascaded flip-flops

100
In Q0 Q1 CLK0 CLK1
CLK1 is a delayed version of CLK0
original state IN 0, Q0 1, Q1 1 due to
skew, next state becomes Q0 0, Q1 0, and not
Q0 0, Q1 1
7
Summary of Latches and Flip-Flops

• Development of D-FF
• Level-sensitive used in custom integrated
  circuits
• can be made with 4 switches
• Edge-triggered used in programmable logic devices
• Good choice for data storage register
• Historically J-K FF was popular but now never
  used
• Similar to R-S but with 1-1 being used to toggle
  output (complement state)
• Good in days of TTL/SSI (more complex input
  function D JQ' K'Q
• Not a good choice for PLAs as it requires two
  inputs
• Can always be implemented using D-FF
• Preset and clear inputs are highly desirable on
  flip-flops
• Used at start-up or to reset system to a known
  state

8
Flip-Flop Features

• Reset (set state to 0) R
• Synchronous Dnew R' Dold (when next clock
  edge arrives)
• Asynchronous doesn't wait for clock, quick but
  dangerous
• Preset or set (set state to 10 S (or sometimes
  P)
• Synchronous Dnew Dold S (when next clock
  edge arrives)
• Asynchronous doesn't wait for clock, quick but
  dangerous
• Both reset and preset
• Dnew R' Dold S (set-dominant)
• Dnew R' Dold R'S (reset-dominant)
• Selective input capability (input enable/load)
  LD or EN
• Multiplexer at input Dnew LD' Q LD Dold
• Load may/may not override reset/set (usually R/S
  have priority)
• Complementary outputs Q and Q'

9
Registers

• Collections of flip-flops with similar controls
  and logic
• Stored values somehow related (e.g., form binary
  value)
• Share clock, reset, and set lines
• Similar logic at each stage
• Examples
• Shift registers
• Counters

10
Shift Register

• Holds samples of input
• Store last 4 input values in sequence
• 4-bit shift register

11
Shift Register Verilog
module shift_reg (out4, out3, out2, out1, in,
clk) output out4, out3, out2, out1 input
in, clk reg out4, out3, out2, out1 always
_at_(posedge clk) begin out4 lt out3 out3
lt out2 out2 lt out1 out1 lt in
end endmodule
12
Shift Register Verilog
module shift_reg (out, in, clk) output 41
out input in, clk reg 41
out always _at_(posedge clk) begin out lt
out31, in end endmodule
13
Universal Shift Register

• Holds 4 values
• Serial or parallel inputs
• Serial or parallel outputs
• Permits shift left or right
• Shift in new values from left or right

clear sets the register contentsand output to
0s1 and s0 determine the shift function
s0 s1 function 0 0 hold state 0 1 shift
right 1 0 shift left 1 1 load new input
14
Design of Universal Shift Register

• Consider one of the four flip-flops
• New value at next clock cycle

Nth cell
to N-1th cell
to N1th cell
Q
D
CLK
CLEAR
clear s0 s1 new value 1 0 0 0 0 output 0 0
1 output value of FF to left (shift
right) 0 1 0 output value of FF to right (shift
left) 0 1 1 input
s0 and s1control mux
QN-1(left)
QN1(right)
InputN
15
Universal Shift Register Verilog
module univ_shift (out, lo, ro, in, li, ri, s,
clr, clk) output 30 out output lo, ro
input 30 in input 10 s input li,
ri, clr, clk reg 30 out assign lo
out3 assign ro out0 always _at_(posedge clk
or clr) begin if (clr) out lt 0 else
case (s) 3 out lt in 2 out lt
out20, ri 1 out lt li, out31
0 out lt out endcase end endmodule
16
Shift Register Application

• Parallel-to-serial conversion for serial
  transmission

parallel outputs
parallel inputs
serial transmission
17
Pattern Recognizer

• Combinational function of input samples
• In this case, recognizing the pattern 1001 on the
  single input signal

18
Counters

• Sequences through a fixed set of patterns
• In this case, 1000, 0100, 0010, 0001
• If one of the patterns is its initial state (by
  loading or set/reset)
• Mobius (or Johnson) counter
• In this case, 1000, 1100, 1110, 1111, 0111, 0011,
  0001, 0000

19
Binary Counter

• Logic between registers (not just multiplexer)
• XOR decides when bit should be toggled
• Always for low-order bit, only when first bit is
  true for second bit, and so on

20
Binary Counter Verilog
module shift_reg (out4, out3, out2, out1, clk)
output out4, out3, out2, out1 input in, clk
reg out4, out3, out2, out1 always _at_(posedge
clk) begin out4 lt (out1 out2 out3)
out4 out3 lt (out1 out2) out3 out2
lt out1 out2 out1 lt out1 1b1
end endmodule
21
Binary Counter Verilog
module shift_reg (out4, out3, out2, out1, clk)
output 41 out input in, clk reg
41 out always _at_(posedge clk) out lt out
1 endmodule
22
Four-bit Binary Synchronous Up-Counter

• Standard component with many applications
• Positive edge-triggered FFs w/ sync load and
  clear inputs
• Parallel load data from D, C, B, A
• Enable inputs must be asserted to enable
  counting
• RCO ripple-carry out used for cascading counters
• high when counter is in its highest state 1111
• implemented using an AND gate

(2) RCO goes high
(3) High order 4-bits are incremented
(1) Low order 4-bits 1111
23
Offset Counters

• Starting offset counters use of synchronous
  load
• e.g., 0110, 0111, 1000, 1001, 1010, 1011, 1100,
  1101, 1111, 0110, . . .
• Ending offset counter comparator for ending
  value
• e.g., 0000, 0001, 0010, ..., 1100, 1101, 0000
• Combinations of the above (start and stop value)

24
Sequential Logic Summary

• Fundamental building block of circuits with state
• Latch and flip-flop
• R-S latch, R-S master/slave, D master/slave,
  edge-triggered D FF
• Timing methodologies
• Use of clocks
• Cascaded FFs work because prop delays exceed hold
  times
• Beware of clock skew
• Basic registers
• Shift registers
• Pattern detectors
• Counters

25
Sequential Logic Implementation

• Models for representing sequential circuits
• Finite-state machines (Moore and Mealy)
• Representation of memory (states)
• Changes in state (transitions)
• Design procedure
• State diagrams
• State transition table
• Next state functions

26
Abstraction of State Elements

• Divide circuit into combinational logic and state
• Localize feedback loops and make it easy to break
  cycles
• Implementation of storage elements leads to
  various forms of sequential logic

27
Forms of Sequential Logic

• Asynchronous sequential logic state changes
  occur whenever state inputs change (elements may
  be simple wires or delay elements)
• Synchronous sequential logic state changes
  occur in lock step across all storage elements
  (using a periodic waveform - the clock)

28
Finite State Machine Representations

• States determined by possible values in
  sequential storage elements
• Transitions change of state
• Clock controls when state can change by
  controlling storage elements
• Sequential Logic
• Sequences through a series of states
• Based on sequence of values on input signals
• Clock period defines elements of sequence

29
Example Finite State Machine Diagram

• Combination lock

30
Can Any Sequential System be Represented with a
State Diagram?

• Shift Register
• Input value shownon transition arcs
• Output values shownwithin state node

31
Counters are Simple Finite State Machines

• Counters
• Proceed thru well-defined state sequence in
  response to enable
• Many types of counters binary, BCD, Gray-code
• 3-bit up-counter 000, 001, 010, 011, 100, 101,
  110, 111, 000, ...
• 3-bit down-counter 111, 110, 101, 100, 011,
  010, 001, 000, 111, ...

32
Verilog Upcounter
module binary_cntr (q, clk) inputs clk
outputs 20 q reg 20 q reg
20 p always _at_(q)
//Calculate next state case (q) 3b000
p 3b001 3b001 p 3b010
3b111 p 3b000 endcase always
_at_(posedge clk) //next becomes current state
q lt p endmodule
33
How Do We Turn a State Diagram into Logic?

• Counter
• Three flip-flops to hold state
• Logic to compute next state
• Clock signal controls when flip-flop memory can
  change
• Wait long enough for combinational logic to
  compute new value
• Don't wait too long as that is low performance

34
FSM Design Procedure

• Start with counters
• Simple because output is just state
• Simple because no choice of next state based on
  input
• State diagram to state transition table
• Tabular form of state diagram
• Like a truth-table
• State encoding
• Decide on representation of states
• For counters it is simple just its value
• Implementation
• Flip-flop for each state bit
• Combinational logic based on encoding

35
FSM Design Procedure State Diagram to Encoded
State Transition Table

• Tabular form of state diagram
• Like a truth-table (specify output for all input
  combinations)
• Encoding of states easy for counters just use
  value

36
Implementation

• D flip-flop for each state bit
• Combinational logic based on encoding

notation to show function represent input to D-FF
N1 C1' N2 C1C2' C1'C2 C1 xor C2 N3
C1C2C3' C1'C3 C2'C3 C1C2C3' (C1'
C2')C3 (C1C2) xor C3
37
Implementation (cont'd)

• Programmable Logic Building Block for Sequential
  Logic
• Macro-cell FF logic
• D-FF
• Two-level logic capability like PAL (e.g., 8
  product terms)

38
Another Example

• Shift Register
• Input determines next state

N1 In N2 C1 N3 C2
39
More Complex Counter Example

• Complex Counter
• Repeats five states in sequence
• Not a binary number representation
• Step 1 Derive the state transition diagram
• Count sequence 000, 010, 011, 101, 110
• Step 2 Derive the state transition table from
  the state transition diagram

note the don't care conditions that arise from
the unused state codes
40
More Complex Counter Example (contd)

• Step 3 K-maps for Next State Functions

C A B B' A'C' A BC'
41
Self-Starting Counters (contd)

• Re-deriving state transition table from don't
  care assignment

42
Self-Starting Counters

• Start-up States
• At power-up, counter may be in an unused or
  invalid state
• Designer must guarantee it (eventually) enters a
  valid state
• Self-starting Solution
• Design counter so that invalid states eventually
  transition to a valid state
• May limit exploitation of don't cares
• Reset line
• Input which ALWAYS puts counter in a known state

43
State Machine Model

• Values stored in registers represent the state of
  the circuit
• Combinational logic computes
• Next state
• Function of current state and inputs
• Outputs
• Function of current state and inputs (Mealy
  machine)
• Function of current state only (Moore machine)

44
State Machine Model (contd)

• States S1, S2, ..., Sk
• Inputs I1, I2, ..., Im
• Outputs O1, O2, ..., On
• Transition function Fs(Si, Ij)
• Output function Fo(Si) or Fo(Si, Ij)

45
Example Ant Brain (Ward, MIT)

• Sensors L and R antennae, 1 if in touching
  wall
• Actuators F - forward step, TL/TR - turn
  left/right slightly
• Goal find way out of maze
• Strategy keep the wall on the right

46
Ant Brain
47
Ant Behavior
A Following wall, touching Go forward,
turning left slightly. If R and not L, go to
A If R and L , go to E else go to B
B Following wall, not touching Go forward,
turning right slightly if R, go to A if not
R, go to C
C Break in wall Go forward, turning right
slightly if R, go to A if not R, stay in C
E Wall in front or on left Turn left
If L or R, stay in E Otherwise, go to B
LOST Forward until we touch something
48
Designing an Ant Brain

• State Diagram

49
Synthesizing the Ant Brain Circuit

• Encode States Using a Set of State Variables
• Arbitrary choice - may affect cost, speed
• Use Transition Truth Table
• Define next state function for each state
  variable
• Define output function for each output
• Implement next state and output functions using
  combinational logic
• 2-level logic (ROM/PLA/PAL)
• Multi-level logic
• Next state and output functions can be optimized
  together

50
Transition Truth Table

• Using symbolic statesand outputs

51
Synthesis

• 5 states at least 3 state variables required
  (X, Y, Z)
• State assignment (in this case, arbitrarily
  chosen)

LOST - 000 E - 001 A - 010 B - 011 C - 100
state L R next state outputs X,Y,Z X', Y',
Z' F TR TL 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0
1 1 0 0 ... ... ... ... ... 0 1 0 0 0 0 1
1 1 0 1 0 1 0 0 1 0 1 0 1 0 1 0 1 0 1 0 0 0
1 1 0 1 0 1 0 1 1 0 0 1 1 0 1 0 1 1 0 0 1 0
0 1 1 0 0 1 1 0 1 0 1 0 1 1 0 ... ... ... ... ...
it now remainsto synthesizethese 6 functions
52
Synthesis of Next State and Output Functions
state inputs next state outputs X,Y,Z L
R X,Y,Z F TR TL 0 0 0 0 0 0 0 0 1 0 0 0 0
0 - 1 0 0 1 1 0 0 0 0 0 1 - 0 0 1 1 0 0 0 0
1 0 0 0 1 1 0 0 1 0 0 1 - 1 0 1 0 0 0 1 0 0
1 1 - 0 1 0 0 0 1 0 1 0 0 0 0 1 1 1 0 1 0 1
0 0 1 0 1 0 1 0 1 0 1 0 1 - 0 0 1 1 0 1 0 1
1 - 0 1 0 0 1 1 0 0 1 1 - 1 0 1 0 1 1 0 1 0
0 - 0 1 0 0 1 1 0 1 0 0 - 1 0 1 0 1 1 0

• e.g.
• TR X Y Z
• X X R Y Z R R TR

53
Circuit Implementation

• Outputs are a function of the current state only
  - Moore machine

54
Verilog Sketch
module ant_brain (F, TR, TL, L, R) inputs
L, R outputs F, TR, TL reg X, Y,
Z assign F function(X, Y, Z, L, R)
assign TR function(X, Y, Z, L, R) assign TL
function(X, Y, Z, L, R) always _at_(posedge
clk) begin X lt function (X, Y, Z, L,
R) Y lt function (X, Y, Z, L, R) Z
lt function (X, Y, Z, L, R) end endmodule
55
Dont Cares in FSM Synthesis

• What happens to the "unused" states (101, 110,
  111)?
• Exploited as don't cares to minimize the logic
• If states can't happen, then don't care what the
  functions do
• if states do happen, we may be in trouble

Ant is in deep trouble if it gets in this state
56
State Minimization

• Fewer states may mean fewer state variables
• High-level synthesis may generate many redundant
  states
• Two state are equivalent if they are impossible
  to distinguish from the outputs of the FSM, i.
  e., for any input sequence the outputs are the
  same
• Two conditions for two states to be equivalent
• 1) Output must be the same in both states
• 2) Must transition to equivalent states for all
  input combinations

57
Ant Brain Revisited

• Any equivalent states?

58
Ant Brain Revisited
Inequivalent since actions differ
Potentially Equivalent (actions equivalent)
59
Equivalence Proof
Equivalent Behavior under R
L R
L R
LOST (F)
E(TL)
A (TL, F)
L
L R
R
L R
L R
R
L R
B (TR, F)
C(TR, F)
R
R
Equivalent Behavior under R
60
New Improved Brain

• Merge equivalent B and C states
• Behavior is exactly the same as the 5-state brain
• We now need only 2 state variables rather than 3

61
New Brain Implementation
62
Sequential Logic Implementation Summary

• Models for representing sequential circuits
• Abstraction of sequential elements
• Finite state machines and their state diagrams
• Inputs/outputs
• Mealy, Moore, and synchronous Mealy machines
• Finite state machine design procedure
• Deriving state diagram
• Deriving state transition table
• Determining next state and output functions
• Implementing combinational logic
