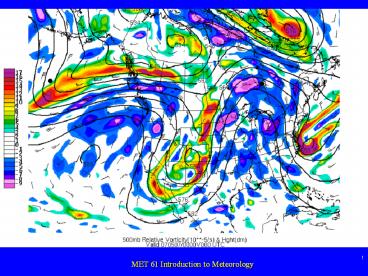

Met 61

1

2
MET 61 Introduction to Meteorology - Lecture 11

• Global Circulation
• Dr. Eugene Cordero
• Reading WH Pg. 297-298
• Ahrens Chapter 11 Wind Global Systems
• Class Outline
• Circulation models
• Jet stream
• El Nino

3
Review

• Answer the following question based on material
  covered in Chapter 11 of Ahrens.
• Explain how and why the average surface pressure
  features shift from summer to winter
• Why it is impossible on the earth for the Hadley
  cell to extend from the pole to the equator?
• Why is the jet stream stronger in winter than in
  summer?
• Explain physically what an El Nino event is.
• Explain how the southern oscillation is related
  to El Nino.
• Explain why the trade winds are NE and SE in the
  northern and southern hemispheres respectively.

4
Atmospheric Scales of Motion

• Scale Time Scale Distance Scale Examples
• Macroscale
• -Planetary Weeks to years 1000-40,000km Westerli
  es, trade winds
• -Synoptic Days to weeks 100-5000km Cyclones,
  anticyclones and hurricanes
• Mesoscale Minutes to days 1-100km Land-sea
  breeze,
• thunderstorms and tornadoes
• Microscale Seconds to minutes lt1km Turbulence,
  dust devils and gusts

5
General Circulation of the Atmosphere

• Large scale flow of the atmosphere
• Focus on both upper level and lower level winds
• Definitions
• Westerly winds comes from the west
• Southwest winds, comes from the south west

6
General Circulation of the Atmosphere

• Large scale flow of the atmosphere
• Focus on both upper level and lower level winds
• Definitions
• Zonal winds (East-West)
• Meridional winds (North-South).
• Westerly winds comes from the west
• Southwest winds, comes from the south west

7
(No Transcript)
8
View of the atmosphere in motion

• http//www.atmos.washington.edu/gfd_exp/exp_e/doc/
  bc/images/bc01.gif

9
Single Cell Model

• Early description of general circulation
• George Hadley (1685-1768) developed this model
• Assumptions
• Earth is primarily heated in the tropics
• Surface heat imbalance produces air movement to
  balance.

10
Single Cell Model

• Early description of general circulation
• George Hadley (1685-1768) developed this model
• Assumptions
• Earth is primarily heated in the tropics
• Thermally direct circulation results from heating
  differences
• Surface heat imbalance produces air movement to
  balance.

11
(No Transcript)
12
Three Cell Model

• Proposed to explain how the Earths heat balance
  is maintained
• Good simple model of global circulation
• Terms
• Hadley Cell The tropical circulation
• Horse Latitudes

13
Three Cell Model

• Proposed to explain how the Earths heat balance
  is maintained
• Good simple model of global circulation
• Terms
• Hadley Cell The tropical circulation
• ITCZ - intertropical convergence zone
• Horse Latitudes
• Trade Winds

14
(No Transcript)
15
(No Transcript)
16
Three Cell Model (2)

• Explains much of the observed surface pressure
  distributions

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
Monsoon circulation

• The monsoon circulation involves a seasonal
  change in the wind direction.
• Monsoon circulations have a distinct wet and dry
  season.
• Monsoon circulations in various places around the
  globe.
• Southern Asia
• Northern Australia
• Southwest USA

25
(No Transcript)
26
Cold and clear skies
27
Warm and cloudy
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
What is El Niño?

• El Niño is
• El Niño occurs
• The name, El Niño (means boy child in
  Spanish) as it often occurs around Christmas time.

37
What is El Niño?

• El Niño is
• El Niño occurs
• The name, El Niño (means boy child in
  Spanish) as it often occurs around Christmas time.

• a warming of the equatorial eastern Pacific Ocean


• about about once every 2 to 7 years

38
Normal conditions (sea surface temps)
39
El Niño (sea surface temps)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
ENSO (El Niño-Southern Oscillation)

• The Southern Oscillation
• is the atmospheric part of El Niño
• The Southern Oscillation Index is the pressure
  difference between Tahiti and Darwin,
  Pressure(Tahiti) Pressure(Darwin)
• During El Niño, the pressure is _______ in the
  west and _______ in the east
• During El Nino, the Southern Oscillation Index is
  (positive/negative).

44
ENSO (El Niño-Southern Oscillation)

• The Southern Oscillation
• is the atmospheric part of El Niño
• The Southern Oscillation Index is the pressure
  difference between Tahiti and Darwin,
  Pressure(Tahiti) Pressure(Darwin)
• During El Niño, the pressure is _______ in the
  west and _______ in the east
• During El Nino, the Southern Oscillation Index is
  (positive/negative).

higher
lower
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
NAO Index is difference between the polar low and
the subtropical high during the winter season
(December through March)
50
(No Transcript)
51
What is the NAO?

• The North Atlantic Oscillation (NAO) represents
• winter climate variability in the North Atlantic
  region
• ranging from central North America to Europe and
  much into Northern Asia
• The NAO is a large scale seesaw in atmospheric
  mass

52
Phases of the NAO

• A positive index
• stronger than usual subtropical high pressure
• deeper than normal Icelandic low.
• The increased pressure gradients produces
• stronger winter storms crossing the Atlantic
  Ocean
• warm and wet winters in Europe
• cold and dry winters in northern Canada and
  Greenland
• mild and wet winter conditions in Eastern US

53
Phases of the NAO

• A negative index
• weaker than usual subtropical high pressure
• weaker than normal Icelandic low.
• The increased pressure gradients produces
• fewer winter storms crossing the Atlantic Ocean
• Cold air to northern Europe
• Milder winters in Greenland
• More cold outbreaks and snowy conditions to the
  Eastern US

54
(No Transcript)
55
(No Transcript)
56
Activity 12 (Due May 9th)

• Derive each component (horizontal and vertical)
  of the vorticity.
• For incompressible flow, show how the meridional
  winds would change if there exists a positive
  zonal wind gradient and no vertical wind shear.
• Chapter 11 (Ahrens Meteorology Today)
  Questions for Review 5,7,15,
• Questions for thought 2,6
