1

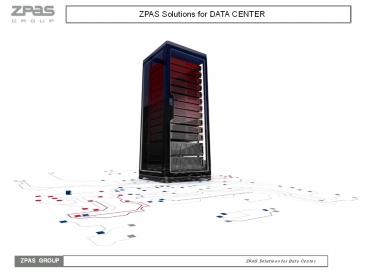

ZPAS Solutions for DATA CENTER
2
ZPAS Solutions for DATA CENTER
  • Infrastructure of Data Center
  • - server cabinets
  • precise air-conditioning
  • guaranteed power supply systems
  • fire extinguishing systems
  • electronic security systems,
  • - enviromental condition monitoring systems
  • ZPAS Control Oversee,

3
Server cabinet 19
  • Server cabinet DC 19
  • - cabinet meets the requirement of EIA-310D,
  • intended for use in Data Box and row system
    with side and row heat exchangers,
  • possibility to join cabinets in row,
  • static capacity 1360 kg, possibility of
    increasing to 1500kg
  • possibility of applying electronic access
    control system.

clearance 80
clearance 69
4
Server cabinet DC 19
  • Fixing of cabinet row with special joints allows
    to
  • rigid and stable construction- possibility of
    joining cabinets with side panels

Cabinet frame features openings for arranging the
cabinets in rows with special joints.
Special joint
5
Air flow management in server cabinets

1)
2)
3)
Vertical hot air duct
Air flow guide vane
Cold air deflector
6
ZPAS Data Box modular solution based on
cabinets 19 DC
Cold Aisle
ZPAS Data Box
Hot Aisle
Designing based on standard  system
components. We create solutions easy for
modification, extension and reconfiguration.
7
ZPAS Data Box cable management systems
  • Cable distribution on the top plate of server
    cabinets
  • single cable trace
  • duplex cable trace
  • - transition between rows of cabinets

Baks, Cablofil
8
ZPAS Data Box Interesting projects
Interesting projects
9
ZPAS Data Box Interesting projects
10
ZPAS Data Box Interesting projects
11
ZPAS Data Box Interesting projects
12
Server cabinet with increased IP Protection Degree
Server cabinet with IP54
  • with sideway heat exchangers
  • with heat exchanger compartment in server
    cabinet

Benefits
  • - steady flow of cold air over the entire height
    of
  • the cabinet,
  • fire extinguishing in a single cabinet
  • - automatically opening of the door in case of
  • emergency air conditioner / temperature rise
  • the ability to easily move the cabinet with all
  • systems

Server cabinet 800x1000 300x1000 with sideway
heat exchanger
Server cabinet 900x1000 with interior heat
exchanger compartment
13
Cable management systems
Cable management components vertical and
horizontal in server cabinet
Cable management components outside cabinets
14
Air flow management components



1)
2)
  • Management of air flow - rules to be observed
  • proper location of air conditioners, designing
    of cabinet
  • rows with hot or cold aisles, - using of
    blanking plates 19 "
  • sealing of cabinets around usage space
  • all cable entries to be sealed
  • - ensure adequate air flow to used equipment
  • - monitors, servers, of tower-type not to be
    put on shelfs

c)
3)
4)
15
Special cabinets
Directing the flow of cooling air through the air
guides
Server cabinets 1000 x 1200mm intended for use in
equipments with sideways air flow
Nexus
16
ZPAS Air-conditioning systems
Air-conditioning systems
Heat exchangers ZPAS
Air-conditioning systems
Medium Water chiller unit Cooling 10
30kW Equipment Carel
c
Sideway heat exchanger
Row heat exchanger
17
ZPAS Air-conditioning systems
Air-conditioning systems
Heat exchangers ZPAS
Medium water chiller unit Cooling 10
30kW Equipment Carel
c
Sideway heat exchanger
Row heat exchanger
18
ZPAS Air-conditioning systems
Air-conditioning systems
EC
Heat exchangers ZPAS
Medium water chiller, DX (R410A) Cooling
efficiency - Water chiller 12,3 37,7kW - DX
4,5 22,5kW Equipment STULZ
c
Sideway heat exchanger
Row heat exchanger
19
ZPAS Air-conditioning systems
  • ZPAS Air-conditioning
  • - even distribution of cold air at the whole
    height of the air -conditioner
  • - controller with keyboard and display
    (adjustment of air-conditioning parameters)
  • monitoring of the air -conditioning via
    Ethernet
  • - heat capacity control by controlling the flow
    of refrigerant or with variable speed of
  • fans,
  • temperature and humidity measurements
  • Benefits
  • air-conditioners are in rows and not on the
    perimeter of the room, shortening air flow path
    causes a reduction of mixing of hot and cold
    streams and lower power consumption
  • - hot air is captured directly from the IT
    equipment before mixing with colder ambient air
    giving
  • higher air conditioner efficiency- modular
    design - easy to create a redundant N 1,
  • - this solution does not require raised floor
    for distributing of cold air

20
ZPAS Air-conditioning systems
Air-conditioning systems
Heat exchangers ZPAS
Precison air-conditioning cabinets
Medium water chiller, DX (R410A)
21
ZPAS Air-conditioning systems
Air-conditioning systems
Heat exchangers ZPAS
Precision air-conditioning cabinets
Water chiller units and condensers
Hydraulic distributor
Medium water chiller, DX (R410A)
22
ZPAS single cabinet air-conditioning systems
SLIM Air-conditioners mounted on doors and sides.
Coolling capacity 1050 8000W
TOP Roof mounted air-conditioner, Cooling
capacity 330 5200W
  • Recommended cabinet configuration
  • recommended IP 54
  • front and rear door without perforation
  • side panels
  • sealed all cable entries

EXW RACK Air-conditioner mounted in rack space
19, cooling capacity up to 2500W
23
ZPAS server cabinet ventilation systems
  • PWS roof fan
  • Controlled by
  • microprocesor panelu for fan control MPSM-S1,
    MPSK G0, G1
  • speed controller ARW
  • thermostat KTS

MPSM-S1
MPSK G1
MPSK G0
ARW 1,5/1
Thermostat KTS
24
ZPAS server cabinet ventilation systems
MPSM-S1
  • Ventilated door
  • Controlled by
  • - microprocessor control panel MPSM-S1, MPSK G0,
    G1
  • rotation controller ARW
  • - thermostat KTS

MPSK G1
MPSK G0
ARW 1,5/1
Thermostat KTS
25
ZPAS Power supply systems
  • Power supply system components
  • UPS power supply
  • PDU
  • cabling
  • generator
  • other electrical systems
  • - cooling and ventilation power supply systems
  • - all other systems (lighting, fire
    extinguisher, safety, etc.)

Power supply systems
26
ZPAS power supply systems
  • Power supply system components
  • UPS power supply
  • PDU
  • cabling
  • generator
  • other electrical systems
  • - cooling and ventilation power supply systems
  • - all other systems (lighting, fire
    extinguisher, safety, etc.)

27
ZPAS PDU power strips
Examples of power strips
LZ-332
LZ-532
LZ-326
LZ-3321
LZ-3164
Types of power plugs
Types of outlets
28
ZPAS monitoring power strips
Types of power strips
Types of outlets
29
Microprocessor power control panel
SOFT-START automatic soft-starting of devices
according to time delay scenario after power
supply recovery MASTER-SLAVE automatic shut
down of unnecessary devices saving
power PDU-THERMOSTAT - mulitstage cooling
control - multi-heating control - ability to
work a combined heating/cooling Monitoring
on-line - current and power in the oultlets -
current power supply - temperature
30
SWIDI Supervisor System
System with a single HUB
HUB system
TCP/IP
System administrator terminal
31
FK-RACK fire extinguisher system
FK-RACK Master
FK-RACK Slave
Unsplit automatic fire panel FK-Rack is designed
for fire detection and extinguishing control
process using gas FE-36. The panel is designed
for use in server racks holding not more than 3
m3. It does not cause damage to the data stored
on the storage media.
Fire extinguisher system
  • Panel FK-RACK 19
  • 2 kg of gas extinguishing
  •   redundant power supply
  •   two optical smoke detector,
  •   sounder,
  •   interface for communication via Ethernet
  • 4 FK-RACK Slaves (RS 485) can be connected to
    FK-Rack Master

32
FK-RACK fire extinguisher system
FK-RACK Master
FK-RACK Slave
Unsplit automatic fire panel FK-Rack is designed
for fire detection and extinguishing control
process using gas FE-36. The panel is designed
for use in server racks holding not more than 3
m3. It does not cause damage to the data stored
on the storage media.
  • Panel FK-RACK 19
  • 2 kg of gas extinguishing
  •   redundant power supply
  •   two optical smoke detector,
  •   sounder,
  •   interface for communication via Ethernet
  • 4 FK-RACK Slaves (RS 485) can be connected to
    FK-Rack Master

33
Fire extinguishing installation using gas FM-200,
NOVEC1230
1. fire central unit 2. gas cylinders 3.
discharge nozzle 4 smoke detectors 5 smoke
damper 6 start and stop buttons 7 opto-acoustic
signal unit
1
5
7
3
2
6
4
34
Access control systems
Access control systems and monitoring
  • - monitoring of access control system
  • - archiving of all events by remote configuration
    of terminals,
  • - add and manage of users
  • - receiving alerts and visualization of the
    current state
  • the ability to remotely opening the cabinet, in
    the absence of an
  • authorization user
  •   - map editor, which graphically shows the
    terminal layout

35
Access control systems
  • - monitoring of access control system
  • - archiving of all events by remote configuration
    of terminals,
  • - add and manage of users
  • - receiving alerts and visualization of the
    current state
  • the ability to remotely opening the cabinet, in
    the absence of an
  • authorization user
  •   - map editor, which graphically shows the
    terminal layout

36
Climate control monitoring
Contactron or microswitch
Ethernet RJ45 Connection to controlling center
Motion detector
Smoke detector 3
Probe
37
Climate control monitoring ZPAS Control Oversee
38
Climate control monitoring ZPAS Control Oversee
39
ZPAS interesting projects
Interesting projects
Server room in ZPAS
40
ZPAS interesting projects
Server room in ZPAS
41
ZPAS interesting projects
42
Kontakt
Zaklad Produkcji Automatyki Sieciowej
S.A. Przygórze 209 57-431 Wolibórz Krystian
Guzara Tel. 48 748 720 153 GSM 48 605
434 386 Fax 48 748 724 074E-mail
krystian.guzara_at_zpas.pl www.zpasgroup.eu
