Forside

1
Forside

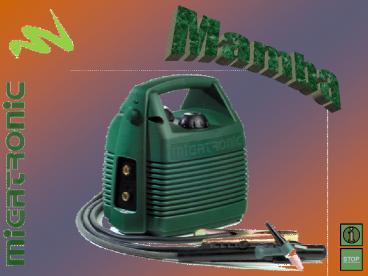

Mamba
STOP
2
Mamba
3
MMA or TIG with LIFTIG?
MMA welding Welding with coated electrodes is
carried out with basic or rutile types up to 3.2
mm in diameter. Several standard functions, such
as hotstart, arc control and antifreeze. TIG
welding Mamba is fitted with Migatronics
original LIFTIG? ignition. In addition it can be
used as an excellent TIG welding machine if
fitted with gas valve in the torch handle.
4
Adjustment of welding current
Adjustment of current Welding current can be
adjusted infinitely variably in MMA and TIG modes
in accordance with requirement and type of
electrode by means of the dial on the right side
of the welding machine. The current can be set
during welding and read clearly through the dial
from a green LED. In case of mains voltage error
or overheating the green LED will switch to
yellow.
5
ContentsBrief and to the point

• Applications
• Configurations
• Marketing material
• Technical data
• Arguments - USP
• Why choose Migatronic?
• Service and maintenance

6
Applications Lightweight and portable

• Special construction for small welding jobs
• that require immediate action
• For welding jobs of the same quality as required
  for welding jobs carried out with large welding
  machines.
• Welds in all materials except light alloy
  metals. Mamba masters MMA and TIG welding with
  LIFTIG? (use of torch with gas valve).
• Excellent in installation jobs or wherever a
  small and handy welding machine is required.
• Does not take up much room in a service vehicle
  or under the work bench.

7
ConfigurationsCoherent features

• It is as simple as that
• Machine and remote control forming a whole
• The Mamba is its own remote control
• Electrode cables in several lengths (standard 3
  metres)
• TIG torch with gas valve in 4 m length
• Soft shoulder strap
• Cable holder

8
Marketing materialWell-known and popular

• Migatronic offers a variety of marketing material
• CD-ROM and disc information
• Homepage via WWW.Migatronic.DK
• Complete machine catalogue with full range of
  products
• Brochures and welding bible in several
  languages
• Standard configurations or choice via
  configurator
• Training compendiums in several languages
• Support via Migatronic customer centre
• Manpower support for special events
• Sales training
• Posters

9
Technical dataSmall and ready for action

• MAMBA Pilot 151 E
• Current range 7 - 150 A
• Mains voltage 1 x 230 V
• Duty cycle 30 150 A
• Duty cycle 60 120 A
• Cuty cycle 100 100 A
• Open circuit voltage Uo 85-90 V
• IP class IP 23
• Weight kg 4.6 kilograms

10
Arguments - USPSimple and convincing arguments

• Portable quality for MMA and TIG
• Unique design in double insulated, knockproof
  composit material
• Low weight (only 4.6 kilograms) along with low
  centre of gravity prevents the machine from
  tipping over
• Inverter technology with SMD technique gives
  large effect in the arc and protects against
  operational stops
• Built-in auxiliary functions, such as hotstart,
  arc control and antifreeze, contribute to
  unproblematic welding
• MMA and TIG welding with original LIFTIG?
  ignition
• Ideal when used with asyncronius engine generator

11
Why choose Migatronic?Welding is our speciality

• One of Europes leading manufacturers within the
  inverter technology
• Subsidiaries and importers throughout Europe
• ISO 9001 certified with more than 450 employees
  in Europe
• Original sales and service network with support
  throughout Europe
• More than 30 years experience of manufacturing
  welding machines
• Knowledge of arc welding processes
• Sales training of dealers and large end users
• Robust and reliable welding machines for
  industrial use
• Large machine flexibility and high resale value
  of used equipment
• Customers including watchmakers, automobile
  sector, heavy offshore and shipbuilding industry
  are included in our reference list

12
Service and maintenanceGet vaccinated with
Migatronic ...

• Different levels of service subscription and
  service agreements
• Full service guarantee on the welding machine
  after repair
• Systematic maintenance at fixed intervals
• Application training for customers and dealers
• Own service school with training in specific
  machines
• 95 on site repair by our service vehicles
• Specialized application solutions adapted to
  environment and customers
• Always original spares and a large range of
  exchange products
• Repair of hoses and cables as per agreement
