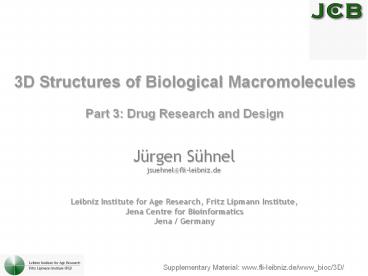

3D Structures of Biological Macromolecules Part
3 Drug Research and Design
Jürgen Sühnel jsuehnel_at_fli-leibniz.de
Leibniz Institute for Age Research, Fritz Lipmann
Institute, Jena Centre for Bioinformatics Jena /
Germany
Supplementary Material www.fli-leibniz.de/www_bio
c/3D/
2
Example of Drug Discovery
3
Example of Drug Discovery
4
Example of Drug Discovery
Pacific yew tree (Eibe)
5
Drug Research is
the Search for a Needle in a Haystack.
www.kubinyi.de
6
Development of Drug Research
www.kubinyi.de
7
Drug Timeline
www.kubinyi.de
8
Drug Timeline
www.kubinyi.de
9
Costs in Drug Research


• Cost for discovering and developing a new
  drug several 100 million up to 1000
  million (average 802 M)
• Time to market
• 10 15 years

10
Global Company Sales 2006
11
Top Ethical Drugs by Sales in 2006
http//www.p-d-r.com/ranking/Top_100_Ethical_Drugs
_by_Sales.pdf
12
New Products Marketed for the First Time
http//www.p-d-r.com/ranking/Prous_TYND_2005.pdf
13
Disciplines Involved in Drug Development

Molecular Conceptor
14
The Role of Molecular Structure
Molecular Conceptor
15
The Pharmacophore Concept
Molecular Conceptor
16
Mechanisms of Drug Action Definitions I
www.kubinyi.de
17
Mechanisms of Drug Action Definitions II
www.kubinyi.de
18
Serendipity - Penicillin

Molecular Conceptor
19
Serendipity - Penicillin

20
Serendipity - Aspirin

Serendipity - Aspirin
Molecular Conceptor
21
Strategies in Drug Design

www.kubinyi.de
22
Computational Approaches to Drug Research


• Target identification
• Lead discovery
• Lead optimization
• Ligand-based design
• Receptor-based design (Docking)
• Database screening (Virtual screening)
• Supporting combinatorial chemistry

23
3D Structures in Drug Design

www.kubinyi.de
24
Lead Structure Identification
www.kubinyi.de
25
Lead Structure Search Pipeline
www.kubinyi.de
26
Lead Structures Endogenous Neurotransmitters

www.kubinyi.de
27
Lead Structures Endogenous Neurotransmitters
Neurotransmitters are chemicals that are used to
relay, amplify and modulate electrical signals
between a neuron and another cell.

Acetylcholine voluntary movement of the muscles
Noradrenaline wakefulness or arousal
Dopamine voluntary movement and emotional
arousal Serotonin sleep and temperature
regulation GABA (gamma aminobutryic acid) -
motor behaviour
www.kubinyi.de
28
Lead Optimization
www.kubinyi.de
29
Ligand-based Design What is QSAR ?

30
Ligand-based Design Basic Requirements for QSAR
Studies

31
Ligand-based Design QSAR
Hansch analysis is the investigation of the
quantitative relationship between the biological
activity of a series of compounds and their
physicochemical substituent or global parameters
representing hydrophobic, electronic, steric and
other effects using multiple regression
correlation methodology.

www.kubinyi.de
32
Ligand-based Design QSAR Parameters

www.kubinyi.de
33
Ligand-based Design QSAR Parameters

34
Ligand-based Design QSAR Parameters -
Lipophilicity

35
Ligand-based Design QSAR Parameters

www.kubinyi.de
36
Ligand-based Design QSAR Parameters

www.kubinyi.de
37
Ligand-based Design QSAR Parameters

www.kubinyi.de
38
Ligand-based Design QSAR Parameters

www.kubinyi.de
39
Ligand-based Design QSAR Parameters

www.kubinyi.de
40
Ligand-based Design QSAR Parameters

www.kubinyi.de
41
Ligand-based Design A QSAR Success Story

www.kubinyi.de
42
Ligand-based Design A QSAR Success Story

pI50 concentration of test compound required to
reduce the protein content of cell by 50
www.kubinyi.de
43
Ligand-based Design 3D-QSAR CoMFA

www.kubinyi.de
44
Molecular Superposition of D Receptor Ligands

www.kubinyi.de
45
Ligand-based Design 3D-QSAR CoMFA

www.kubinyi.de
46
Ligand-based Design 3D-QSAR CoMFA

www.kubinyi.de
47
Electrostatic and Van-der-Waals Interactions

48
Ligand-based Design 3D-QSAR CoMFA
Comparative Molecular Field Analysis

49
Receptor-based Design (Structure-based Design)

Molecular Conceptor
50
Receptor-based Design (Structure-based Design)

Molecular Conceptor
51
Receptor-based Design Docking

Molecular Conceptor
52
Receptor-based Design Docking

Molecular Conceptor
53
Receptor-based Design Docking

Molecular Conceptor
54
Hydrophobic Amino Acids

Molecular Conceptor
55
Receptor-based Design Docking

Molecular Conceptor
56
H-Bond Properties of Amino Acids

Molecular Conceptor
57
Receptor-based Design H-bond Effect

IC50 - Drug concentration required for 50
inhibition of a biological effect
Molecular Conceptor
58
Receptor-based Design H-bond Effect

www.kubinyi.de
59
Charge Properties of Amino Acids

Molecular Conceptor
60
Receptor-based Design Salt Bridge
116.

Molecular Conceptor
61
Receptor-based Design Docking

Molecular Conceptor
62
Receptor-based Design SAR (Pharmacophore
Features)

Molecular Conceptor
63
Receptor-based Design DNA Receptor

Molecular Conceptor
64
Receptor-based Design DNA Intercalating Agents

Molecular Conceptor
65
Receptor-based Design DNA Intercalating Agents

Molecular Conceptor
66
Receptor-based Design AIDS Drugs

67
Receptor-based Design AIDS Drugs

68
Combinatorial Diversity in Nature

www.kubinyi.de
69
Classical vs. Combinatorial Chemistry
ww.kubinyi.de
70
Combinatorial Library
ww.kubinyi.de
71
Combinatorial Library
ww.kubinyi.de
72
Types and Features of Combinatorial Libraries
ww.kubinyi.de
73
Receptor-based Design Virtual Screening
Virtual Screening Select subsets of compounds
for assay that are more likely to contain
active hits than a sample chosen at random Time
Scales Docking of 1 compound 30 s (SGI
R10000 processor) Docking of the 1.1
million data set 6 days (64-processor SGI
ORIGIN)
ACD-SC Database from Molecular Design
Ltd. Agonists Known active compounds Docking of
ligands to the estrogen receptor (nuclear
hormone receptor)
74
Receptor-based Design Virtual Screening
75
Lipinskis Rule of Five

• Compounds are likely to have a good absorption
  and permeation
• in biological systems and are thus more likely
  to be successful drug candidates
• if they meet the following criteria
• 5 or fewer H-bond donors
• 10 or fewer H-bond acceptors
• Molecular weight less than or equal to 500
• Calculated log P less than or equal to 5
• Compound classes that are substrates for
  biological transporters are exceptions to the
  rule.

Druggable compounds
76
ADME
ADME

77
The Future Pharmacogenomics and Personalized
Medicine

www.kubinyi.de
78
Prediction Issues
