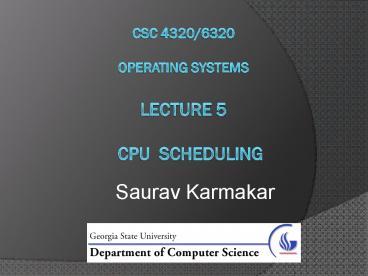

CSC 4320/6320Operating SystemsLecture 5
CPU Scheduling
  • Saurav Karmakar

2
Chapter 5 CPU Scheduling
  • Basic Concepts
  • Scheduling Criteria
  • Scheduling Algorithms
  • Thread Scheduling
  • Multiple-Processor Scheduling
  • Operating Systems Examples
  • Algorithm Evaluation

3
Objectives
  • To introduce CPU scheduling, which is the basis
    for multiprogrammed operating systems
  • To describe various CPU-scheduling algorithms
  • To discuss evaluation criteria for selecting a
    CPU-scheduling algorithm for a particular system

4
Basic Concepts
  • Uniprocessor system ?one process may run at a
    time
  • Objective of multiprogramming
  • ?some process running at all
    times
  • ? to maximize CPU
    utilization
  • When one process has to wait, the operating
    system takes the CPU away from that process and
    gives the CPU to another process
  • Almost all computer resources are scheduled
    before use

5
CPU-I/O Burst Cycle
  • Success of CPU scheduling follows
  • Process execution ? CPUI/O Burst Cycle
  • Consists of a cycle of CPU execution and I/O
    wait
  • Basically While a process waits for I/O, CPU sits
    idle if no multiprogramming
  • Instead the OS can give CPU to another process
  • CPU burst distribution
  • Distribution for frequency vs duration of CPU
    bursts.
  • Exponential or hyperexpoinential in nature

6
Alternating Sequence of CPU And I/O Bursts
7
Histogram of CPU-burst Times
8
CPU Scheduler
  • Selects from among the processes in memory that
    are ready to execute, and allocates the CPU to
    one of them Short-term Scheduler
  • The ready queue is not necessarily a FIFO queue
  • CPU scheduling decisions may take place when a
    process
  • 1. Switches from running to waiting state
  • 2. Switches from running to ready state
  • 3. Switches from waiting to ready
  • Terminates
  • Scheduling under 1 and 4 leaves us no choice
  • But option 2 and 3 does.

9
CPU Scheduler
  • Nonpreemptive once the CPU has been allocated
    to a process, the process keeps the CPU until it
    releases the CPU either
  • Scheduling under 1 and 4 is
    Nonpreemptive/Cooperative
  • All other scheduling is Preemptive
  • Preemptive Scheduling incurs some costs
  • Access to shared data
  • Effects on the design of operating system kernel
  • Effects of interrupts

10
(No Transcript)
11
Dispatcher
  • Dispatcher module gives control of the CPU to the
    process selected by the short-term scheduler
    this involves
  • Switching context
  • Switching to user mode
  • Jumping to the proper location in the user
    program to restart that program
  • Dispatch latency time it takes for the
    dispatcher to stop one process and start another
    running

12
(No Transcript)
13
(No Transcript)
14
First-Come, First-Served (FCFS) Scheduling
  • Process Burst Time
  • P1 24
  • P2 3
  • P3 3
  • Suppose that the processes arrive in the order
    P1 , P2 , P3 The Gantt Chart for the schedule
    is
  • Waiting time for P1 0 P2 24 P3 27
  • Average waiting time (0 24 27)/3 17

15
FCFS Scheduling (Cont)
  • Suppose that the processes arrive in the order
  • P2 , P3 , P1
  • The Gantt chart for the schedule is
  • Waiting time for P1 6 P2 0 P3 3
  • Average waiting time (6 0 3)/3 3
  • Much better than previous case
  • So Average waiting time vary substantially if the
    burst time for processes vary Generally quite
    long.
  • This is non-preemptive in nature ? troublesome
    for time sharing system

16
(No Transcript)
17
CPU SCHEDULING
FCFS Algorithm
Process Arrival
Service Time Time 1
0 8 2 1 4
3 2 9 4 3 5
FCFS
P1
P2
P3
P4
0
8
12
21
26
Average wait ( (8-0) (12-1) (21-2) (26-3)
)/4 61/4 15.25
Residence Time at the CPU
18
Shortest-Job-First (SJF) Scheduling
  • Associate with each process the length of its
    next CPU burst.
  • Using these lengths to schedule the process with
    the shortest time
  • If two processes have the same length next CPU
    burst, FCFS scheduling is used to break the tie.
  • Scheduling depends on the length of the next CPU
    burst(lower the better)
  • SJF is optimal gives minimum average waiting
    time for a given set of processes
  • Difficulty ?knowing the length of the next CPU
    request

19
Shortest-Job-First (SJF) Scheduling
20
Example of SJF
  • Process Burst Time
  • P1 6
  • P2 8
  • P3 7
  • P4 3
  • SJF scheduling chart
  • Average waiting time (3 16 9 0) / 4 7
  • By moving a short process before a long one, the
    waiting time of the short process decreases more
    than it increases the waiting time of the long
    process. Consequently, the average waiting time
    decreases.
  • SJF scheduling is used frequently in long-term
    scheduling.

21
(No Transcript)
22
Determining Length of Next CPU Burst
  • How to implement it at short-term scheduler ?
  • Can only estimate the length
  • Can be done by using the length of previous CPU
    bursts, using exponential averaging

23
Examples of Exponential Averaging
  • ? 0
  • ?n1 ?n
  • Recent history does not count
  • ? 1
  • ?n1 ? tn
  • Only the actual last CPU burst counts
  • If we expand the formula, we get
  • ?n1 ? tn(1 - ?)? tn -1
  • (1 - ? )j ? tn -j
  • (1 - ? )n 1 ?0
  • Since both ? and (1 - ?) are less than or equal
    to 1, each successive term has less weight than
    its predecessor

24
Prediction of the Length of the Next CPU Burst
25
(No Transcript)
26
Preemptive SJF Algorithm
Shortest Remaining Time First Algorithm
Process Arrival Service
Time Time 1 0 8 2
1 4 3 2 9
4 3 5
Preemptive Shortest Job First
P2
P4
P1
P3
P1
0
5
10
26
1
17
Average wait ( (10-1) (1-1) (17-2) (5-3)
)/4 26/4 6.5
27
(No Transcript)
28
Priority Scheduling
  • SJF is a special case of the general priority
    schedule algorithm
  • Priority ? inverse of the next CPU Burst
  • A priority number (integer) is associated with
    each process
  • The CPU is allocated to the process with the
    highest priority (smallest integer ? highest
    priority)
  • Preemptive
  • Nonpreemptive
  • Problem ? Starvation low priority processes may
    never execute
  • Solution ? Aging as time progresses increase
    the priority of the process

29
Priority Scheduling
  • Average Waiting Time (0161618)/5 8.2

30
What about fairness ?
  • What about it?
  • Strict fixed-priority scheduling between queues
    is unfair (run highest, then next, etc)
  • long running jobs may never get CPU
  • In Multics, shut down machine, found 10-year-old
    job
  • Must give long-running jobs a fraction of the CPU
    even when there are shorter jobs to run
  • Tradeoff fairness gained by hurting avg response
    time!
  • How to implement fairness?
  • Could give each queue some fraction of the CPU
  • What if one long-running job and 100
    short-running ones?
  • Like express lanes in a supermarketsometimes
    express lanes get so long, get better service by
    going into one of the other lines

31
Fair Share Scheduling
  • Problems with priority-based systems
  • Priorities are absolute no guarantees when
    multiple jobs with same priority
  • No encapsulation and modularity
  • Behavior of a system module is unpredictable a
    function of absolute priorities assigned to tasks
    in other modules
  • Solution Fair-share scheduling
  • ? Each job has a share some measure of its
    relative importance
  • denotes users share of system
    resources as a fraction of the total
  • usage of those resources
  • ? e.g., if user As share is twice that of user
    B then, in the long term, A will receive twice
    as many resources as B
  • Traditional implementations
  • keep track of per-process CPU utilization (a
    running average)
  • reprioritize processes to ensure that
    everyone is getting their share
  • are slow!

32
Lottery Scheduling
  • Yet another alternative here.
  • Give each job some number of lottery tickets
  • On each time slice, randomly pick a winning
    ticket
  • On average, CPU time is proportional to number of
    tickets given to each job
  • How to assign tickets?
  • To approximate SRTF, short running jobs get more,
    long running jobs get fewer
  • To avoid starvation, every job gets at least one
    ticket (everyone makes progress)
  • Advantage over strict priority scheduling
  • behaves gracefully as load changes
  • Adding or deleting a job affects all jobs
    proportionally, independent of how many tickets
    each job possesses

33
Lottery Scheduling Example
  • Assume short jobs get 10 tickets, long jobs get 1
    ticket

34
Round Robin (RR)
  • Designed specially for time sharing system.
  • Each process gets a small unit of CPU time (time
    quantum), usually 10-100 milliseconds. After
    this time has elapsed, the process is preempted
    and added to the end of the ready queue.
  • The ready queue generally is circular queue.
  • Avg wait time is often long
  • If there are n processes in the ready queue and
    the time quantum is q, then each process gets 1/n
    of the CPU time in chunks of at most q time units
    at once. No process waits more than (n-1)q time
    units.
  • Performance
  • q large ? FIFO
  • q small ? q must be large with respect to context
    switch, otherwise overhead is too high
    processor sharing

35
Example of RR with Time Quantum 4
  • Process Burst Time
  • P1 24
  • P2 3
  • P3 3
  • The Gantt chart is
  • Avg Waiting Time ((10-4)47)/3 5.66
  • Typically, higher average turnaround than SJF,
    but no better response

36
Time Quantum and Context Switch Time
37
Turnaround Time Varies With The Time Quantum
38
Multilevel Queue
  • Ready queue is partitioned into
  • separate queues foreground (interactive) backg
    round (batch)
  • Each queue has its own scheduling algorithm
  • foreground RR
  • background FCFS
  • Scheduling must be done between the queues
  • Fixed priority scheduling (i.e., serve all from
    foreground then from background). Possibility of
    starvation.
  • Time slice each queue gets a certain amount of
    CPU time which it can schedule amongst its
    processes i.e., 80 to foreground in RR 20 to
    background in FCFS

39
Multilevel Feedback Queue
  • A process can move between the various queues
    aging can be implemented this way
  • Multilevel-feedback-queue scheduler defined by
    the following parameters
  • number of queues
  • scheduling algorithms for each queue
  • method used to determine when to upgrade a
    process
  • method used to determine when to demote a process
  • method used to determine which queue a process
    will enter when that process needs service

40
Example of Multilevel Feedback Queue
  • Three queues
  • Q0 RR with time quantum 8 milliseconds
  • Q1 RR time quantum 16 milliseconds
  • Q2 FCFS
  • Scheduling
  • A new job enters queue Q0 which is served FCFS.
    When it gains CPU, job receives 8 milliseconds.
    If it does not finish in 8 milliseconds, job is
    moved to queue Q1.
  • At Q1 job is again served FCFS
  • and receives 16 additional milliseconds.
  • If it still does not complete,
  • it is preempted and moved to queue Q2.

41
Thread Scheduling Contention Scope
  • The contention scope of a user thread defines how
    it is mapped to a kernel thread.
  • System contention scope/global contention scope
    user thread is a user thread that is directly
    mapped to one kernel thread.
  • All user threads in a 11 thread model have
    system contention scope.
  • Process contention scope/local contention scope
    user thread is a user thread that shares a kernel
    thread with other (process contention scope) user
    threads in the process.
  • All user threads in a M1 thread model have
    process contention scope.

42
Contention Scope
  • In an MN thread model, user
  • threads can have either system
  • or process contention scope Mixed Scope
  • The concurrency level is a property of MN
    threads libraries.
  • It defines the number of VPs used to run the
    process contention scope user threads.
  • This number cannot exceed the number of process
    contention scope user threads, and is usually
    dynamically set by the threads library.

43
Pthread Scheduling
  • Pthread API allows specifying either PCS or SCS
    during
  • thread creation
  • PTHREAD_SCOPE_ PROCESS schedules threads using
    PCS scheduling
  • PTHREAD_SCOPE_SYSTEM schedules threads using SCS
    scheduling.
  • Two functions for setting and getting
  • pthread_attr_setscope(pthread_attr_t attr, int
    scope)
  • pthread_attr_getscope(pthread_attr_t attr, int
    scope)

44
  • include ltpthread.hgt
  • include ltstdio.hgt
  • define NUM THREADS 5
  • int main(int argc, char argv)
  • int i
  • pthread_t tidNUM THREADS
  • pthread _attr_t attr
  • / get the default attributes /
  • pthread_attr_init(attr)
  • / set the scheduling algorithm to PROCESS or
    SYSTEM /
  • pthread_attr _setscope(attr, PTHREAD_SCOPE_SYSTE
    M)
  • / set the scheduling policy - FIFO, RR, or
    OTHER /
  • pthread_attr_setschedpolicy(attr, SCHED_OTHER)
  • / create the threads /
  • for (i 0 i lt NUM THREADS i)
  • pthread_create(tidi,attr,runner,NULL)
  • / now join on each thread /
  • for (i 0 i lt NUM THREADS i)

45
Multiple-Processor Scheduling
  • CPU scheduling more complex when multiple CPUs
    are available
  • Here we consider homogeneous processors within a
    multiprocessor
  • Asymmetric multiprocessing only one processor
    accesses the system data structures, alleviating
    the need for data sharing
  • Symmetric multiprocessing (SMP) each processor
    is self-scheduling, all processes in common ready
    queue, or each has its own private queue of ready
    processes
  • Processor affinity
  • Process has affinity for processor on which it is
    currently running
  • For avoiding to invalidate and repopulate caches
    due to migration
  • Soft Affinity (Ex Solaris)
  • Hard Affinity (Ex Linux, Solaris)

46
NUMA and CPU Scheduling
47
Multiple-Processor Scheduling Load Balancing
  • Distributing the load
  • Necessary for system, where each processor has
    its own private queue.
  • Approaches
  • Push Migration
  • Pull Migration
  • Generally implemented together
  • It often counteracts the benefit of processor
    affinity.

48
Multicore Processors
  • Recent trend to place multiple processor cores on
    same physical chip
  • Faster and consume less power
  • Multiple threads per core also growing
  • Takes advantage of memory stall to make progress
    on another thread while memory retrieve happens

49
Virtualization
  • It creates fake impression of the CPU(resources)
    for the guest operating systems running in
    virtual machines.
  • E.g Running a time sharing system or real time OS
    in virtual machine
  • Thus it can undo the good scheduling efforts.

50
Algorithm Evaluation
  • Need to make our criteria more specific by adding
    constraints
  • Approaches
  • Analytic Evaluation
  • Deterministic modeling takes a particular
    predetermined workload and defines the
    performance of each algorithm for that workload
  • It requires exact input and outcome is bound to
    the defined cases.

51
Deterministic Modelling
  • Process Burst Time
  • P1 10
  • P2 29
  • P3 3
  • P4 7
  • P5 12
  • FIFO
  • Non preemptive SJF
  • RR with TQ10

52
Queueing Models
  • Basically analysis comes from different
    distributions
  • Considers a computer system as a network of
    servers where each server has a queue off waiting
    processes.
  • Computes utilization, avg queue length, avg wait
    time through arrival and service rates
  • This is queueing network analysis
  • Littles Formula n ?W
  • Has limitations on the classes of algorithm it
    could be applied.
  • Mathematical equations does not always represent
    realistic situations

53
Evaluation of CPU schedulers by Simulation
Implementation High Cost for evaluation
Dynamic nature of coders/users Best to have
options for fine tuning .
54
Linux Scheduling
  • Preemptive priority based implementation
  • Two priority ranges time-sharing and real-time
  • Real-time range from 0 to 99 and nice value from
    100 to 140

55
List of Tasks Indexed According to Priorities
  • Kernel maintains list of all runnable tasks in a
    runqueue data structure
  • Each process maintains own runqueue
  • Each runqueue contains two priority arrays
    active expired

56
Solaris Scheduling
57
End of Lecture 5
Write a Comment
User Comments (0)
About PowerShow.com
