LCLS Timing

1
LCLS Timing

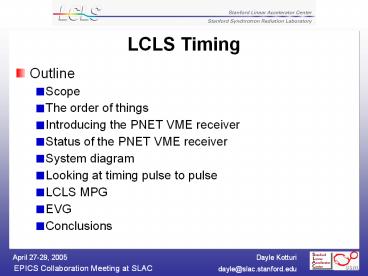

• Outline
• Scope
• The order of things
• Introducing the PNET VME receiver
• Status of the PNET VME receiver
• System diagram
• Looking at timing pulse to pulse
• LCLS MPG
• EVG
• Conclusions

2
Scope

• LCLS timing system is used to transmit a fiducial
  360 Hz signal to all triggered devices in LCLS
• System requirements (speed and content) are
  known receive 128 bit PNET data at 360 Hz
  append addl info operate at 120 Hz
• The component parts are known PNET VME receiver,
  EVG-200 and EVR-200
• The interfaces are being defined

3
The order of things

• The one and only SLC Master Pattern Generator
  (MPG)
• Takes as input 360 Hz fiducial from SLC PDU is
  the signal to create a new PNET buffer
• Performs tasks
• creates PNET buffers
• responds to faults
• Outputs PNET buffers to all micros and PNET VME
  receiver on the next 1/360 s fiducial

4
Introducing the PNET VME receiver

• N

5
Status of the VME PNET receiver

• Hardware prototype is finished (1 instance)
• Board is 3 slots wide to accommodate on board
  cable modem interface to PNET
• Engineering Design Specification doc written
• Driver and device support (bi, mbbiDirect to
  access each variable in PNETbuffer) written.
  Compiled only for Synergy PPC running RTEMS 4.6.2

6
System Diagram
7
Looking at timing pulse to pulse
8
Looking at timing pulse to pulse
9
Looking at timing pulse to pulse
10
LCLS MPG

• Takes the PNETbuffer with appended epicsTimeStamp
  and checksum fault indicators
• Adds on LCLS application commands
• Adds on any newly detected faults
• Informs EVG that data is ready

11
EVG

• On board FPGA packages/chunks 24 byte LCLS MPG
  data and sends to EVR at 125 MHz
• Data arrives in EVR in 0.6 microseconds fiber
  travel time (which depends on distance)

12
Conclusions

• LCLS MPG needs to be designed
• LCLS MPG/EVG interface needs defining
• EVR/SLC-aware IOC interface needs defining
• Performance and reliability from PNET through to
  EVG must be measured
• But I guess there has been some progress
