CISC

1

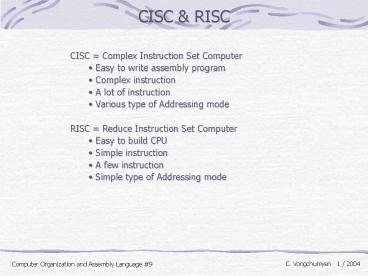

CISC RISC

• CISC Complex Instruction Set Computer
• Easy to write assembly program
• Complex instruction
• A lot of instruction
• Various type of Addressing mode
• RISC Reduce Instruction Set Computer
• Easy to build CPU
• Simple instruction
• A few instruction
• Simple type of Addressing mode

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
2
RISC

• 1979 First RISC has been create by IBM
• Name IBM 801 by John Cocke
• Berkeley RISC by David A. Patterson
• Stanford MIPS by John L. Hennessy
• Supported by DARPA
• DARPA Defense Advanced Research Projects Agency


C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
3
RISC

• Hennesy MIPS
• IBM improve IBM 801 and use with IBM PC RT
• IBM PC RT is the first RISC computer
• But failed on market
• Next generation of RISC is PowerPC
• Sun Microsystems built Sparc base on Berkeley
  RISC (1987)
• PowerPC (1990)
• DEC Alpha (1993)
• After 1995 No more CISC CPU in market, Even
  Intel (IA64)

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
4
CISC s Problem

• A lot of instruction, Complex instruction
• Loop CX-1, CX 0 ?, Jump is yes
• Various type Addressing mode (8086 has 8 mode)
• Advancetage - Easy on programming
• - A few use of register
• Disadvancetage - Many from of Opcode
• - Cant fix instruction size
• - Complex decoder unit
• Must implement CU by Microcode or Microprogram
• (In early CPU use Hardwired)

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
5
CISC Upgrade

• A lot of instruction, Various type of addressing
  mode,
• Many step in one instruction, Take more time.
• Use Pipeline to improve speed
• But Pipeline still have problem

Simple pipeline 2 stages Fetch and Execute
C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
6
RISC Design

• - A few instruction (lt 128), only necessary
  instruction
• - fix instruction length ( Data bus size)
• In fact not all instruction, but only 80 is OK
• - Simple addressing mode (not more than 4 type)
• 2. - 1 Clock operation (Most, except Div, Mul
  etc)
• - CU by Hardwired technique
• 3. - Only access memory with Load and Store
  instruction
• (Load/Store Architecture) to reduce addressing
  mode
• 4. - A lot of register (At least 32 registers)

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
7
RISC s Compiler Design

• Old compiler try to use memory,
• Local variable keep in stack
• But for RISC use register,
• All local variable keep in register
• Call make a lot set of local variable, Use
  register window
• One window for one function one local variable
  group
• One window for global
• (all of register window are in CPU)
• And reduce register dependence

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
8
PowerPC 7400 (G4)

• 32 bit CPU use in Macintosh
• 5 Execution units Floating Point Unit, Branch
  Processing Unit,
• Load/Store Unit and 2 unit of Integer Unit
• 1 Vector Unit use for SIMD instruction
• Maximum 3 instruction / clock
• 0.15 micron
• L1 cahce 32 32 KB
• 6.5 million transistor, 83 Square millimeter die
• Speed by SPECInt95 21.4, SPECfp95 20.4 at
  450 MHz
• by MIPs 825 MIPs (Pentium II 18.7 and 13.7
  FPU)
• BGA packaging (Ball Grid Array)

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
9
PowerPC 7400 (G4)
C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
10
Sparc from Sun

• UltraSparc IIi 64 bit CPU
• 9 Execution unit, 4 Integer, 3 Floating Point
  and 2 Graphics
• L1 cache 16 16 KB
• Speed by SPECInt95 20.2, SPECfp95 22.5 at
  480 MHz
• 5.4 million transistors
• UltraSparc III (1999)
• Speed by SPECInt95 35, SPECfp95 60 at 600
  MHz
• L1 cache 16 16 KB

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
11
UltraSparc IIi
C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
12
Alpha

• Alpha 21164 is a 64 bit CPU
• 4 Instruction / clock
• L1 cache 8 8 KB
• L2 cache 96 KB
• Fabrication on 0.35 micron
• Frequency 600 MHz
• Speed by SPECInt95 18, SPECfp95 27
• 2.4 Billion instruction per second

C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
13
Alpha 21164
C. Vongchumyen 1 / 2004
Computer Organization and Assembly Language 9
