Functional Anatomy

1

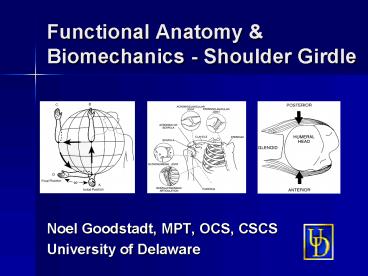

Functional Anatomy Biomechanics - Shoulder
Girdle

• Noel Goodstadt, MPT, OCS, CSCS
• University of Delaware

2
Shoulder Girdle Complex

• 4 Articulations
• 1. Glenohumeral Joint (Shoulder)
• 2. Acromioclavicular Joint (AC)
• 3. Sternoclavicular Joint (SC)
• 4. Scapulothoracic Joint (ST)

3
Sternoclavicular Joint

• Medial clavicle - manubrium of the sternum 1st
  costal cartilage
• 2 saddle-shaped joint surfaces with a disk in
  between
• Only articulation of UE to axial skeleton
• 3 DOF

4
Degrees of Freedom

• 45º Elevation 15º Depression about A-P axis in
  frontal plane
• 15º of Protraction Retraction about S-I axis in
  trans. Plane
• 30-50º Rotation about its longitudinal axis
• Must rotate appropriately to allow normal
  scapular rotation

5
Clavicle Fractures

• May restrict motion at SC / AC joints, which can
  lead to problems throughout the shoulder girdle

6
Acromioclavicular Joint

• Lateral clavicle - acromion of scapula
• 3 DOF
• Another 30º of rotation
• combined with SC jt 60º
• accounts for 1/3 of the 180º of shoulder
  elevation

1st 30º is GH (setting), then 21 GHAC-SC
7
AC Joint

• AC Joint sprains are fairly common
• MOI - Fall on shoulder or contact in sports
• Most can be treated with Fig.-8 strap PT
• Distal clavicle resected when necessary

8
AC Joint

• Painful or degenerative AC joint can restrict /
  alter shoulder ROM
• Always a differential Dx with impingement
  conditions
• Impingement tests may be positive
• Dx. Tests
• Cross Body Adduction
• Se 77, Sp 79
• OBriens Test
• Se 41, Sp 92
• AC Resisted Extension Test
• Se 72, Sp 84

Efstathios, et al 2004
9
AC Sprains

• Type I
• Sprain of AC ligaments and capsule
• No loss of joint stability
• Type II
• Same as Type I with disruption of AC ligaments
• Sprain to the CC ligaments
• Joint stability A/P compromised

10
AC Sprains

• Type III
• Complete AC and CC rupture
• Joint stability compromised S/I and A/P
• Type IV - VI
• More severe variations of Type III
• displacement of the clavicle
• Consider muscle damage or compromise depending on
  displacement

11
Scapulothoracic Articulation

• The articulation between the scapula and the
  thorax
• Angle of orientation
• 30-50º anterior frontal plane
• GH - Elevation in this plane is referred to as
  scaption
• Plane of the Scapula (POS)
• Least resistance

12
Scapulothoracic Articulation

• Motions of the Scapula
• Protraction-Retraction
• Elevation-Depression
• Abduction-Adduction
• Upward Downward Rot
• Anterior-Posterior tilting

13
Scapulothoracic Articulation

• Mobility vs. Stability
• Musculature attachment to axial skeleton
• Bony attachment through SC joint via the clavicle
• relatively unstable base

14
Scapular Stabilizers

• Serratus Anterior
• Trapezius
• Rhomboids
• Levator Scapula
• Pectorals
• Latissimus Dorsi

Depresses Humeral Head
15
Importance of Upward Rotation

• Upward rotation
• glenoid to remain in articulation with the
  humeral head
• promotes stability
• Maintains the muscles length-tension relationships

16
3D Scapular Position Orientation

• Lukasiewicz et al. 1999
• 37 subjects normals patients with impingement
• Connected to a 3D electromechanical digitizer
• measuring position and orientation with arm at
  the side, elevated in POS to horizontal, and at
  maximum elevation
• Conclusion The chief abnormality in patients
• lack of posterior tilting and excessive superior
  translation

17
Clinical Evaluation of Scapular Dysfunction

• Kibler et al., 2002
• Reliability study Compared 2 physicians and 2
  physical therapists ability to assess for
  scapular abnormalities
• 26 subjects videotaped, six normals
• 4 defined categories of scapula abnormalities
• Conclusion A moderate level of agreement and
  reliability was present for intertester
  reliability and slightly greater intratester
  reliability

18
Scapulohumeral Rhythm

• Coordinated activity of all articulations of the
  shoulder complex
• Positions glenoid to articulate with humeral head
• Maintains appropriate length/tension
  relationships for dynamic stability

19
Scapulohumeral Rhythm

• The scapular stabilizers provide a stable base
  for shoulder mobility
• Proximal stability promotes distal mobility
• Neuromm. Control
• key component to dynamic shoulder stability

20
Glenohumeral Joint

• 6 Degrees of Freedom
• Greatest ROM of any Joint

A Balance of Mobility
Stability
21
Glenohumeral ROM

• Total
• Forward Elevation 120 degrees 180
• Extension 55 degrees
• Abduction 120 degrees 180
• Internal Rotation 70 degrees 90
• External Rotation 90 degrees
• Horizontal Adduction 45 degrees
• Horizontal Abduction 35 degrees
• AAOS

22
Mechanisms of Shoulder Joint Stability
Shoulder Stability
Static Factors
Dynamic Factors
23
Static Factors

• Articular Bony Anatomy
• Glenoid Labrum
• Capsule Ligaments
• (-) Intra-articular Pressure
• Adhesion - Cohesion

24
Bony Anatomy

• Scapular Orientation
• 30 anterior to the frontal plane
• Glenoid Version
• 7 retroversion
• 5 inclination
• Humeral Orientation
• angle of inclination 130 - 150
• angle of torsion 30 retroversion

25
Size Mismatch
Humeral Head is Large
Glenoid Fossa surface area is 25-30 of
the Humeral Head surface area
Glenoid Fossa is Smaller More Shallow
26
Glenoid Labrum

• Fibrous ring around the periphery of the glenoid
• Anchor point on the glenoid for the
  capsuloligamentous structures

27
Glenoid Labrum

• Contributes to stability by increasing socket
  depth approximately 50 in all directions
• Howell Galinat, Clin Orthop, 1989

28
Glenoid Labrum

• Stabilizing role with compression even after
  ligaments have been cut / disrupted

Must have both Labrum and Ligament Pathology to
Dislocate
29
Capsuloligamentous Structures

• Rotator Cuff Interval
• Supraspinatus Subscapularis
• SGHL, CHL, MGHL
• Middle Glenohumeral Ligament
• Inferior Glenohumeral Ligament Complex
• Posterior Capsule

30
Rotator Interval

• SGHL CHL limits inferior translation
• 0o to 30o Abd. (50o)
• also limits ER in this range

31
Middle Glenohumeral Ligament

• Primary restraint to anterior translation in 45o
  -75o Abduction
• Limits ER in mid-abduction

32
Inferior Glenohumeral Ligament Complex

• Anterior Band
• Posterior Band
• Axillary Pouch

33
IGHL Complex

• At 90o Abd neutral rotation supports humeral
  head like a hammock
• ER - moves ant. forming a barrier to anterior
  dislocation
• IR - moves post. forming a barrier to posterior
  dislocation

34
Negative Intra-articular Pressure

• Pressure within the joint is (-) creating a
  vacuum in the joint
• Levick, J Rheum, 1983
• Kumar et al, JBJS, 1985
• Venting of capsule increases translation
• Gibbs et al, CORR, 1991

35
Adhesion - Cohesion

• Viscous Intermolecular forces from wet surfaces
  of the joint provide
• High tensile strength (difficult to pull
  apart)
• Low shear strength (slide easily)
• Matsen et al, Glenohumeral Instability, 1998

36
Dynamic Factors

• Rotator Cuff Biceps
• Scapular Stabilizers
• Coordinated Scapulohumeral Rhythm
• Neuromuscular Control

37
Rotator Cuff

• Supraspinatus
• Infraspinatus
• Teres Minor
• Subscapularis

38
Rotator Cuff

• Rotator cuff muscles tendons function as
  Dynamic Ligaments

39
Supraspinatus

• Resultant Force is towards
• Joint Compression
• Poppen et al, JBJS, 1976
• Inman et al, JBJS, 1944

40
Posterior Rotator Cuff Subscapularis

• Humeral Head depressors and apply compressive
  force
• Reduce anterior strain on ligaments

41
Rotator Cuff - Deltoid

• Balance of Forces / Coupled for Stability
• Cuff reduces shear force of deltoid
• Depresses the humeral head to prevent superior
  migration force of deltoid (impingement)

42
Impingement Syndrome

• Pathological compression
• Supraspinatus
• Subacromial bursa
• LHB
• Compression occurs
• Coracoacromial arch
• Anterior third of the acromion
• AC joint

43
Impingement Syndrome

• Irritation of the rotator cuff muscle
• Compromises its function as a depressor of the
  humeral head

44
Impingement Syndrome

• A reactive progression of this syndrome is
  defined by a narrowing of the subacromial outlet
  by spur formation in the coracoacromial ligament
  and on the undersurface of the anterior third of
  the acromion.

45
Impingement Syndromes

• Typical History
• Painful arc of motion with elevation
• Painful with overhead activities
• Often Painful with quick movements
• Usually cannot sleep on that shoulder
  due to pain
• ?Night Pain
• Often have Hx of repetitive activity
• Need to rule out other causes
• Differentiate primary vs. secondary impingement

46
Impingement Locations
47
Impingement Classification

• Primary
• Structural Issue - Loss of Space
• Due to anatomical variations or degenerative
  spurring
• Secondary
• Due to Instability (excess translation)

48
Primary Impingement

• Result of abnormal mechanical relationship
  between the rotator cuff and the coracoacromial
  arch
• Factors that increase primary impingement
• AC joint congenital anomoly degenerative
  spur
• Coracoid congenital anomoly
• abnormal shape (surgery/trauma)
• RC Calcific deposits
• tendon thickening (surgery/trauma)
• upper surface irregularities (tears)
• Humerus increased prominence of greater
  tuberosity from congenital anomolies or
  malunions

49
Primary Impingement

• Acromial Morphology

50
Primary Impingement

• Neers Stages of Impingment Syndrome
• Stage I Edema and Inflammation
• Stage II Fibrosis and Tendinitis
• Stage III Bone Spurs and Tendon Ruptures

51
Primary Impingement

• Stage I Edema and Inflammation
• (lt 25 years)
• Reversible lesion
• Tender to palpation over greater tuberosity
• Tender to palpation over anterior ridge of
  acromion
• Painful arc 60º - 120º
• Impingement sign
• Restricted ROM with significant subacromial
• inflammation

52
Primary Impingement

• Stage II Fibrosis and Tendinitis
• (25-40 years)
• Not reversible by modifying activities and time
• Greater degree of soft tissue crepitus
• Catching sensation with lowering of the arm 100º
• Limited A/PROM of the shoulder
• All the signs from Stage I

53
Primary Impingement

• Stage III Bone Spurs and Tendon Ruptures (gt40
  years)
• Not reversible conservatively
• Limited shoulder ROM, which is more pronounced
  with AROM
• Infraspinatus atrophy
• Weakness of shoulder abduction and ER
• Biceps tendon involvement
• AC Tenderness
• Signs from Stage I II

54
Primary Impingement

• Degenerative Spurring

55
Secondary Impingement

• Associated with Instability - static/dynamic

56
Secondary Impingement

• Relative Narrowing
• Result of GH or scapulothoracic joint instability
• GH instability RC dysfunction
• Overworked to stabilize
• Leads to an abnormal superior translation of the
  humeral head
• ST instability RC dysfunction
• Improper positioning of the scapula with relation
  to the humerus

57
Rotator cuff weakness or fatigue
Scapulothoracic muscle weakness or fatigue
Overload of passive restraints
Functional scapulothoracic instability
Disruption of scapulohumeral rhythm
Glenohumeral instability
Relative subacromial space narrowing
Secondary subacromial impingement
58
Secondary Impingement

• Usually younger
• Participate in overhead sporting activities
• Baseball
• Swimming
• Volleyball
• Tennis
• May describe a feeling of the arm going dead

59
Secondary Impingement

• Joint Mobility Restrictions
• Thickening of tendons from injury or surgery
• Posterior Capsule Tightness

60
Examination of Impingement

• symptoms
• pain with arm movement above the horizontal
• ?night pain
• signs
• impingement tests
• weak and painful supraspinatus mm. tests

61
Neers Sign

• Forward elevation with overpressure
• Arm medially rotated
• Cuff is impinged between the greater tuberosity
  the acromion
• Pain decreases with lowering of the arm
• If positive with the arm laterally rotated check
  the AC joint

• (Magee, 4th ed.)

62
Neers Impingement Test

• Diagnostic test
• Inject anesthetic agent into subacromial space
  and repeat the Neers sign. If pain is no longer
  there, the test is () for subacromial
  impingement
• ?? Noxious Stim.

63
Hawkins-Kennedy Test

• Arm is IR in 90º of FE
• Can vary degrees of horizontal add/abd.
• (Magee, 4th ed.)
• Pain is indicative of cuff/biceps impingement on
  CA ligament or AC jt.

64
Secondary Impingement

• () Impingement signs () signs for instability
• Also have Hx consistent with instability

65
Posterior-Superior Impingement

• Also called internal impingement
• Found in overhead athletes that throw or strike
• Pain in posterior-superior shoulder in 90º/90º
  position
• Secondary to anterior laxity
• Irritation of the posterior-superior capsule and
  rc as it tries to balance for the increased
  anterior translation

66
Coracoid Impingement

• Aka Cross-body adduction sign
• Horizontal Adduction with overpressure
• Pain is indicative of impingement on the bursa,
  AC pathology, or posterior cuff/capsule
• Depends on location of the pain

67
Manual Muscle Testing

• Depending on the severity and duration of
  symptoms, the patient may or may not have
  weakness, but usually will have pain
• Can you accurately grade strength in presence of
  pain?
• Generally most notable in Supraspinatus, but also
  in posterior cuff
• test in various angles

68
Cuff Testing

• External rotation
• _at_ 0º of abduction
• _at_ 90º of abduction
• Internal rotation
• _at_ 0º of abduction
• _at_ 90º of abduction
• Varying angles between and above

69
Rotator Cuff Pathology

• Full vs. Empty Can - Isolated Supraspinatus MMT
  at 90º of elevation in POS
• Positive if weakness or pain or both occur
• Indicative of a tear of the tendon, neuropathy of
  the suprascapular nerve
• tear???

70
Empty vs. Full Can

• Concluded the optimal test for the supraspinatus
  to be the full can position
• decreased infraspinatus activity.
• Kelly, 1996
• Criterion Weakness increases accuracy for dx of
  a tear.
• Itoi, et al. 1999
• Empty Can Test is more pain provocative, both
  tests were equivocal with weakness for
  sensitivity of a partial or full thickness tear.
• Kim, et al. 2006

71
Rotator Cuff Pathology

• Drop Arm Test
• Abduct patients shoulder to 90º
• have patient slowly lower it to their side
• test if patient is unable to lower arm slowly
  from 90º or has severe pain
• Patients age can help in differential dx.
• (Magee 4th ed.)

72
Rotator Cuff Pathology

• Subscapularis Testing
• Lift-Off Test
• Belly Press Test
• Tokish et al., 2003
• Concluded that the belly press test maximally
  activates the upper fibers, and the lift-off test
  maximally activates the lower fibers. (plt.05)
• Positive finding
• lag sign

73
Rotator Cuff Pathology

• Mechanism Classifications
• Tensile vs. Compressive
• Primary vs. Secondary
• Partial vs. Full

74
Tensile Cuff Failure

• Primary Tensile Cuff Disease
• Occurs in stable shoulders
• Rotator cuff begins to tear due to the loads
  it sees in decelerating the shoulder
• Secondary Tensile Cuff Disease
• Instability adds to the forces the cuff sees and
  leads to cuff tears

75
Partial Thickness Cuff Tears
76
Partial Thickness Cuff Tears

• Outside-in tears
• General orthopaedic population
• Neers Stage III - Middle Age to Elderly
• Wear and tear from the superior surface of the
  Supraspinatus and/or other RTC mm.
• Inside-out tears
• Younger, most likely athletes
• Wear and tear of the undersurface of the muscle
  from the humerus
• RC is challenged to center the humeral head in
  the glenoid
• Cyclic progressive failure

77
(No Transcript)
78
Conservative Treatment

• Most impingement and partial rotator cuff tears
  can be treated non-operatively
• Most important component is protection from
  contributing factor (Relative Rest)
• NSAIDS

79
Conservative Treatment

• Factors in individualizing treatment
• Age
• Stage I vs. Stage II
• Activity Level
• Impairments

80
Conservative Treatment

• Ice other modalities (E-stim., Phoresis, etc.)
• Treat the tendons involved
• Stretching Strengthening in the PAINLESS ROM
• mobilization vs. manual stretch
• Joint restrictions often inferior and posterior
  capsule
• Early physiologic range stretching may be limited
  by impingement pain
• Soft Tissue tightness often subscapularis and
  pectoralis tightness
• strengthening start at 0º of abduction and
  progress up

81
Conservative Treatment

• Start by emphasizing the scapular stabilizers
  (need to provide a stable base for the GH jt)
• What scapular mm. exercise can impinge the
  shoulder?
• Strengthen cuff in the painless ROM
• Use the overload principle as soon as the acute
  stage is under control
• Also work on dynamic stabilization of the GH jt.
• Shrug Sign

82
Exercise principles

• Position supine to upright
• Avoid shoulder hike
• Mode passive to active assist to active
• Frequency, not intensity - submaximal
• Avoid impingement/significant discomfort
• ROM upstairs/strength downstairs
• Functional exercise - synergy

83
Conservative Treatment

• Phase 1
• Maximal Protection Acute Phase
• Phase 2
• Motion Phase Subacute Phase
• Criteria for progressing into phase 2
• Decreased pain and/or sx
• Increased ROM
• Improved muscle function

84
Conservative Treatment

• Phase 3 Intermediate Strengthening
• Criteria for progression to Phase 3
• Decrease in pain and sx.
• Normal AAROM
• Improved muscular strength
• Phase 4 Dynamic Advanced Strengthening
• Criteria for progression to Phase 4
• Full, non-painful ROM
• No Pain or sx.
• Greater than 70 strength of the uninvolved

85
Functional Training

• When the athlete demonstrates good strength and
  appropriate control of the shoulder girdle,
  progress to functional activities
• Overhead strengthening
• Criterion no shoulder hike and no increase in
  pain
• Release to an interval program once patient is
  independent and understands the soreness rules

86
Rx Should be a Team Effort

• Athlete - Therapist - Physician - Trainers -
  Coaches - Family, etc.
• Biomechanical analysis of sport skills may be
  necessary
• If progress is slow a corticosteroid injection
  may help
• Do Not let them work through pain
• Unsuccessful if no improvement after 3 months

87
When conservative management fails

• Surgical intervention
• Primary impingement
• Widening the subacromial outlet by arthroscopic
  decompression acromioplasty
• Secondary impingement
• Directed toward the etiology of the symptoms
• Ex surgical treatment for anterior joint
  instability would include anterior stabilization

88
Subacromial Decompression/ Partial Tear
Debridement

• Generally can move the shoulder to tolerance
  immediately passively
• Stages of Healing
• DCE (similar to Type II AC separation)
• If substitution patterns exist do not allow the
  patient to use them
• Control symptoms and promote normal motion and
  muscle activity
• Pain increase generally at 2-6 weeks post-op

89
Procedure - Arthroscopic Subacromial Decompression

• Visualization
• scope minimal incision
• Fixation
• none
• Anterior Deltoid compromise

90
Modification to Rehabilitation

• Primarily due to partial resection of acromion
  and its deltoid attachment
• Avoid resisted flexion, abduction, and horizontal
  adduction for 4 weeks
• Avoid passive horizontal abduction

91
Mini-Open Rotator Cuff Repair

• Most common open procedure
• Deltoid is split
• Use suture anchors or suture in trough for
  fixation

92
Mini-Open Rotator Cuff Repair

• Visualization
• split the deltoid
• Fixation
• in bone trough in the humerus
• sutures through the bone /or suture anchors
• greater fixation than arthroscopic
• Surgery
• always supraspinatus
• maybe infraspinatus and teres minor
• ? RC Interval is closed

93
Mini-Open Rotator Cuff Repair

• Large Tears gt 5cm, retracted
• Tendons are effectively shortened, so expect some
  tightness
• Other pathology may exist
• Activity level of patient - ??

94
Factors Affecting Rehabilitation

• Restrictions depend on surgeon
• (No Active ER ABD for 4 - 12 weeks)
• Usually based on size of tear and whether the
  muscle retracted
• Quality of muscle tissue will also effect
  restrictions
• Passive restrictions will also exist
• what muscles were repaired?
• avoid passive internal rotation for 2-4 weeks
• At the least supraspinatus was sick
• Other tendons might be involved

95
Rehabilitation Concerns

• Rehab must allow for tissue healing constraints
• Primarily a result of tendinous repair
• Key Issues
• Fixation Strength
• Soft tissue healing to bone

96
Primary Goals

• Maintain integrity of repair
• Re-establish passive mobility
• Re-establish muscular balance
• Reduce pain muscular inhibition
• Return patient to full activities

97
Continuum of Treatment

• PROM
• Dynamic Stabilization
• AROM
• RROM

98
General Surgical Principles

• visualization
• many of the precautions for therapy are a result
  of structures that are violated in order for the
  surgeons to be able to see
• fixation
• principles of mechanics and biologic healing set
  other precautions for rehabilitation procedures

99
General Principles

• surgery
• the structures that were resected, repaired or
  reconstructed also affect the rehabilitation
  procedures

100
Procedure -Arthrotomy (open)

• visualization
• incision - more precautions associated with
  visualization
• fixation
• mechanical fixation is usually excellent

101
Procedure -Arthroscopy

• visualization
• fewer precautions because scope allows
  visualization and access with minimal damage to
  structures on the way in

102
Procedure -Arthroscopy

• fixation
• often technically impossible to achieve fixation
  strengths comparable to those in open procedures

103
Biologic Healing

• dependent on the structures and their inherent
  healing potential, not procedure dependent
• Surgery-Modified Rehab
• dependent on tissue blood supply

104
Summary

• all aspects of the surgical procedure
  (visualization, fixation and the repair or
  reconstruction itself) necessitate modification
  of the rehabilitation program
• modifications include alterations in timing, type
  and intensity of exercise

105
Summary

• knowledge of surgical procedure can assist the
  therapist in designing the most cost-effective
  and time-efficient rehabilitation programs for
  patients

106
Arthroscopic Repair

• Increasing number of arthroscopic RC repairs
• Visualization
• Nothing is taken down, unless combined with
  another procedure
• Fixation
• Still not proven to be better than the gold
  standard
• More difficult procedure
• Rehab
• Limitations may need to be extended by 1-2 weeks
• Less post-operative pain

107
Arthroscopic Rehabilitation Guidelines

• Diminished fixation strength compared to
  mini-open
• Slower progression
• Patient often feels better
• Need to protect healing tissue early
• Arthroscopic failed earlier earlier gapping
  with less force
• (Burra, Jablonski,Cain AOSSM 2002)

108
Return to Sports

• Upon completion of step wise progression of
  rehab.
• ROM
• Stabilization
• Strengthening
• Normalized function
• Golf 14-16 weeks
• Tennis 20 weeks
• Swimming 22 weeks

109
(No Transcript)
110
LAB
