Title: PowerPoint-Pr


1

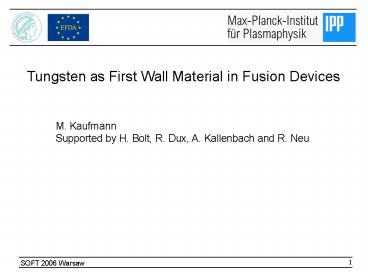

Tungsten as First Wall Material in Fusion Devices
M. Kaufmann Supported by H. Bolt, R. Dux, A.
Kallenbach and R. Neu
2
Tungsten as First Wall Material in Fusion Devices
  1. Introduction
  2. Plasma Wall Interaction with Tungsten
  3. Edge and Core Transport
  4. Technological Developments
  5. Summary

3
Introduction PLT with tungsten limiter (1975)
V. Arunasalam et al., Proc. 8th Conf. EPS,
Prague 1977
Consequence of accumulation and central
radiation! Since then most tokamaks and
stellarators have used graphite as first wall
material.
4
Tokamaks with High-Z-surfaces
  • Limiter tokamaks
  • FTU (ENEA)
  • Textor (FZJ)
  • Divertor tokamaks
  • Alcator C-Mod (MIT)
  • ASDEX Upgrade (IPP)
  • future JET
  • ITER

M.L. Apicella et al., Nucl. Fusion 37
A. Pospieszczyk et al., J. Nucl. Mater. 290-293
B. Lipschultz et al., Nucl. Fusion 41
R. Neu et al., Plasma Phys. Control. Fusion 38
J. Pamela, this conference
G. Janeschitz,J. Nucl. Mat. 290-293
5
FTU (ENEA Frascati)
until 1994poloidal limiter(steel, TZM,
W) now toroidal limiter TZM
M.L. Apicella, et al., J. Nucl. Mater. 313-316
6
Alcator C-Mod (MIT)
Divertor configuration witha complete set of
Mo-tiles
B. Lipschultz et al., Phys. Plasmas 13
7
ASDEX Upgrade (IPP Garching)
Stepwise approach remaining parts will be
covered with tungsten in the 2007 campaign!
R. Neu et al., Nucl. Fusion 45
8
Graphite versus Tungsten
positive
negative
graphite low central radiation
high erosion radiation in
boundary tritium co-deposition
forgives overload
destruction by neutrons
tungsten low erosion
high central radiation low
tritium co-deposition accumulation in
centre resistant to neutrons
critical with overload
radioactive, however, short decay
time
9
Graphite versus Tungsten
tungsten low erosion
high central radiation low
tritium co-deposition accumulation in
centre resistant to neutrons
critical with overload

Test in linear machines of limited relevance!
10
Graphite versus Tungsten
positive
negative
graphite low central radiation
high erosion radiation in
boundary tritium co-deposition
forgives overload
destruction by neutrons
tungsten low erosion
high central radiation no
tritium co-deposition accumulation in
centre resistant to neutrons
critical with overload

JET/ITER-generation
11
Graphite versus Tungsten
positive
negative
graphite low central radiation
high erosion radiation in
boundary tritium co-deposition
forgives overload
destruction by neutrons
tungsten low erosion
high central radiation no
tritium co-deposition accumulation in
centre resistant to neutrons
critical with overload

DEMO-generation
12
Tungsten Erosion versus Radiation
  • W-erosion much lower than graphite!

13
Tungsten Erosion versus Radiation
  • But central W-radiation much higher!

14
Ignition Condition Tungsten vs. Carbon
15
Gain Experience Diagnostic
graphite extensive experience tungsten
limited experience
  • W-lines at low temperature to determine influx
    (Textor)

W-lines at high temperature to determine core
concentration (AUG)
A. Pospieszczyk et al., to be published
A. Thoma et al., Plasma Phys. Control. Fusion 39
16
Tungsten as First Wall Material in Fusion Devices
  1. Introduction
  2. Plasma Wall Interaction with Tungsten
  3. Edge and Core Transport
  4. Technological Developments
  5. Summary

17
Plasma Wall Interaction
  • Low erosion no formation like hydro-carbons
    ? low hydrogen retention (0.1
    1 instead of 40100)

R. Causey, J. Nucl. Mater. 300J. Roth, M. Mayer,
J. Nucl. Mater. 313-316
W high mass, low velocity of eroded particles
? ionization length ltlt gyro radius ? 90
prompt redeposition
C
W
D. Naujoks et al., Nucl. Fusion 36
18
Erosion on Target Plates/Limiter
V. Philipps et al., PPCF 42
19
Sources for W-Erosion ELMs
Typical ITER reference H-mode
pressure profile forms steep edge
pedestal
Pedestal breaks down during ELMs!
ELMs produce main chamber erosion and target
plate erosion. In both cases sputtering by low
Z-components dominant.
A. Herrmann et al., accepted for publ. in J.
Nucl. Mater
20
Sources for W-Erosion NBI
  • Fast particles losses from neutral beam injection
    can be identified as a tungsten source on
    limiters.
  • Increase during ELMs.

R. Dux et al., accepted for publ. in J. Nucl.
Mater
Quantitative agreement with calculations ?
Extrapolation to ITER no problem! R.Dux, to be
published
21
Sources for W-Erosion ICRH
Alcator C-Mod
In ICRH heated plasmas without boronization
high radiation by molybdenum. Strongly reduced
by boronization. However, effect lasts only for
10s total pulse duration.
B. Lipschultz et al., Phys. Plasmas 13
Localized boronization by ECRH helps to identify
zone of Mo-erosion.
22
Sources for W-Erosion ICRH
Conclusions
  • small zone on top of divertor responsible
    for Mo-erosion.
  • field lines map back to antenna.
  • sheath potential 100-400eV

23
Sources for W-Erosion ICRH
Can one reduce the sheath potential?
Faraday screen parallel to field lines small
effect
Is tungsten ITER/reactor compatible? ICRH reactor
compatible?
Lots of open questions!
Vl.V. Bobkov et al., accepted for publ. in J.
Nucl.
24
Replacement of Carbon as Radiator
  • Carbon radiates in the plasma boundary.
  • It reduces therefore the load to the target
    plates considerably.
  • It is highly self-regulating!
  • Replacement by a noble gas such as Argon or Neon
    seems necessary Robust feed back method is
    needed!

Control by thermo currents through divertor
plates
controlled argon seeding
A. Kallenbach et al., J. Nucl. Mater. 337-339
25
Tungsten as First Wall Material in Fusion Devices
  1. Introduction
  2. Plasma Wall Interaction with Tungsten
  3. Edge and Core Transport
  4. Technological Developments
  5. Summary

26
Neoclassical Transport
Neoclassical transport by Coulomb collisions
including drift motion leads to two fluxes.
diffusion
inward drift
Strong peaking of tungsten concentration in case
of peaked density profiles ( small) is
expected.
27
Transport in the H-Mode Pedestal
  • Steep density profile ? strong inward drift!

ELMs wash tungsten out!
High ELM frequency is required anyhow to reduce
load to target plates!
P. Lang et al., Nucl. Fusion 45
28
Influence of Anomalous Transport
A peaked density profile without strong anomalous
transport leads to strong tungsten accumulation.
Central heating overcompensates neoclassical
inward drift by anomalous transport!
A. Kallenbach et al., Plasma Phys. Control.
Fusion 47
29
Influence of Anomalous Transport
Anomalous transport induced by central heating
can easily overcompensate neoclassical inward
drift
Recent theoretical work no turbulent transport
mechanisms for strong high Z-ions inward drift!
C. Angioni, A.G. Peeters, Phys. Rev. Let. 96
In summary, one expects with a high probability
no peaked W concentration profiles in a burning
device!
30
W-concentration
Erosion and transport determine concentration.
AUG
W-concentration strongly depending on discharge
conditions!
31
Tungsten as First Wall Material in Fusion Devices
  1. Introduction
  2. Plasma Wall Interaction with Tungsten
  3. Edge and Core Transport
  4. Technological Developments Tungsten Coatings
    Massive Tungsten
  5. Summary

32
W-Coatings on Graphite
  • In present day devices with low particle
    fluencies W-coating on graphite is used
    - because of lower eddy and halo currents.
    - because of lower weight.

Different techniques are available, e.g.-
physical vapor deposition (PVD)- chemical vapor
deposition (CVD)- plasma spray (PS)
H. Maier et al., accepted for publ. in J. Nucl.
Mater.
33
W-Coatings on Graphite JET
  • In JET the ITER like wall project is under
    preparation.
  • The first wall will be partly covered with
    tungsten.

green Bered W-Coatingblue massive W
(probably) highly loaded areas 200µ sheath by
PSothers PVD
Highly loaded areas can be later replaced by
uncoated graphite!
34
Massive W-Structures JET
  • High particle fluencies (ITER, DEMO) massive
    W-structures are necessary.
  • They are castellated - because of eddy
    currents (JET)- because of different thermal
    expansion (ITER, DEMO).

FZJ
35
The ITER reference design
test at FZJ
36
DEMO
positive
negative
graphite low central radiation
high erosion radiation in
boundary tritium co-deposition
forgives overload
destruction by neutrons
tungsten low erosion
high central radiation no
tritium co-deposition accumulation in
centre resistant to neutrons
critical with overload

DEMO-generation
Is ITER DEMO-relevant? Can the first wall be
exchanged?
37
Developments for DEMO
Ductile to brittle transitiontemperature (DBTT)
high.Problem e.g. in W-steel-connections
He-cooled divertor (FZK)
Nuclear loads increase DBTT. Development of
W-alloys can reduce that problem.
38
Developments for DEMO
  • Surfaces with reduced load
  • A few mm tungsten sheets on EUROFER by PS or CVD

IPP, Petten. FZJ
39
DEMO Safety Issues
Loss of coolant and intense
air ingress formation of radioactive
WO3-compounds with high evaporation rate which
can leave hot vessel.
SEIF Study, EFDA-S-RF-1, April 2001
F. Koch, H. Bolt, subm. to Physica Scripta
40
Summary
  • In a fusion reactor, low-Z as a first wall
    material (graphite, Be) will have to be replaced
    by tungsten.
  • So far, plasma experiments have demonstrated that
    in most scenarios the tungsten erosion of the
    surfaces and its concentration in the central
    plasma can be kept sufficiently low.
  • In certain scenarios with high edge temperatures
    this may, however, not be the case.
  • In addition, the high erosion in the
    neighbourhood of an ICRH antenna needs particular
    attention.
  • As an intermediate solution, the coating of
    graphite with tungsten is an available
    technology.
  • Technological solutions for the highly loaded
    divertor targets in a fusion reactor are under
    development.
  • The relatively high ductile to brittle transition
    temperature, however, poses specific problems.

41
Summary
  • Altogether tungsten as the first wall material
    looks promising.

However, several open questions still remain to
be solved.
42
Reserve
43
Sources for W-Erosion ELMs
Erosion on target plates
44
Sources for W-Erosion ICRH
ASDEX Upgrade Localized measurement on
ICRH-antenna
Fast (lt 1ms) and localized increase ?
increase due to sheath rectified
E-fields
45
Transport in the H-Mode Pedestal
Argon seeding has to be well controlled!
46
  • Tungsten has 200 times larger conductivity than
    graphite,therefore eddy and halo currents
    larger.
  • Tungsten has 8.5 times larger mass density than
    graphite.
  • In case of low particle fluencies often
    W-coating on graphite are
    used.
  • Different techniques are available, e.g.-
    physical vapor deposition (PVD)- chemical vapor
    deposition (CVD)- plasma spray (PS)

47
Plasma Wall Interaction
  • Blistering

48
(No Transcript)
Write a Comment
User Comments (0)
About PowerShow.com
