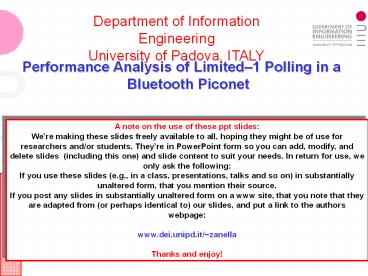

Department of Information EngineeringUniversity
of Padova, ITALY
Performance Analysis of Limited1 Polling in a
Bluetooth Piconet
A note on the use of these ppt slidesWere
making these slides freely available to all,
hoping they might be of use for researchers
and/or students. Theyre in PowerPoint form so
you can add, modify, and delete slides
(including this one) and slide content to suit
your needs. In return for use, we only ask the
followingIf you use these slides (e.g., in a
class, presentations, talks and so on) in
substantially unaltered form, that you mention
their source.If you post any slides in
substantially unaltered form on a www site, that
you note that they are adapted from (or perhaps
identical to) our slides, and put a link to the
authors webpage www.dei.unipd.it/zanella Thank
s and enjoy!

2
Department of Information EngineeringUniversity
of Padova, ITALY
Special Interest Group on NEtworking
Telecommunications
Performance Analysis of Limited1 Polling in a
Bluetooth Piconet
Daniele Miorandi, Andrea Zanella
daniele.miorandi, andrea.zanella_at_dei.unipd.it
CITSA05, Orlando, 14-17 July 2005
3
Outline of the contents

• Motivations Purposes
• Bluetooth Basic
• System Model
• Performance Analysis
• Concluding Remarks

4
What and Why

• Motivations Purposes

5
Motivations

• Analytical models for Bluetooth systems permit
• Performance estimation (packet delay statistics)?
• Buffer dimensioning (queue length statistics)?
• Segmentation and reassembly strategy (packet type
  selection)?
• Recently, some models have been proposed for
  simple scenarios with multi-slot packets
  Bruno,Misic
• Approximate delay estimation using M/G/1 queues
  with vacations
• Exact analysis for symmetric systems (equally
  loaded nodes) only
• Literature still lacks a mathematical model that
  takes into consideration multislot packets and
  asymmetric traffic load among nodes

6
Aim of the study

• Providing an approximate performance analysis in
  case of
• Use of multi-slot packets
• Asymmetric and unbalanced traffic matrix

7
What the standard says

• Bluetooth basic

8
Bluetooth piconet

• Two up to eight Bluetooth units sharing the same
  channel form a piconet
• In each piconet, a unit acts as master, the
  others act as slaves
• Channel access is based on a centralized polling
  scheme
• Full-duplex is supported by Time-division-duplex
  (TDD), with time slots of T0.625 ms

9
Multi-slot packets

• Data packets can be
• 1, 3, or 5 slot long
• Unprotected or 2/3 FEC protected
• Unprotected packet formats (DH)
• higher data capacity
• more subject to errors
• Protected packet formats (DM)
• medium data capacity
• higher protection against errors

10
Mathematical Model

• System Model for Ideal Channels

11
System Model

• Number of units
• N-1 slaves and 1 master
• System model
• 2N-2 interacting queues
• Traffic model
• Packets arrive at link i,j as a marked Poisson
  process of rate ?i,j and weights ?ij(l), l1,3,5
• Only single-hop communications
• Pure Round Robin (PRR)?
• One packet per queue is served per polling cycle
• Polling cycle has a random duration depending on
  the size of the packets found waiting at each
  queue-head

Downlink master queues (one per slave)?
N-1
Uplink slaves queues
12
Cycle Time
Queue service time (B0,1)?
Queue service time (B1,0)?
Bi,j part of the cycle time spent in serving
queue (i,j)?
Cycle Time (TC)?
TC time required to complete a polling cycle
Pi,j(0) probability of empty (i,j) queue
?i,j load factor of (i,j) queue
Littles law
13
Cycle Time Statistics

• According to the head of the queue packet type we
  have
• Empty queue Bij 1 slot (POLL or NULL packet)?
• DH1 or DM1 Bij 1 slot
• DH3 or DM3 Bij 3 slots
• DH5 or DM5 Bij 5 slots
• Taking expectations we get
• Average service time for (i,j) queue bijEBij
• Average cycle time
• Putting pieces together, we get a system of 2N-2
  equations

14
Average cycle time

• Solving the system we easily get

15
Delay time
Slave 1
Slave 1
Queue delay (Qij)?
Vacancy delay (Vi,j)?
Cycle Time (TC)?
Slave 2
Slave 2
Slave k
Slave k
Slave 1
Transmission time (Zi,j)?
Slave 2
Slave k
16
Packet Delay

• Let Wij be the access delay for link (i,j), i.e.,
  the time spent in the queue before entering the
  service
• The access delay Wij can be expressed as
  where
• Vi,j vacancy time
• time between the packet arrival and the instant
  the queue gets the service
• Qi,j queue delay
• time for getting rid of all the packets found in
  the queue
• Hence, the packet delay Dij for link (i,j) will
  be given by

17
Queue Delay

• The queue delay Qij can be expressed as follows
• where
• Li,j number of queued packets at the packet
  arrival epoch
• Uij(k) inter-visit time for the k-th queued
  packet at (i,j) queue
• time for getting rid of all the packets found in
  the queue
• NOTE Uij(k) is a special polling cycle, since it
  refers to the specific case in which at least a
  packet is waiting in the (i,j) queue
• Assuming Uij(k) to be independent of packet index
  k we get

Queue service time obtained with
18
Equivalent load factor

• Once again we get a system of equations
• that solves for

19
Laplace-Stieltjes Transform (LST)?

• Applying LST assuming delay components to be
  independent we get
• Packet service time
• Number of queued packets
• Queue delay
• Queue service time
• Inter-visit time
• Access delay

The LST of the vacancy time is still missing
20
Vacancy Time

• The LST of the vacancy time, Vi,j(s) can be
• either derived extending the method proposed by
  IbeCheng COMM89
• or approximated by applying the random look
  theory (much easier!)?
• This approximation allows to get a closed form
  expression of the average packet delay

21
Results (1)?

• We checked the accuracy of our approximated model
  for balanced scenarios, for which exact solution
  is known
• N4, ??(1)?(3)1/9, ?(5)7/9
• Queues are equally loaded
• Symmetric Traffic
• Remark the proposed model closely approximates
  the exact result also for high traffic loads

22
Results (2)?

• Balanced asymmetric scenarios
• N4, ??(1)?(3)1/9, ?(5)7/9
• Queues are equally loaded
• Download Traffic only
• Remark the accuracy of the proposed model is
  even more clear for asymmetric scenarios

23
Results (3)?

• Unbalanced scenarios
• N4, ??(1)?(3)?(5)1/3
• ?0,1 ?1,0 ?0,2 ?2,00.3
• ?0,3 ?3,0 0.9

24
Conclusions Future work

• Summary
• Simple mathematical model for ideal Bluetooth
  links with unbalanced load has been presented
• Average packet delay estimations given by the
  model closely approximates the exact results in
  balanced scenario, largely improving the models
  previously presented in the literature
• The model seems to offer rather good performance
  estimation also in unbalanced scenarios

• Next steps
• Model can be extended to error-prone links
• A fading channel model might be considered
• Remark this might exacerbate the interdependency
  among the queues, making the model less accurate

25
Thats all!

• Thanks for
• your attention!
