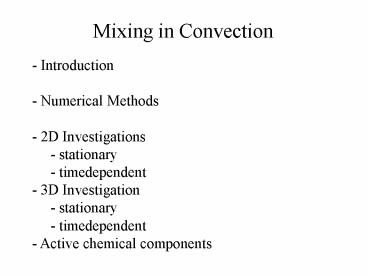

Mixing in Convection
- Introduction - Numerical Methods - 2D
Investigations - stationary -
timedependent - 3D Investigation -
stationary - timedependent - Active
chemical components
2
Numerical Methods for Investigating Mixing
- Mixing often studied on a case-by case
approach - Experiments - limited to
2D (mostly) - hard to quantify
- parameter range limited - Kinematic
flow fields - ABC flow, switching
vortex, ... very accurate
- good for identifying fundamental
processes -
not the 'real thing'
3
Numerical Methods for Investigating Mixing
- Mixing often studied on a case-by case
approach - Experiments - limited to
2D (mostly) - hard to quantify
- parameter range limited - Kinematic
flow fields - ABC flow, switching
vortex, ... very accurate
- good for identifying fundamental
processes -
not the 'real thing'
4
- Numerically solving the whole set of
equations - numerical errors
- easy to analyze - closer to
the 'real' thing - Three different
approaches - field
approach - tracer
approach - marker line
approach
5
Field approach
- solve a transport equation on a eulerian grid
using a standart method FD, FE, FV, spectral
.... - for convection problems equivalent to
temperature problem -
problem numerical diffusion
Values are given at grid-points
Inbetween values are approximated by function
-normally T is already the bottleneck
But good for active components
6
Tracer Method
- points are advanced using the precalulated
veolcity field v 3 steps 1st find
grid-cell the tracer is in - trivial for
equidistant grids or when the position of the
nodes is given by a function (e.g. Chebychev
pol.)
7
else (e.g. FE grid) - loop over
gridcells to check if tracer is inside
or Advanved search using Tree (quad-,
oct-tree)
or when timestepping fulfills CFL criteria
search only neighborhood
8
2nd Interpolate velocities within gridcells
- bi- (tri-) linear - higher order - splines -
depending of the spatial accuracy of the method
used for calculating v - for splines derivatives
can be precalculated at gridpoints good when
9
3rd Integrate tracers in Time
- Euler, Runge-Kutta (2nd , 4th order), ... -
when calculating tracers by postprocessing
velocity data interpolate velocities in
Time
gt DONE
10
How many tracers ? gt depends on the
statistics for 2D 10e5 .. 10e6 for 3D
.. more - but parallelization is trivial
11
Active tracers
2 possibilities - calculate stokes drag and
add velocity v to velocity field - good
for problems like crystal setteling -
tracer tend to glue together - calculate
concentratioin field from the tracer distribution
and use in solving equation of motion
12
3rd Marker chain method
- Advance tracer - if or check derivative gt
insert new tracer using spline - subdivision
scheme in 3D - calculating concentration field
using a 'IsInside' type method initially
very fast very accurate - for chaotic
flows
13
Comparison between methods
14
(No Transcript)
15
(No Transcript)
16
Different numerical methods - Conclusion
- discussed three different methods - all
methods give comparable results - using a field
approach is the fastest method - it suffers
from numerical diffusion - tracer approach is the
most flexibel - in order to reduce
statistical noise tracer count per element
has to be high - maker chain method is accurate
and computational cheap for short time-length
- for chaotic flows however the required time
increases exponentially in time
17
Mixing in Convection
Steady 2D convection - Hamiltonian system -
streamline is Hamiltonian
18
Steady 2D flows - surface area preserved - shear
19
Mixing in 2D time-periodic flows Aref (1984)
Blinking vortex flow
20
- even simple 2D time-periodic flows can exhibit
lagrangian chaos
21
2D time-dependent flows
- maintaines large-scale structure -
super-imposed boundary-layer-instabilities
(BLI's)
22
-mixes fast within one cell (c) -transport over
cell boundaries
23
Experiments Kinematic approach (SolomonGollub)

24
(No Transcript)
25
Higher Rayleigh number
- influence of the major up- and down-wellings
get less - more drop like instabilities - still
a large scale cirulation (shear flow) gt looking
at the Earth mantle with Ra gt 106 it
seems impossible to preserve chemical
heterogeneities over a long period of
time gt Earth mantle must have lateral
distincted reservoirs
26
3D Convective flows
- different stationary patterns - rolls -gt 2D -
square or spoke pattern
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
Multiple tracers. ..
31
- tracer is confined to one quarter of the box -
they move on the surface of differnt tori -
oszillate fast around the large diameter and slow
around the small diameter of the torus (approx.
110) - if the ratio - is a natural number the
streakline is closed - is a rational number the
streakline is flosed after n orbits - is a real
number the streakline is surface filling gt
analog to 2D flows ... but material is moving
from the cell interior to the boundary layers gt
no chaotic regions
32
Hexagonal patterns
33
(No Transcript)
34
Spherical geometry
35
Comparison with ABC flowsdefined by
For C0 - integrable
36
(No Transcript)
37
(No Transcript)
38
Conlucsion 3D statonary convection
Ferrachat Ricard
39
(No Transcript)
40
Conclusion Stationary convection
In the absence of a toroidal flow component -
tracer move on the surface of torii - the
symmetry planes of the temperature field confine
the torii - material is communicated between the
boundaries and the interia of the cell A
torodial flow component - can be generated by a
finite Prandtl number or by boundary
conditions - this leads to the coexistence of
regular and chaotic mixing regions - the
mixing efficiency is greatly enhanced by these
regions
41
Time-dependent convection
42
Movie
Text durch Klicken hinzufügen
43
(No Transcript)
44
(No Transcript)
45
High Raylaeigh numbers
46
(No Transcript)
47
Conclusion time-dep. Convection
- efficient mixing within a cell - cross cell
mixing on a much longer time scale - trajectories
have torus-like stucture - mixing efficiency much
reduced compared with 2D simulations
48
More realistic parameters- varable viscosity
The influence of plate motion on the
mixing process
49
(No Transcript)
50
(No Transcript)
51
Conclusion time-dep. convection with variable
viscosity

• Two different processes
• efficient mixing within a cell
• -large scale transport due to plate motion
  causing
• cell reorganization
• - enhanced mixing in direction of the plate
  motion
• - could eventually explain observed geochemical
• differences in MORB
• BUT
• very simple model which with many problems
