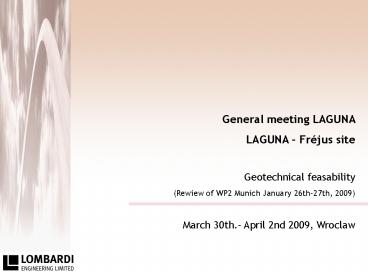

• General meeting LAGUNA
• LAGUNA Fréjus site
• Geotechnical feasability
• (Rewiew of WP2 Munich January 26th-27th, 2009)
• March 30th.- April 2nd 2009, Wroclaw

2
CURRENT SITUATION GENERAL PLAN
LSM Underground Laboratory Modane
Road tunnel
Railway tunnel
Longitudinal section
gt1500 m rock overburden
6,2 km
6,6 km
12.8 km
3
Geotechnical parameters of rock mass

• Unit weight 27 kN/m3
• Elastic modulus 15 GPa
• Poissons ratio 0.2
• Friction angle 35/40 (lower/mean value)
• Peak cohesion 3000 kPa
• Residual cohesion 2000 kPa (short term)
  500-750 kPa (medium term) 200-300
  kPa (long term)
• Plastic strain 0.5 (for reach residual
  cohesion)
• Dilation angle 3

4
Main characteristics of calc-schists

• Time-dependent behaviour of rock mass
  (displacements)
• Tendency to wedge instability on roof
• Anisotropy of rock mass properties (effect of
  schistosity)
• Reduction of rock mass strength after failure
• No water circulation in the rock mass (OK for
  cavern stability
• and thermal losses during reservoir operation)

5
Cavern design
LENA 221'000 m3
GLACIER 320'000 m3
MEMPHYS 558'000 m3
9 m
17 m
21.9
41.9
19 m
47.5
110 m
70 m
D76 m
D67 m
25 m
D35 m
6
Memphys 3D model (FLAC)
7
Memphys Displacements Long term
8
Memphys Failure zone Long term
9
Memphys Analysis of wedge stability
10
Large excavations at Frejus - Conclusions

• The construction of the large excavations for
  the 3 detector types of Laguna is feasible at
  Frejus site.
• For Glacier it is possible to built a unique
  large tank. The division into
• 2 smaller tanks can reduce the total
  construction costs of the caverns.
• For Lena it is not necessary to have curved
  walls
• The final lining should be placed at least 2-3
  months after the excavation
• in order to reduce the rock pressure in the
  long term (excavation from
• top to bottom, construction of final lining
  from bottom to top).

11
Interaction between tank and rock mass

• The stability of the rock mass during excavation
  is ensured by anchors and reinforced shotcrete
• The definitive cavern is sustained by a concrete
  lining.
• Glacier needs a inner, independent tank.
• The rock loads are supported by the concrete
  lining and will not be
• transferred on the steel tank.
• The water from the rock mass can cause an
  external load on the
• imperious tank (even if apparently the rock
  appears dry). To avoid this
• type of load, it is necessary to design an
  external drainage system.
• The earthquake is not a problem for the steel
  tank, if there is not an
• active fault crossing the cavern (atypical
  situation).

12
Location LAGUNA
Safety tunnel
Road tunnel
LAGUNA
Railway tunnel
13
LAYOUT (top view)
Access Tunnel
Control room, offices, storage, power
Safety Tunnel
Electronics
Air and water purification
Electronics
Road Tunnel
Electronics
14
LAYOUT (side view)
Air and water purification

• Safety Tunnel

Road Tunnel
Electronics
Electronics
Control room, offices, storage, power
Access Tunnel
15
LAYOUT
Access Tunnel
Safety Tunnel
Electronics
Air and water purification
Storage
Control room
Offices
Power
Electronics
Cables, piping etc
Electronics
