Physiological Anatomy of the

1

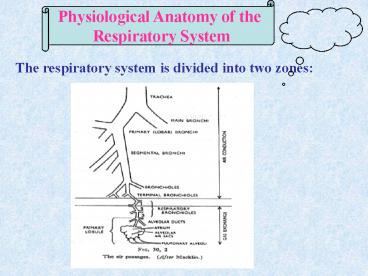

Physiological Anatomy of the Respiratory System
???????? ???????
The respiratory system is divided into two zones
2
I- The Conducting Zone
Includes nose, nasopharynx, larynx, trachea and
2 main bronchi one for each lung, and smaller
bronchioles.
Function of the conducting part

• Conducting air into the respiratory zone.
• Air conditioning
• Humidification
• Filtration
• Protective reflexes
• a- Sneezing reflex
• b- Cough reflex
• Non respiratory function

3
II- Respiratory Zone
Consists of respiratory units each of which
composed of respiratory bronchioles which
subdivided into alveolar ducts which end in
clusters of small thin walled air sacs called
alveoli
4
Respiratory Passages
1-The nose
The nasal cavity is subdivided into there zones
a) The vestibule b) The respiratory area C- The
olfactory area
5
The olfactory area is lined by olfactory mucosa
which consists of (A) Olfactory epithelium
consists of three types of cells
1- Sustentecular (supporting) columnar cells
2- Olfactory (sensory) cells
3- Basal cells (B) Corium
