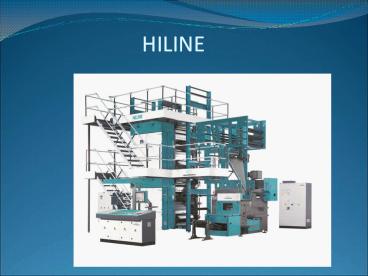

HILINE

1
HILINE
2
HILINE
3
HILINE

• Maximum Printing speed of 50,000 copies per hour.
• Combination of vertical and horizontal units in a
  single pressline.
• Horizontal and vertical web lead configuration
  for multi color paginations.
• Medium circulation around 100,000 to 150,000
  copies
• Modular configuration

4
HILINE
MAIN FEATURES
50,000 CPH Speed Horizontal and vertical
web leads Brush dampening System Taper
roller bearings for cylinders F 222 / F 1240
/ F233 Motorized registration as a
standard feature PLC controls
with auto tracking facility for ink -
water balance
5
HILINE
Main Aggregates
I and Y type print units with inbuilt
flying splicer for horizontal web
lead H print unit 4x4 Tower print
unit Folder up to 2nd fold for 6 webs (
222) Standalone flying splicer
6
HILINE
Basic Specifications

• Press Speed CPH
  50,000
• Cutoff mm. 533 , 546, 560, 578
• Web Width Max. mm. 915
• Min. mm. 700
• Web grammage gsm 38-60
• Non Printing Gap mm. 15
• Folders F222 F233 F1240
• Max No of webs 6webs/45000 upto12webs/
  45000 upto12 webs/45000
• Quarter Fold 4 webs / 30000 6 webs / 40000
  8 webs / 35000
• Double parallel fold 2webs/30000 5webs/40000
  not available
• Balloon Former 2webs/1 Balloon 4webs/2
  Balloons 6webs/2 Balloons

7
HILINE
Optional Units
Third fold JF 1240 Turner bar Bay
window Balloon former
8
HILINE
Optional Features
Manucolor remote ink zone control system
Close loop registration and cut-off control
Ink replenishment system Pneumatic plate
punching bending device Detachable shafts
between print units or between folder and print
unit
9
HILINE
Standard Accessories
Plate punching device Plate bending
device Hydraulic / mechanical web trolley
Screw compressor with air dryer Chilled
dampening solution circulation system
10
PRINT UNIT VERTICAL WEB LEADS
I Type
Y - Type
PRINT UNIT HORIZONTAL WEB LEADS
11
HILINE
INKING SYSTEM
DAMPENING SYSTEM
12
FEATURES
HORIZONTAL WEB LEAD UNIT Autopaster is
integrated with print unit. Mechanical clutch
for decoupling the drive to print unit.
Bustle wheels to minimise fan-out problems
during four colour printing. VERTICAL WEB
LEAD UNIT Reverse stack arrangement for better
printability. Concave roller at the entry of
the 4 Hi tower unit to minimise Fan-out.
Motorised bustle wheel to minimise fan-out
problem. Web catchers at the entry and exit of
the 4 Hi tower unit. Easy connectability of
vertical web lead and horizontal Web lead units.
13
HILINE
FLYING PASTERS
AP 6050
AP 4542
FEATURES
Two Arm flying paster for automatic reel
change Pneumatically operated reel clamping
shafts Stand alone autopaster has a close
loop tension control system having digital
display facility for actual tension and set
tension.
14
HILINE
FOLDERS
F 233
F 222
F 1240
Designed upto 12 webs Production 48 pages
broadsheet 96 pages Tabloid. 6webs/2 balloons
Designed upto 6 webs Production 24 pages
broadsheet 48 pages Tabloid. 2 webs/1 balloon
Designed upto 12 webs Production 48 pages
broadsheet 96 pages Tabloid. 4webs/2 balloons
15
HILINE
INSTALLATION
8 4 Hi Towers 8 standalone Reel splicer 2 Folder
(F1240) with Balloon Former Shaftless BFA System
8 4 Hi Towers 8 AR 70 Right Angled Reel Splicer
at Drive Side. 2 Folder (232). Heat Set package.
UNITED PRINTING PRESS , ABUDHABI
16
HILINE
INSTALLATION
5 4 Hi Towers 5 standalone AP 2 Folder (222).
17
HILINE
PRESTIGIOUS INSTALLATIONS
CUSTOMER COUNTRY
ULTIMATE PRINT MALAYSIA
UNITED PRINTING PUBLISHING ABUDHABI , UAE
MWANANCHI COMMUNICATION TANZANIA
LA SENTINELLE MAURITIUS
OTEMPO BRAZIL
DAR AKHBAR AL KHALEEJ BAHRAIN
THE TIMES OF INDIA INDIA
WIJEYA NEWSPAPERS SRI LANKA
AKHBAR AL ARAB U.A.E
KOURIER FIRM LC ST PETERESBURG , RUSSIA
MARKBLADET SWEDEN
18
REACH US
For more details on the Manugraph
presses. Please contact The Sales
Department. MANUGRAPH INDIA LIMITED. Sidhwa
House, N. A. Sawant Marg, Colaba, Mumbai 400
005 INDIA. Tel [phone] Fax
910222287 0702 Email sales_at_manugraph.com Websi
te www.manugraph.com
