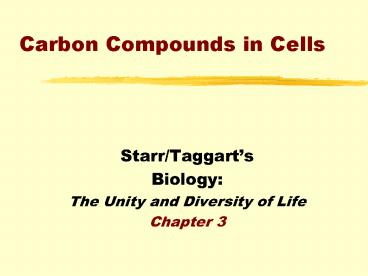

Carbon Compounds in Cells

1
Carbon Compounds in Cells

• Starr/Taggarts
• Biology
• The Unity and Diversity of Life
• Chapter 3

2
Key Concepts

• Organic compounds have carbon atoms to which
  hydrogen, oxygen, nitrogen, and other atoms are
  attached
• Cells put together large biological molecules,
  such as carbohydrates, lipids, proteins, and
  nucleic acids
• Glucose and other simple sugars are carbohydrates

3
Key Concepts

• Complex carbohydrates are polysaccharides
• Lipids dissolve in nonpolar compounds
• They include neutral fats, phospholipids, waxes,
  and sterols
• Cells use carbohydrates and lipids as building
  blocks and as their major energy source

4
Key Concepts

• Proteins have many roles forming structures,
  enzymes, transporters, body defenses, and help in
  movement
• ATP is crucial in metabolism. DNA and RNA are the
  basis of inheritance and reproduction

5
Carbon

• Can form covalent bonds with up to four other
  atoms

6
Carbon
Carbons versatile bonding
7
Hydrocarbons and Functional Groups

• Hydrocarbons
• Hydrogen atoms attached to a carbon backbone
• Functional Groups
• Single or cluster of atoms covalently bonded to
  the carbon backbone
• Hydroxyl (OH-)
• Amino (NH2)
• Phosphate (PO4)

8
Examples of Functional Groups
9
How Cells Use Organic Compounds

• Enzymes
• Mediate reactions
• Speed up the rate
• Classes of Reactions
• Functional-group transfer
• Electron transfer
• Rearrangement
• Condensation
• Cleavage

10
Condensation and Hydrolysis

• Condensation
• Two molecules
• combine
• Hydrolysis
• A molecule
• splits into two
• smaller ones

11
The Molecules of Life

• Living cells synthesize
• Carbohydrates chains of simple sugars
• Lipids chains of fatty acids (except sterols)
• Proteins chains of amino acids
• Nucleic acids chains of nucleotides

12
Carbohydrates

• Contain an aldehyde or a ketone group and one or
  more hydroxyl groups
• Main types
• Monsaccharides
• Oligosaccharides
• Polysaccharides

13
Carbohydrates

• Monosaccharides
• 6 Carbon sugars
• Glucose
• Fructose
• Galactose
• 5 Carbon sugars
• Deoxyribose
• Ribose

14
Carbohydrates

• Oligosaccharides
• Disaccharides
• Sucrose
• Lactose
• Maltose
• Formed by condensation
  reactions

15
Carbohydrates

• Complex
• Polysaccharides
• Starch
• Cellulose
• Glycogen
• Chitin

16
Lipids

• Largely hydrocarbon
• Do not dissolve in water
• Dissolve in nonpolar substances
• Lipids with fatty acids
• Glycerides
• Phospholipids
• Waxes
• Lipids with no fatty acids
• Sterols

17
Fatty Acids

• Carbon backbone
• Carboxyl group (- COOH)
• Unsaturated
• One or more double bonds in backbone

• Saturated
• All single bonds in backbone

18
Triglycerides

• Neutral fats
• Three fatty acids
  and a glycerol
• Condensation
  reaction
• Bodys most abundant
  lipid
• Functions
• Energy reservoir
• Insulation

19
Phospholipids

• Glycerol backbone
• Two fatty acid tails (hydrophobic)
• Phosphate-containing head (hydrophilic)
• Main materials of cell membranes

20
Sterols

• Sterols
• No fatty acid tails
• Four carbon rings
• In eukaryotic cell membranes
• Cholesterol in animals tissues
• Vitamin D
• Steroids (hormones)
• Bile salts

21
Waxes

• Long-chained fatty acids linked to alcohols or
  carbon rings
• Cover plant parts
• Help conserve water
• Fend off parasites
• Animals
• Protect
• Lubricate
• Impart pliability to skin and hair
• Repel water

22
Amino Acids and the Primary Structure of Proteins

• Proteins
• Enzymes
• Structures
• Transport
• Nutritious
• Hormones
• Immune system
• Proteins are made from a pool of 20 amino acids

23
Structure of Amino Acids

• Central carbon atom
• An amino group
• A carboxyl group
• A hydrogen atom
• One or more atoms
  R Group

24
Structural Formulas for Some Amino Acids
25
Structural Formulas for Some Amino Acids
26
Peptide Bond Formation

• A type of condensation reaction

27
Second Level of Protein Structure

• Hydrogen bonds
• Helical coiling
• Sheet-like pattern

28
Third Level of Protein Structure

• Additional folding of secondary structure
• R Group interactions
• Hydrogen bonds
• Disulfide bridges

29
Fourth Level of Protein Structure

• Two or more polypeptide chains joined by
• Weak bonds (Hydrogen bonds)
• Covalent bonds between sulfur atoms and R groups
• Collagen
• Keratin
• Hemoglobin

30
Structure of Hair

• Keratin
• Fibrous structural protein

31
Structural Changes by Denaturation

• Disruption of three-dimensional shape of protein
• Changes in temperature and pH
• Loss of function
• Some proteins have organic compounds attached
• Glycoproteins
• Lipoproteins

32
Nucleotides and The Nucleic Acids

• Nucleotides
• Sugar
• Ribose or Deoxyribose
• Phosphate group
• Bases
• Single or double carbon rings with nitrogen
• Subunits of coenzymes
• NAD and FAD
• ATP
• Energy source for chemical reactions

33
Structure of ATP

• ATP
• Three phosphate groups

34
Nucleic Acids - DNA and RNA

• Building blocks
• Four kinds of
  nucleotides
• Differ only in component bases

35
Single Strand of Nucleic Acid

• A series of
• covalently
• bonded
• nucleotides

36
DNA

• Double stranded
• Hydrogen bonds between strands
• Twisted helically
• Four kinds of nucleotide monomers (A, T, C, G)
• Encodes protein-building instructions

37
RNAs

• Single stranded
• Four kinds of nucleotide monomers (A, U, C, G)
• Do not encode protein-building instructions
• Key players in the protein-building processes
• mRNA, tRNA, rRNA

38
In Conclusion

• Organic compounds have elements covalently bonded
  to carbon atoms
• Living cells assemble organic compounds lipids,
  carbohydrates, proteins, and nucleic acids
• The building blocks are amino acids, nucleotides,
  simple sugars, and fatty acids
• Complex carbohydrates are energy storage forms
  and structural materials

39
In Conclusion

• Lipids are used as energy storage and structural
  components
• Proteins are made of amino acids. They form
  structures, enzymes, transport, movement, and are
  part of the immune system
• Nucleic acids are the basis of inheritance and
  reproduction
