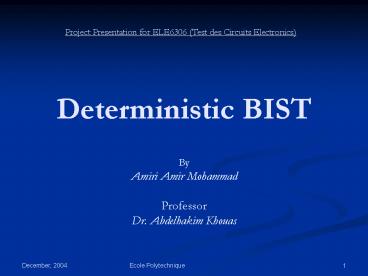

Deterministic BIST

1
Deterministic BIST
Project Presentation for ELE6306 (Test des
Circuits Electronics)

• By
• Amiri Amir Mohammad
• Professor
• Dr. Abdelhakim Khouas

2
Deterministic BIST

• Schemes To Discuss
• I. DBIST Schemes Based On Reseeding of LFSR
• A. General DBIST Scheme
• B. Implicit Encoding (Re-ordering Of Patterns)
• C. Implicit Encoding(Reordering 2Of Test cubes
  next-bit)
• II. DBIST Schemes Using Internal Patterns
• A. Bit-Flipping BIST (BFF)
• B. Improved BFF BIST (SMF)
• III. Others
• SMF with Multiple Scan
• DBIST with TPI

3
BIST OVERVIEW

• PRPG
• Random patterns by LFSR with P(x)
• Signature Analysis by MISR
• Large number of Patterns to achieve FC
• Delay performance issues
• Deterministic
• Complex Algorithms
• Increased Complexity for larger and complex
  circuits
• Many patterns needed to achieve desired FC
• Delay and Costly

4
Deterministic BIST

• What?
• Improved BIST scheme
• Why?
• Increase FC in Scan-Based Design
• Improve test application time and performance
• How?
• Random Patterns Deterministic
• Initially random patterns
• Generated by Internal LFSR
• Random resistant faults not detected
• Followed by Deterministic Patterns
• Generated by ATPG
• Tend to detect hard-to-detect faults (random
  resistant)

5
I. DBIST (LFSR Reseeding)

• A. General Scheme
• k-bit MP-LFSR Programmable
• 2k distinct patterns
• x primitive polynomials gt x different sequences
  of patterns depending on initial value (seed)
• ATPG-generated deterministic pattern encoded into
  n-bit word
• q-bit gt Poly. Id (2q Polynomials)
• (n - q) bit gt LFSR seed
• m-bit Scan Register

6
I. DBIST (LFSR Reseeding)

• Behavior
• LFSR loaded with seed value
• Poly ID identifies FeedBack configuration
• LFSR output bits serially shifted into the Scan
  Register in m-clocks
• Generated pattern consistent with encoded
  deterministic pattern
• Original Test Cube - - 0 0 - - - 1 - 0
• Generated pattern 1 1 0 0 101 1 0 0

7
I. DBIST (LFSR Reseeding)

• Encoding Of Test Cubes
• Size of seed depends on number of carebits in
  Test Cube C
• carebit gt specified bit either 1 or 0, not x
• A set of test cubes T C1, C2,, Ci
• S(Ci) indice of carebits in test cube Ci
• s(Ci) Number of carebits in test cube Ci
• smax(T) maximum number of specified bits in
  set T
• Example T C1 , C2 , C3
• C1 x1xx0x11xx , C2 xxx10xx1xx, C3
  0x1xxxx0xx
• S(C1) 2 , 3 , 5 , 8 s(C1)4 s(C2)3 s(C3)
  3 smax(T) 4
• ai consistent with ci
• ci ai (a(0). Mi )1 (a(0).Mi-k1 )k
• Companion matrix M

8
I. DBIST (LFSR Reseeding)

• Encoding Of Test Cubes (continued..)
• To encode C into a seed a
• Solving s(C) system of non-linear equations in
  terms of seed variables(a0, , ak-1) polynomial
  coefficients (p0,,pk-1 ), obtained from
• Two way to solve
• 1. Fixing seed variables, and finding the
  corresponding P(x)
• System of non-linear equations (complex to solve)
• 2. Fixing P(x), and finding seed variables
• Simpler to solve
• Less computation time in general
• If no solution with P1(x), choose next polynomial
• average of polynomials analyzed slightly
  greater than one

9
I. DBIST (LFSR Reseeding)

• Example Given P (x) x4 x3 1
• p01 p10 p20 p31
• C x 1xx 0xx 11x gt S(C) 1,2,5,8 and s(C)
  4.
• For each index i in S(C), calculate a(0). Mi

i k (M i-k1 )k ci a(0)k
1 1 M1 1 1 a0
2 2 M1 2 1 a1
5 3 M33 0 a2
8 4 M54 1 a3

• (M i-k1 )k Calculated for each i and k
• Subscript k indicates kth position in the set of
  seed variables a(0)

10
I. DBIST (LFSR Reseeding)

• Only 4-bit encoding for 10 bit test cube
• (4 q)-bit stored in Memory

11
I. DBIST (LFSR Reseeding)

• General Scheme
• Efficient Encoding
• Probabilistic Analysis show Very high probability
  of successfull encoding with s 4 bits ( 16
  polynomial LFSR )
• Area Overhead
• N Patterns gt N x (s q) bits of storage
• Control Logic For configuration
• Optimization possible in terms of storage area

12
I. DBIST (LFSR Reseeding)

• B. Implicit Encoding Scheme (1)

• Modified Reseeding Scheme
• Re-ordering of Test Cubes
• Reduced Storage Size
• No storage for poly id
• Periodic Operation
• Mod-p counter
• p is the period of the sequence of polynomials (p
  feedback polynomials)
• Addition of Random Patterns to complete periods
• High Computational Effort

13
I. DBIST (LFSR Reseeding)

• B. Implicit Encoding Scheme (1) (Continued..)
• Periodic Operation Example
• T C1, C2, C3, C4 set of Polynomials P(C)
  where P (Ci) contains all the polynomials that
  can generate Ci
• P (C1) p1, p4, P (C2) P (C3) p1, p2, p3,
  p4 P (C4) p2, p3
• p1 and p2 can generate all the patterns
• (C1, C2) by p1 (C3, C4) by p2
• Therefore ( C1, C2, C3, C4 ) Implies Sequence of
  Polynomials (p1, p1, p2, p2)
• Re-ordering (p1, p2, p1, p2) gt ( C1, C3, C2,
  C4 ) minimum period 2
• adding random patterns to make perfect ordering
  not necessary (i.e counter can be stopped in last
  period at any time)
• Can insert more polynomial from P(Ci ) at the
  expense of AREA

14
I. DBIST (LFSR Reseeding)

• B. Implicit Encoding Scheme (1) (Continued..)
• Issue
• achieve a re-ordering of the polynomials such
  that all the test cubes are covered, and so by
  having a sequence of polynomials with minimum
  period
• Therefore Need An Algorithm to reduce the list
  of test cubes generated by each polynomial and
  hence reduce period
• TestCube Compaction
• To improve time of test application and the
  efficiency of encoding
• Techniques
• Simplification Removal of Ci from T if Ci is a
  subsets of Cj
• Merging consistent test cubes combined such
  that s(mrg(C1C2Ci)) s(T) is met.
• Concatenation CiCjCz if s(concat(..))
  s(T)

15
I. DBIST (LFSR Reseeding)

• B. Implicit Encoding Scheme (1) (Continued..)
• TestCube Compaction (Example)
• Simplification And Merging

16
I. DBIST (LFSR Reseeding)

• B. Implicit Encoding Scheme (1) (Continued..)
• TestCube Compaction (Example..)
• Concatenation

• Only 3 encoding needed as opposed to 4.
• Therefore, Reduced Encoding and consequently
  improved time of test application can be obtained

17
I. DBIST (LFSR Reseeding)

• B. Implicit Encoding Scheme (2)

• Modified Reseeding Scheme
• Re-ordering of Test Cubes
• Reduced Storage Size
• Seed grouping
• Storage required for Next-bit
• q-bit counter
• Each state of Counter correponds to a feedback
  configuration
• No Balancing needed in the number of seeds
• (smax 1) x N storage for N patterns

18
II. DBIST Scheme Using Internal Patterns

• A. Bit Flipping BIST (BFF) (Continued..)

• Pattern mapping
• Useless random patterns converted into
  deterministic
• BFF block is combinational and responsible to
  flip an output bit of LFSR at particular states
  of LFSR

19
II. DBIST Scheme Using Internal Patterns

• A. Bit Flipping BIST (BFF) (Continued..)

• Efficient Mapping
• Pr and Pd with minimum humming distance
• Minimum cost (least number of minterms)
• Random Pattern Pr
• Pr f ( LFSR states )
• On-set(Pr) Modifiable bits
• Off-set(Pr) fixed bits (consistent with Pd )
• Fix-set
• On-, Off-, Fix-sets contain LFSR states
• s0, s1, , s k-1

20
II. DBIST Scheme Using Internal Patterns

• A. Bit Flipping BIST (BFF) (Continued..)

• BFF function
• Constructed iteratively starting with BFF0 ending
  with BFFR in R iterations
• At each iteration r ( 0 r R )
• New Pd embeded in BFF
• More Hard-to-detect faults coverd
• New set of Hard-to-detect faults F identified
• Final BFFR covers all faults
• Fix0 set of LFSR states, whose random patterns
  detect some faults

21
II. DBIST Scheme Using Internal Patterns

• A. Bit Flipping BIST (BFF) (Continued..)

• Example 3-bit LFSR, 5-bit Scan Register, F
  f1, f2, f3, f4, f5, primitive P (x) generating
  s0-s6 as below.

• Assume P1 11xxx and P2 0xx1x Covering f1, f2,
  f3
• Fix1s5, s6Fix2s3, s6and Fix0 Union(Fix1,
  Fix2 s3 , s5 , s6

s0 010
s1 001
s2 100
s3 110
s4 111
s5 011
s6 101
s7 s0 010

• BFF0 Ø and Fix0 s3 , s5 , s6
• A determinstic pattern Pd 11 x 01 covering f4,
  f5
• Hence, need to map Pd onto a Pr in the list

Pattern LFSR states
1 01001 s0, s1, s2, s3, s4
2 11010 s5, s6, s0, s1, s2
3 01110 s3, s4, s5, s6, s0
4 10011 s1, s2, s3, s4, s5
5 10100 s6, s0, s1, s2, s3
22
II. DBIST Scheme Using Internal Patterns

• A. Bit Flipping BIST (BFF) (Continued..)

• Example (cont..)
• on-set and off-set for all Pr w.r.t (Pd 11 x
  01)
• Candidates for mapping Pd P1, P2, P4. Why not
  P3, P5 ?
• P1 chosen, because minimum cost (humming distance
  least of minterms )
• New BFF Union BFF0, on-set (Pd, P1) s0
• New FIX FIX1 Union FIX0, on-set (Pd , P1),
  off-set (Pd , P1) s0, s1, s3, s4, s5, s6

23
II. DBIST Scheme Using Internal Patterns

• A. Bit Flipping BIST (BFF) (Continued..)

• Minimizing BFF by considering s0 (on-set
  elements) only

• New LFSR patterns gt
• Pd 11 x 01
• P1 11xxx P2 0xx1x
• Randomly modified

24
II. DBIST Scheme Using Internal Patterns

• B. Improved BFF (SMF)

• Extension of BFF
• Improves Area Overhead
• Autocorrelation between random patterns
• 1111- 0111-1011-1101-1110
• SMF f ( LFSR states, Bit-counter bits,
  Pattern-counter bits)
• Same procedure as BFF to get SMF function, except
  state variables are different

25
II. DBIST Scheme Using Internal Patterns

• B. Improved BFF (SMF) (continued..)

• Example Given 2-bit LFSR with P(x) with states
  as below, test length 6, 5-bit Scan Register, and
  need to generate
• Pd1 00010 , Pd2 00011

• Looking at the table
• Minimum of 2 bits need to be modified for a
  chosen Pr

26
II. DBIST Scheme Using Internal Patterns

• B. Improved BFF (SMF) (continued..)

• Example (continued.. )
• Pd1, Pd2 are similar
• Pd1 maps onto P1 (minimum cost)
• On1 ( Pd1 , P1 ) 000 000 01, 010 000 01
• Off1 ( Pd1 , P1 ) 001 000 10, 011 000 01, 100
  000 10
• logic minimization similar to BFF
• SMF1 xx0 xxx x1
• covering all terms of On1 ( Pd1 , P1 ) but none
  of Off1 ( Pd1 , P1 )
• Fix1 Union On1 ( Pd1 , P1 ) , Off1 ( Pd1 ,
  P1 )
• To map Pd2, repeated P1 (P4) is the candidate

27
II. DBIST Scheme Using Internal Patterns

• B. Improved BFF (SMF) (continued..)

• SMF1
• With the new table, only 1-bit modification
  possible for mapping Pd2
• On2( Pd2 , P4) 100 011 10
• Off 2(Pd2 , P4) 000 011 01, 001 01110, 010 011
  11, 011 011 01 and FIX2 Union Fix1, Off
  2(Pd2 , P4) , On2( Pd2 , P4)
• SMF2 xx0 xxx x1, xx0 xx1 xx b0. (p0 t0)

28
II. DBIST Scheme Using Internal Patterns

• B. Improved BFF (SMF) (continued..)

• SMF2

Original Pattern SMF1 SMF2
10110 can1 00010 00010
11011 01010 01110
01101 01000 01000
10110 00010 can2 00011
11011 01010 01010
01101 01000 11000

• Pd1 and Pd2 mapped efficiently with only two
  minterms

29
II. DBIST Scheme Using Internal Patterns

• B. Improved BFF (SMF) (continued..)

• Efficiency of the SMF over PRPG

Circuit S-path length(n) Reseeding mm2 BFF mm2 Area mm2
s420 34 0.344 0.063 0.057
s641 54 0.344 0.063 0.052
s713 54 0.344 0.063 0.051
s838 66 0.533 0.100 0.090
s953 45 0.308 0.063 0.050
s1196 32 0.335 0.067 0.057
s1238 32 0.332 0.063 0.057
s5378 214 0.423 0.081 0.078
s9234 247 0.944 0.544 0.448
s3207 700 0.730 0.193 0.158
s15850 611 0.918 0.331 0.327
s38417 1664 1.896 1.733 1.492
s38584 1464 0.770 0.577 0.294
s2670 157 0.734 0.279 0.220
s7552 206 0.987 0.517 0.384
Circuit Random FC SMF FC Area ( of LFSR-32)
s838 66.92 95.92 41.6
s9234 90.63 91.51 66.4
s13207 93.83 96.38 43.8
s15850 94.58 97.25 43.8
s38417 93.41 93.62 46.9
s38584 98.71 98.93 43.8
s2670 88.26 89.19 76.0
s7552 96.29 97.05 78.2

• High FC compared to PRPG for
• Less Area than the 32-bit register used for PRPG
  for the same FC
• Less Area than BOTH (BFF and General)

30
III. Others Schemes

• SMF with Multiple Scan

• Improvement over single-scan SMF
• Breaking one large scan register into several
  scan registers
• Reduced time of test application (less FFs)
• Similar Synthesis process as single scan SMF ,
  except at logic minimization step
• Patterns feed several scan paths
• Pd can map onto any path

31
III. Others Schemes

• DBIST Schemes

• DBIST with TPI
• BFF combined with TPI (Test point insertion)
• Improves
• Random testability
• Controllability and Observability
• 100 FC achieved with less area

32
VI. Conclusion

• DBIST Schemes

• Reseeding of LFSR
• General DBIST Scheme
• High FC
• Efficient Encoding ( Less computational effort
  for encoding of seeds)
• Storage Area Overhead (seed poly id )
• Implicit Encoding (1)
• High FC
• Less Storage Area mod-p counter needed
• More Computational effort needed for encoding of
  seeds
• Re-ordering needed added Random Patterns for
  balancing
• Implicit Encoding (2)
• High FC
• next-bit p-bit counter (for p polynomials of
  LFSR)
• No balancing problem, hence no random patterns
  need to be added

33
VI. Conclusion

• DBIST Schemes

• Internal Pattern Generation
• BFF
• High FC
• Pattern Mapping
• Less Area Overhead (No Storage required)
• Synthesis process
• SMF (single scan design)
• High FC
• Pattern Mapping
• Furthre improve BFF for area overhead (
  reduced-size LFSR )
• Synthesis Process
• SMF with Multiple Scan Register
• improved time of test Application

34
Questions?
